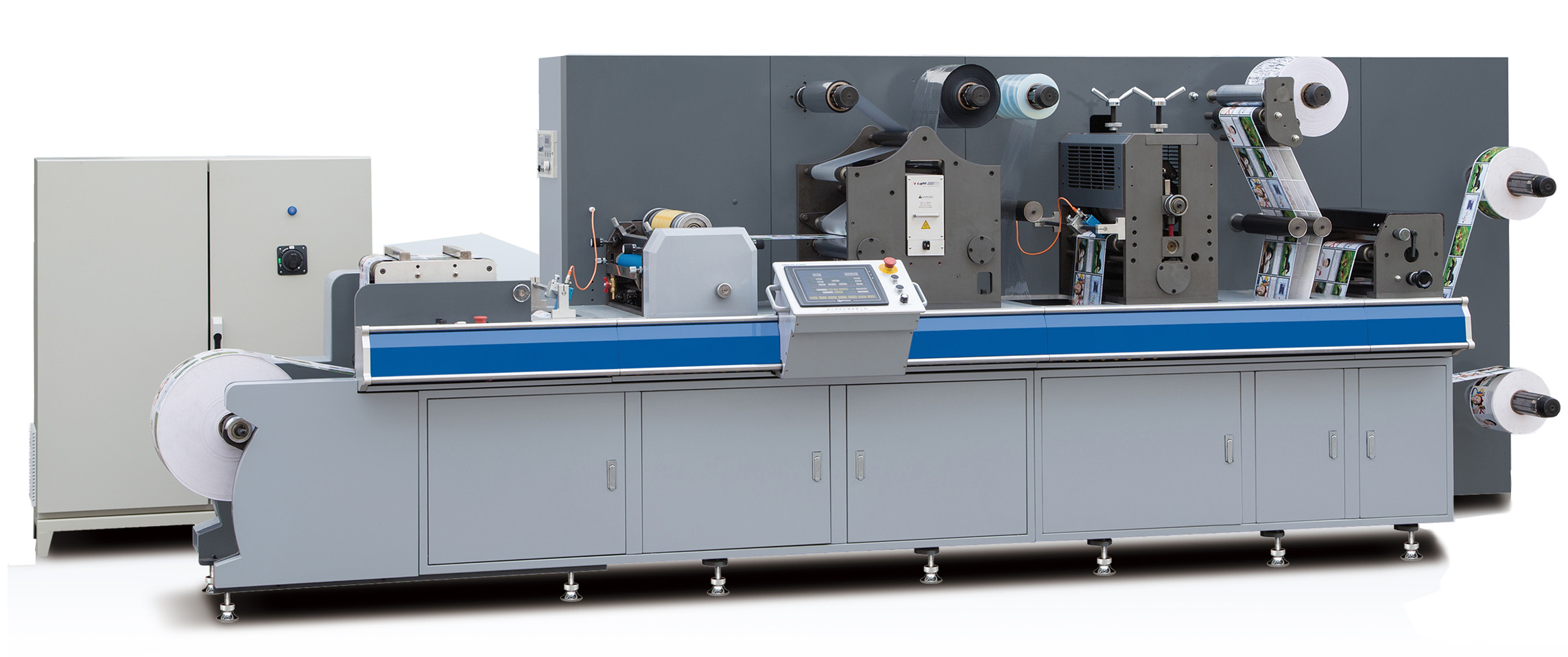

ZM-320 ROTARY/SEMI-ROTARY LABEL DIE CUTTING MACHINE

Introduction:



ZM-320 rotary/semi-rotary label die cutting machine is new developed converting machine equips with inline slitter. This machine adopts lastest Rexrtoh-Bosch( Germany) servo and control system include:unwinder web-guider lamination register die cutter slitter and rewinder.

The register die-cutting system is our patent product it can be full rotary or semi-rotary die cutter accoridng to the production requirement

When semi-rotary die cutter the tension among unwinder web guider and rewinder will be the same (different from traditional intermittent type) the material will not run away during the die cut. Semi-rotary die cutting unit adopts one big magnetic cylinder if you hanve different applications the only job is to change the flexible die.

ZM320 machine has the characteristic of fast speed super accurate easy operation high efficiency and less cost. It's good for all kind of label die-cutting jobs include short run to long run.

If the job is large quantity, then you can change the magnetic roller accordingly, it will highly increase the die-cutting quality and output.

ZM-320 rotary/semi-rotary label die cutting machine committes to make the maximum profit for you. It's an ideal converting machine for the printing house.


Technical parameter:





Max die cutting speed (rotary)120m/min



Max die-cutting speed(semi-rotary)65m/min



Max die cutting length(rotary)190.5-539.75mm



Max die-cutting length (semi-rotay)100-350mm



Max die-cutting width300mm




Max web width320mm



Max unwinder dia700mm



Max. rewinder dia600mm



Die-cutting accuracy±0.1mm



Slitting width≧20mm



Power supply380V   3P



Weight2400Kg



Dimension3.22x1.68x1.66m




Machine configuration:

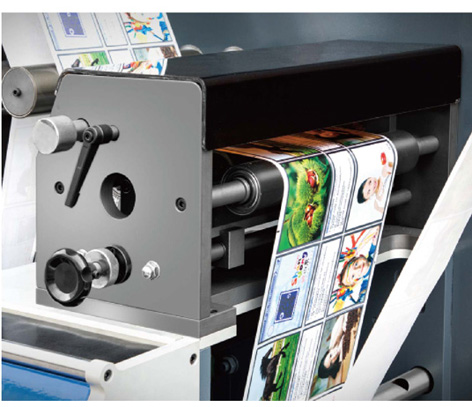

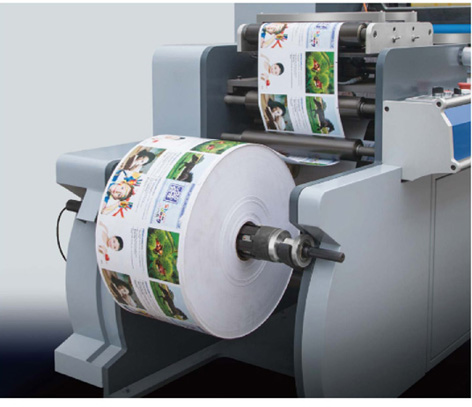

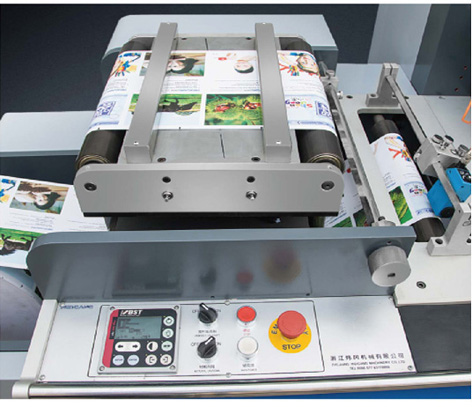

Unwinder with pnuematic liftBST web-guider

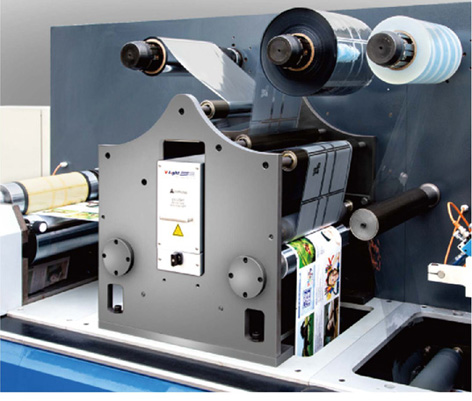

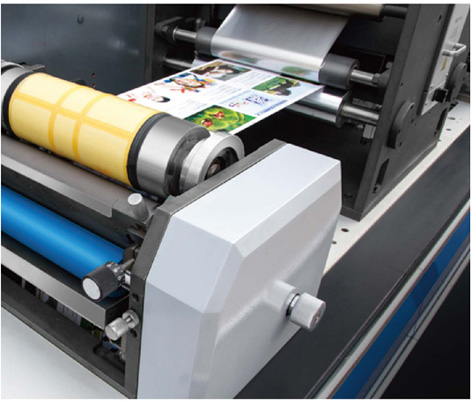

Flexo(varnishing) unitCold stamping unit

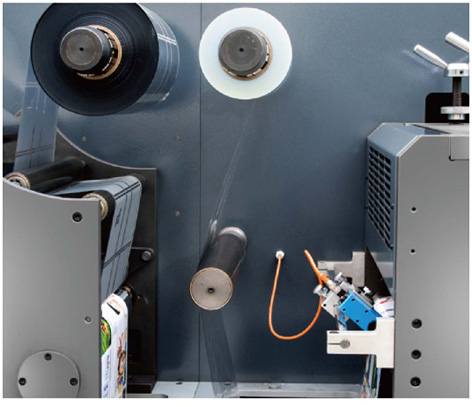

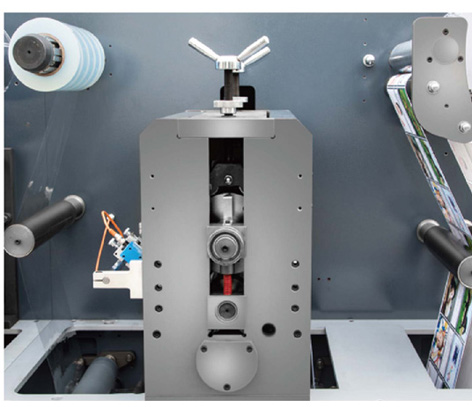

Lamination unitDie-cutting unit

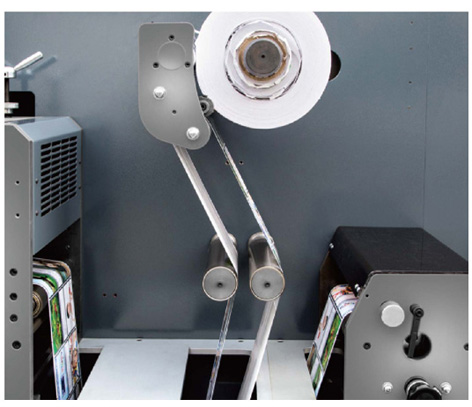

Slitting unitMatrix unit

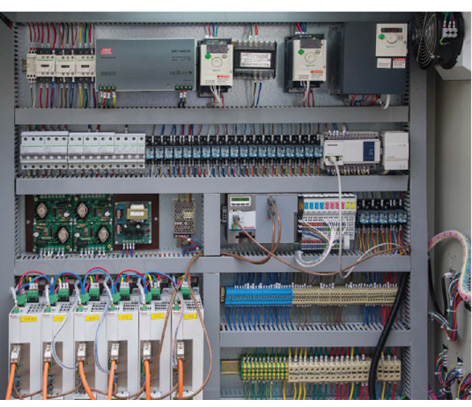

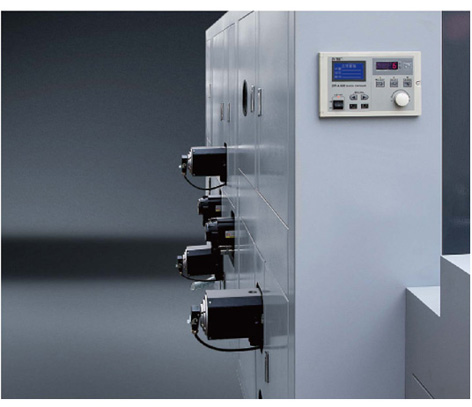

Fully servo shaftless driving systemGermany bosch rexroth control system
