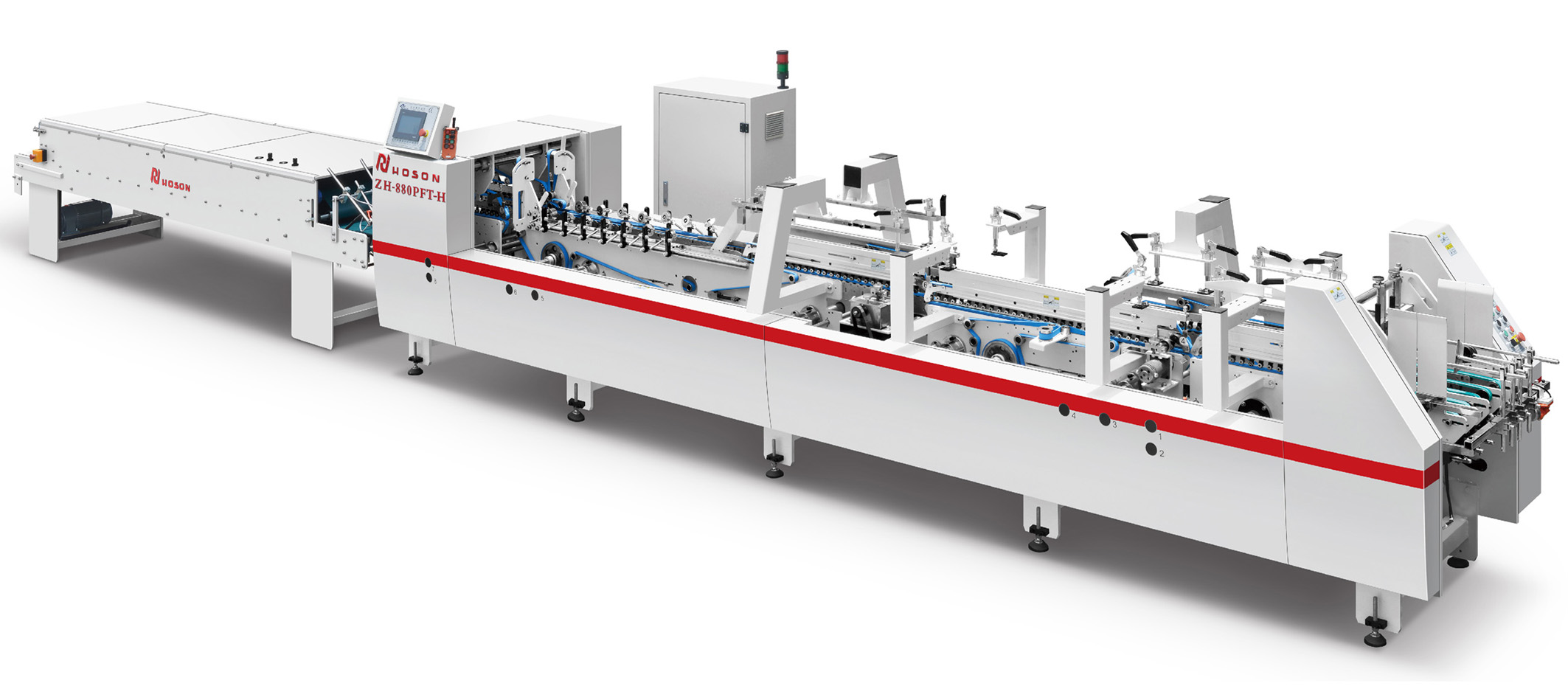

1. The machine is running steady with strengthened driving system and it is also easy for maintenance.

2. The motor is controlled by transducer(inverter) which are available for automatic timing. It is power saved and it helps to work stably.

3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous exact and automatic with this system.

4. Grinder are provided in both sides of machine, to make gluing more stable and firm.

5. The machine is able to fold and glue straight line boxes. In the pre-folding part, the first fold at 180o, the third fold at 135o The second fold and the fourth fold box at 180o

6. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc is able to set by this system. Counting through photo-electric sensor & electromagnet kicking.

7.Pressing unit with pneumatic design. And the upper belt is able to work separately. Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

8.Small box like out-put size at 30mm is able to be done after the special design according to customer requirement.

9. This model is upgraded to be a high speed model with a reinforced body. The main equipments are: Schneider Electric/PLC/Transducer Japanese Nitta Belt, Japanese bearing etc.

10. The machine max speed up to 300m/min

Technical parameter:

A Max 580mm780mm980mm1050mm1150mm1380mm1600mm
A Min 110mm150mm220mm300mm300mm300mm350mm
B Max 580mm600mm750mm780mm850mm900mm900mm
B Min 70mm100mm200mm200mm200mm200mm500mm
Max speed 300m/min300m/min300m/min300m/min300m/min300m/min300m/min

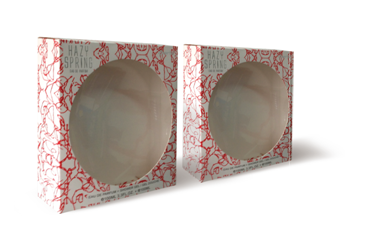

    Straight line box
