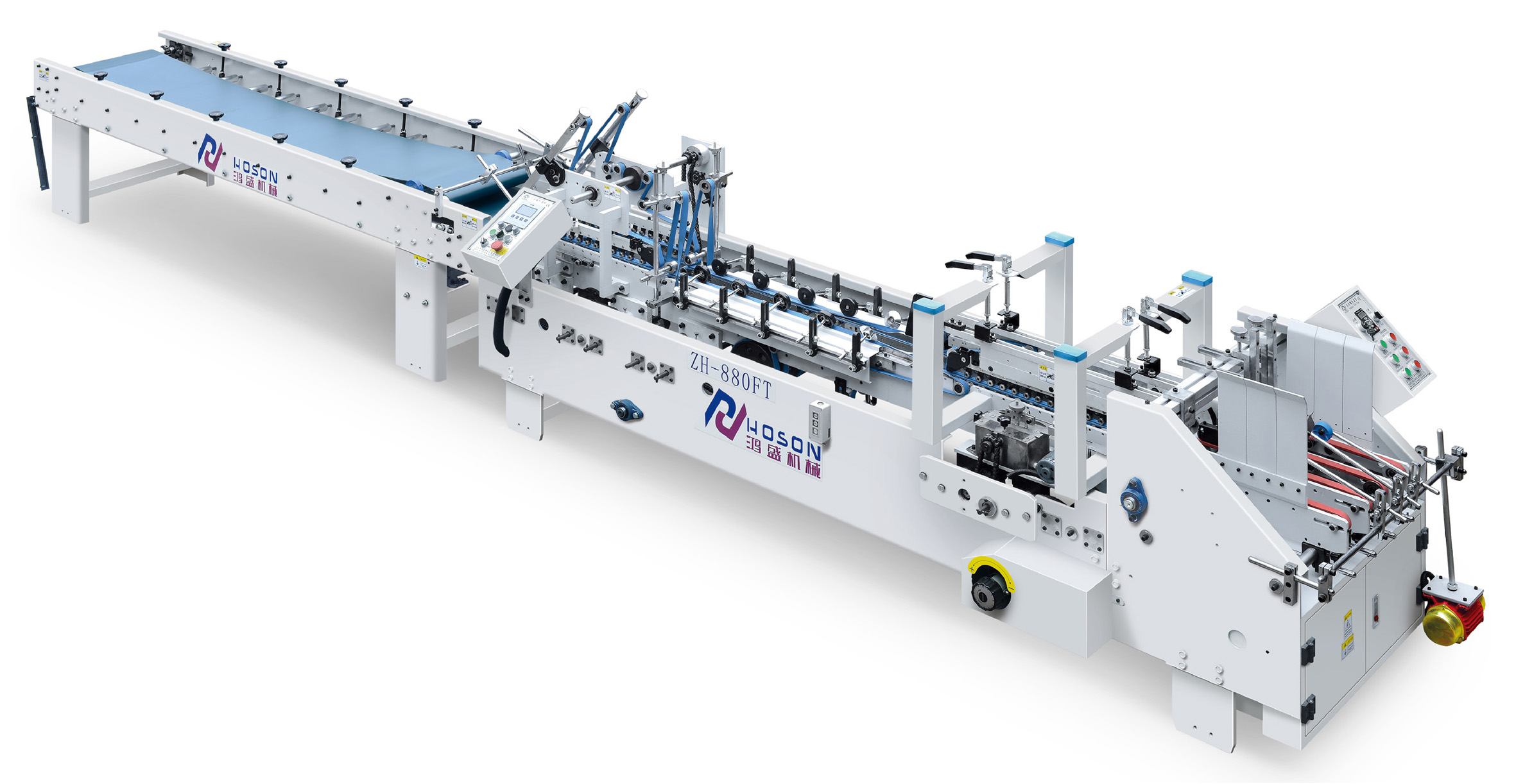

1. The machine is running steady with strengthened single-side driving system and it is also easy for maintenance.
2. The motor is controlled by a transducer(inverter)which is available for automatic timing. It is power saved and it helps to work stably.
3. Paper is feed by several thick belts under the help of vibration motor.Feeding is continuous, exact and automatic with this system.
4. Grinders are provided in both sides of machine to make gluing more stable and firm
5. An infrared photo-electric control system is in this machine. Pressing unit and counter will work synchronously with the feeding speed.Machine will slow down and stop running when no sheet there to reduce waste.
6. Small box like out-put size at 35mm is able to be done after the spcial design.
| Model | ZH-880FT | ZH-1000FT | ZH-1200FT | ZH-1300FT | ZH-1400FT | ZH-1600FT | ZH-1800FT |
| A Max | 580mm | 780mm | 980mm | 1050mm | 1150mm | 1380mm | 1600mm |
| A Min | 110mm | 150mm | 220mm | 300mm | 300mm | 300mm | 350mm |
| B Max | 580mm | 600mm | 750mm | 780mm | 850mm | 900mm | 900mm |
| B Min | 70mm | 100mm | 200mm | 200mm | 200mm | 200mm | 500mm |
| Max speed | 160m/min | 160m/min | 160m/min | 160m/min | 160m/min | 160m/min | 160m/min |
| Power | 2.4kw | 6.0kw | |||||
| Weight | 1150kg | 1350kg | 2550kg | 3800kg |
Straight line box
