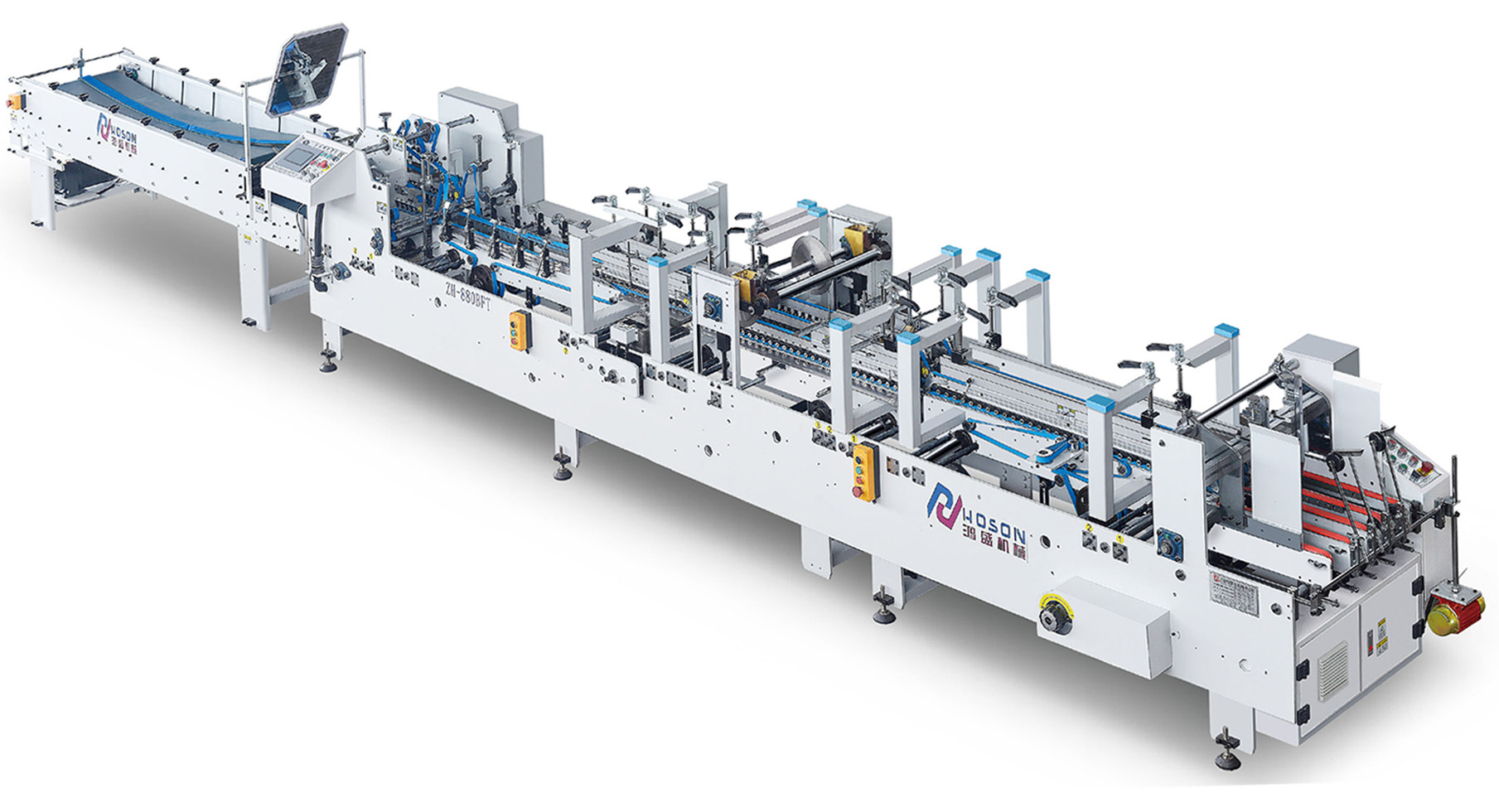

ZH-880BFT BOTTOM LOCK TYPE FOLDER GLUER

Introduction:


1. The machine is running steady with strengthened driving system and it is also easy for maintenance.

2. The motor is controlled by transducer(inverter) which are available for automatic timing. It is power saved and it helps to work stably.

3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous exact and automatic with this system.

4. Grinder are provided in both sides of machine, to make gluing more stable and firm.

5. Two sets of gluing units: top unit for bottom glue and lower unit for side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.

6. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc is able to set by this system. A remote diagnosis helps to maintenance( remote controller system included) and a photoelectric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.

7. Back delivery unit use pressing sponge belts for pressing to ensure out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

8. The machine is able to make 2 fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold at 180o, the third fold at 135o The second fold and the fourth fold box at 180o

9.Small box like out-put size at 30mm is able to be done after the special design according to customer requirement.


Technical parameter:




ModelZH-880BFTZH-1000BFTZH-1200BFTZH-1300BFTZH-1400BFTZH-1600BFTZH-1800BFT
A Max 520mm700mm850mm1020mm1080mm1380mm1520mm
A Min 210mm210mm300mm300mm300mm350mm500mm
B Max 580mm600mm750mm780mm850mm900mm900mm
C  Min 80mm120mm150mm150mm150mm300mm300mm
D Min 30mm30mm50mm50mm50mm50mm50mm
E Min 85mm85mm125mm125mm125mm125mm125mm
F  Min 30mm30mm40mm50mm50mm50mm50mm
Max speed 200m/min200m/min200m/min200m/min200m/min200m/min200m/min
Power6.0kw
10.0kw



Weight2500kg
6200kg






Crash-lock bottom box



ModelZH-880BFTZH-1000BFTZH-1200BFTZH-1300BFTZH-1400BFTZH-1600BFTZH-1800BFT
A Max 580mm780mm980mm1050mm1150mm1380mm1600mm
A Min 110mm150mm220mm300mm300mm300mm350mm
B Max 580mm600mm750mm780mm850mm900mm900mm
B   Min 70mm100mm200mm200mm200mm200mm500mm
Max speed 200m/min200m/min200m/min200m/min200m/min200m/min200m/min
Power6.0kw
10.0kw



Weight2500kg
6200kg





 Straight line box

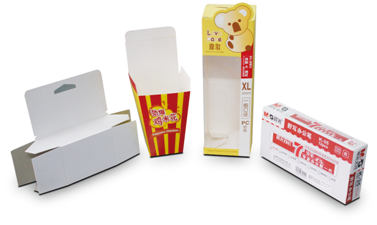

Sample:
