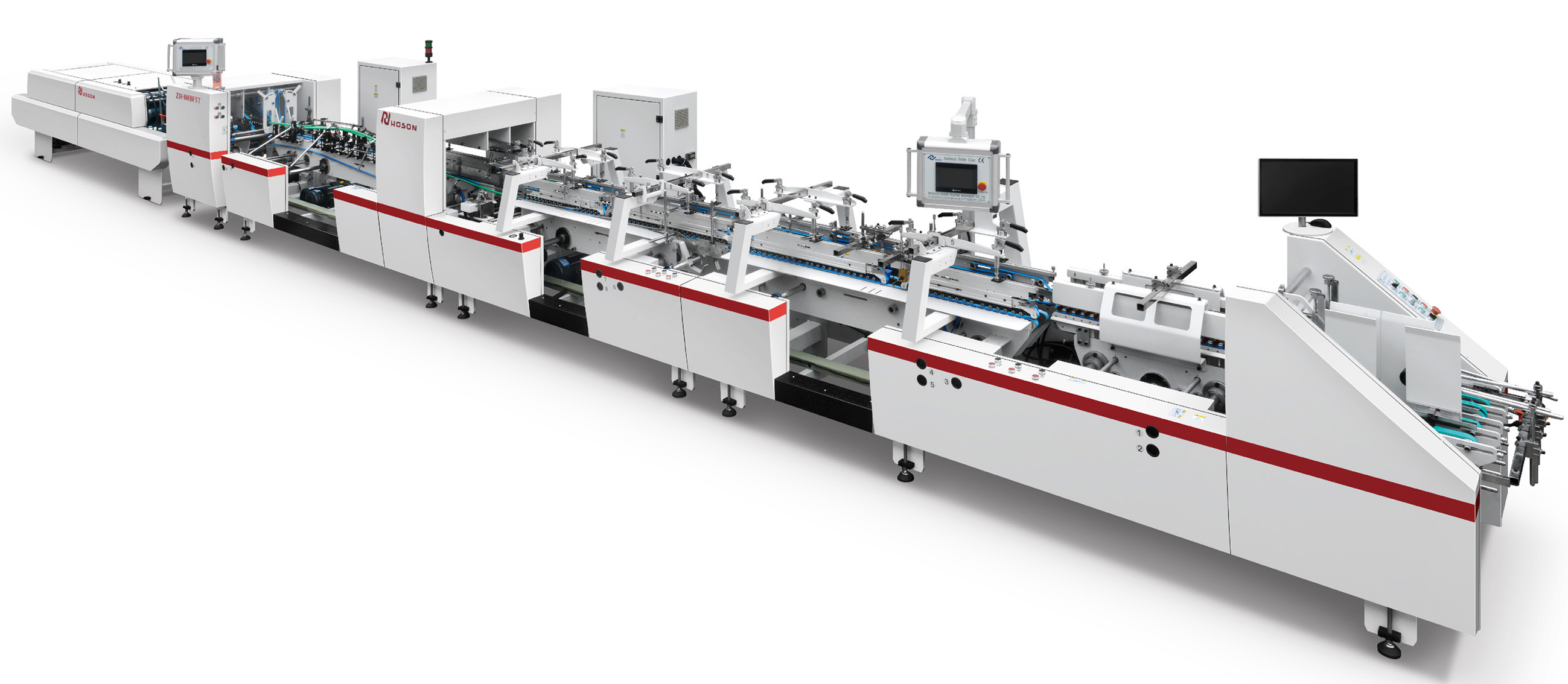

ZH-880BFST AUTOMATIC 4/6 CORNER TYPE FOLDER GLUER

Introduction:



1. The machine is running steady with strengthened driving system and it is also easy for maintenance.

2. The motor is controlled by transducer(inverter) which are available for automatic timing. It is power saved and it helps to work stably.

3. An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system

4. Feeder is controlled by a servo motor with suction. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous exact and automatic with this system.

5. Grinder are provided in both sides of machine, to make gluing more stable and firm.

6. Two sets of gluing units: top unit for bottom glue and lower unit for side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods

7. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc, the customer can choose this configuration. A remote diagnosis helps to maintenance (remote controller system included)  and a photoelectric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit) Counting through photo-electric sensor & electromagnet kicking.

8. Pressing unit with pneumatic design. And the upper belt is able to work separately. Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

9. In the pre-folding part, the first fold at 180o, the third fold at 135o The second fold and the fourth fold box at 180The correction section helps paper running and folding in the right line.

10. Special parts for this type: three-gun cold glue spray system from HHS Baumer (hot-melt for option) servo system form Yaskawa.

11. Belts in the main part of the machine are imported.


Technical parameter:



ModelZH-880BFSTZH-1000BFSTZH-1200BFSTZH-1300BFSTZH-1400BFSTZH-1600BFSTZH-1800BFST
A Max 480mm600mm800mm900mm1000mm1200mm1400mm
A Min 320mm320mm320mm320mm320mm400mm400mm
B Max 550mm600mm650mm700mm750mm800mm800mm
B Min 150mm150mm150mm200mm200mm260mm260mm
C Max 100mm100mm100mm100mm100mm100mm100mm
C Min 30mm30mm30mm30mm30mm30mm30mm
Max Speed 280m/min280m/min280m/min280m/min280m/min280m/min280m/min
Power13.2kw
13.2kw
13.2kw17.2kw
Weight6600kg
8300kg
8600kg9200kg




6-Corner collapsible box


ModelZH-880BFSTZH-1000BFSTZH-1200BFSTZH-1300BFSTZH-1400BFSTZH-1600BFSTZH-1800BFST
A Max 480mm600mm800mm900mm1000mm1200mm1400mm
A Min 260mm260mm260mm280mm280mm300mm300mm
B Max 550mm600mm650mm700mm750mm800mm800mm
B Min 150mm150mm160mm200mm200mm260mm260mm
C Max 100mm100mm100mm100mm100mm100mm100mm
C Min 30mm30mm30mm30mm30mm30mm30mm
Max Speed 280m/min280m/min280m/min280m/min280m/min280m/min280m/min
Power13.2kw
13.2kw
13.2kw17.2kw
Weight6600kg
8300kg
8600kg9200kg




4-Corner collapsible box





Three nozzles
