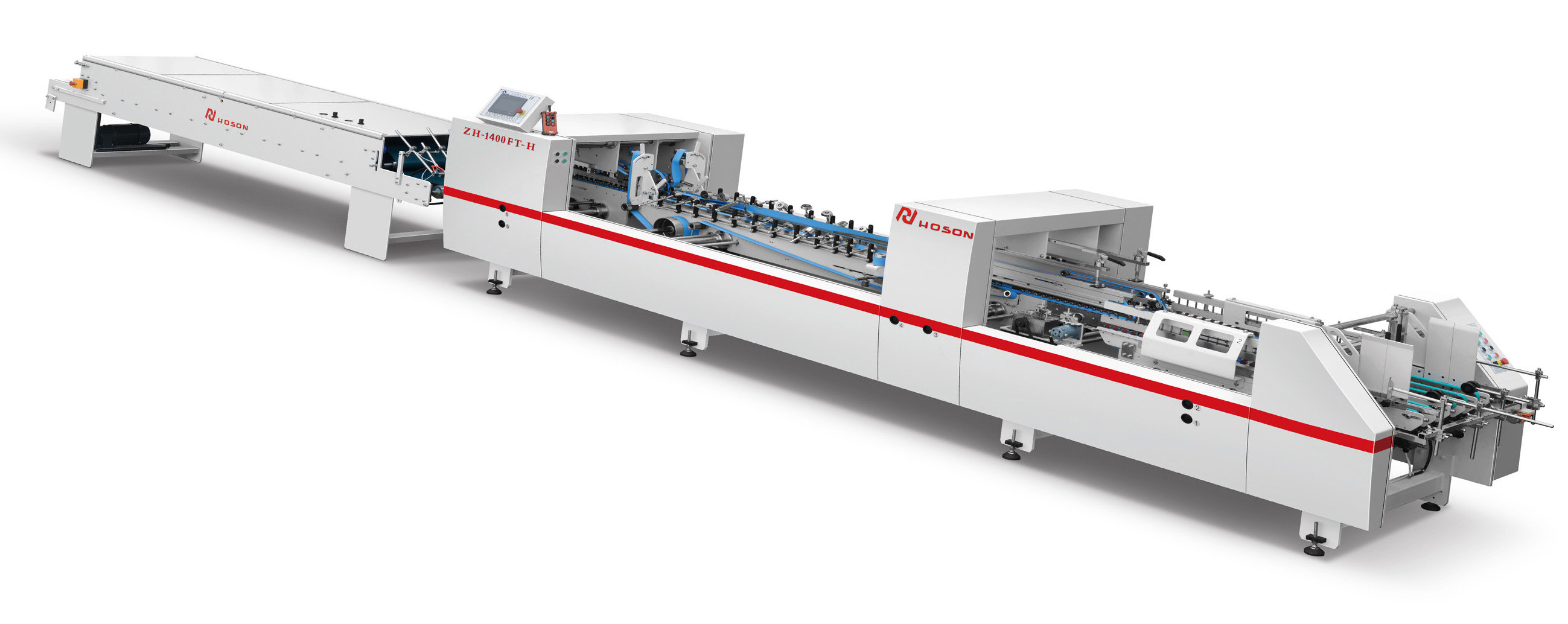

ZH-1400FT-H TWO FOLD TYPE FOLDER GLUER

Introduction:

1. The machine is running steady with strengthened driving system and it is also easy for maintenance.

2. The motor is controlled by transducer(inverter) which are available for automatic timing. It is power saved and it helps to work stably.

3.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous exact and automatic with this system.

4. Grinder are provided in both sides of machine, to make gluing more stable and firm.

5. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc is able to set by this system.

6. This model is in special design with a correction unit for the corrugated box (E/B flute) We equip good sare parts on machine: Schneider electric/PLC Japanese Nitta belts and Japanese bearings.

7. To make the un-symmetric folding corrected, an option of separate governor which can control speed in each side solely is offered to the corrugated board products in folding section.

8. Pressing unit with pneumatic design.And the upper belt is able to work separately. Pressing also by a sponge belt in this section to keep out put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

9. An option for paper feeding length of 1.2m is available after the special design.

Technical parameter:

Straight line box
