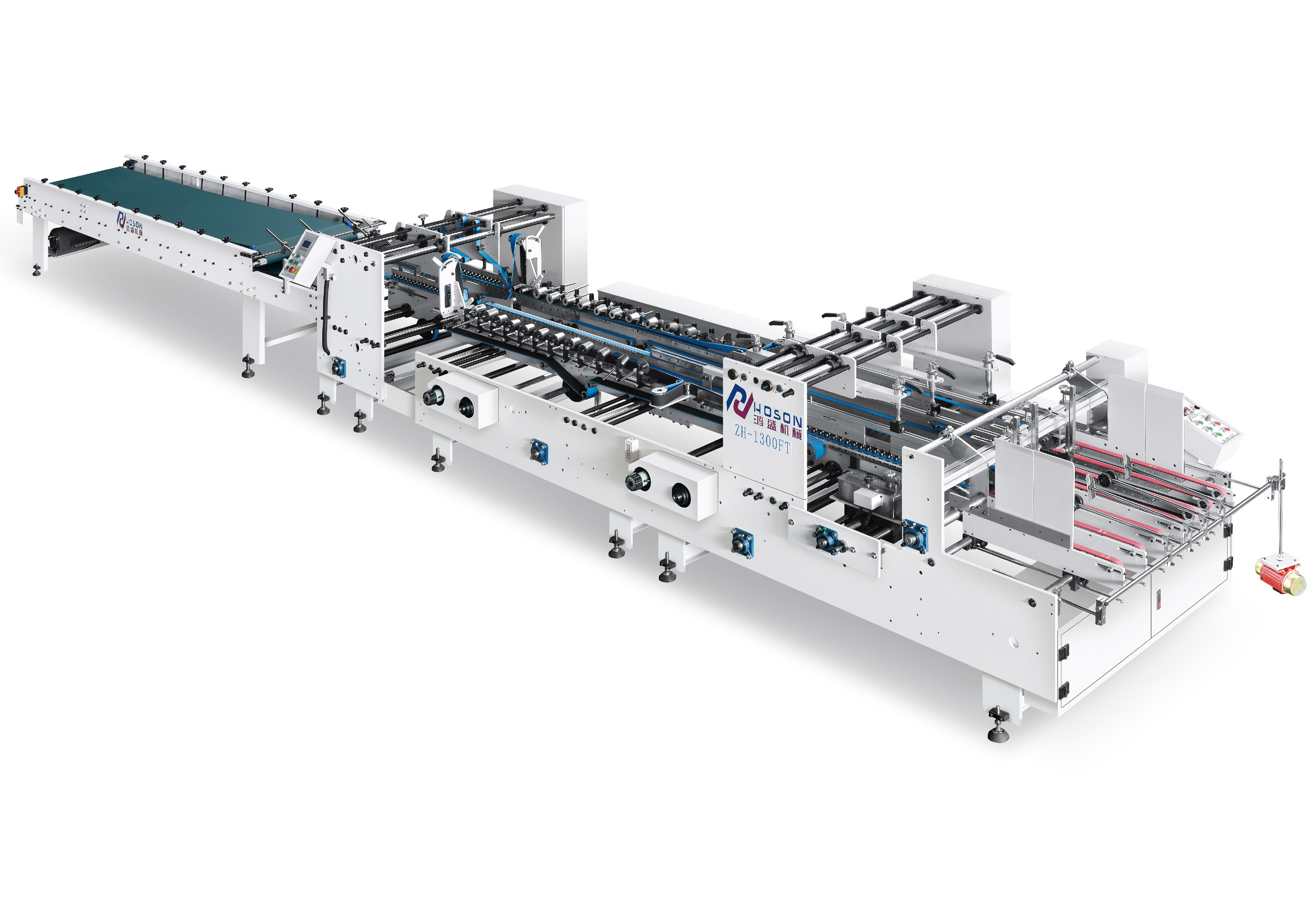

ZH-1300FT TWO FOLD TYPE FOLDER GLUER

Introduction:



1.The machine is running steady with strengthened driving system and it is also easy for maintenance.

2.The motor is controlled by transducers(inverter) which are available for automatic timing. It is power saved and helps to work stably.

3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.

4. Grinders are provided in both siders of machine to make gluing more stable and firm.

5. An infrared photo-electric control system is in this machine. Pressing unit and counter will work synchronously with the feeding speed. Machine will slow down and stop running when no sheet there to reduce waste.


Technical parameter:




ModelZH-880FTZH-1000FTZH-1200FTZH-1300FTZH-1400FTZH-1600FTZH-1800FT
A Max580mm780mm980mm1050mm1150mm1380mm1600mm
Min110mm150mm220mm300mm300mm300mm350mm
B Max580mm600mm750mm780mm850mm900mm900mm
Min70mm100mm200mm200mm200mm200mm500mm
Max speed160m/min160m/min160m/min160m/min160m/min160m/min160m/min
Power2.4kw


6.0kw

Weight1150kg


3800kg

Dimension6.1*1.1*1.4m


10*1.6*1.6m



Straight line box
