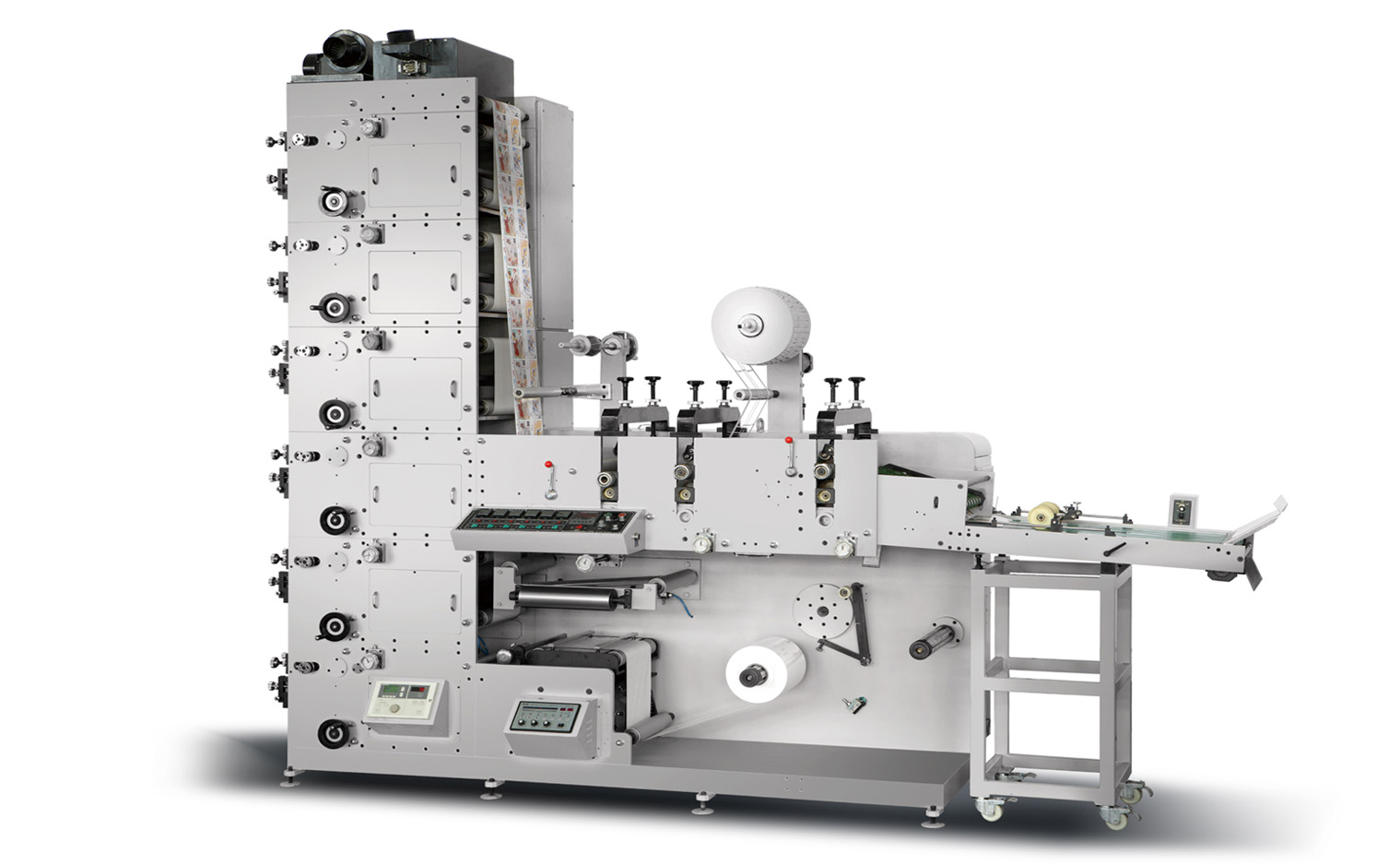

ZBS-320G LABEL FLEXOPRINTING MACHINE WITH THREE DIE CUTTING STATION

Introduction:

1．Adopt the ceramic anilox cylinder to transfer the ink.
2．Each printing unit adopts 3600 plate-adjustment.

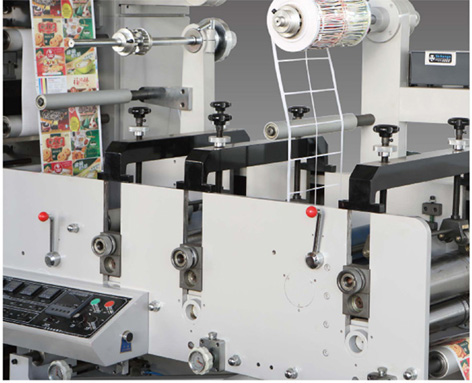

3．Three die-cutting stations, the first and second die-cutting station can do double sides working,the third die-cutting station can be used as sheeter.

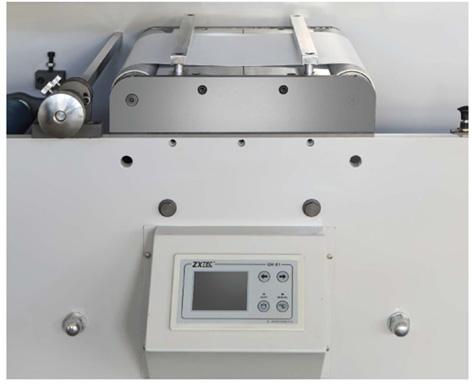

4．Computerized web-guiding system is installed in the front of print-ing unit, it ensures the material always in the right position.(standard configuration)

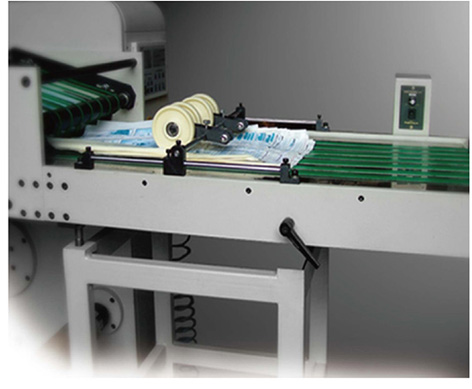

5．After sheeting in the third die-cutting station, conveyor belt can output the products orderly.(option)
6．Unwinding and rewinding tension are auto-controlled by magnetic power,two rewinders is possible in this machine.
7．Video inspecting system is an optio=n, it can watch the printing quality when in high speed.
8．The ink rollers will be separated from the printing roller, and keep running when the machine stops.
9．Main machine inverter is imported.
10．The machine can finish material-feeding, printing, varmishing, drying, laminating, die-cutting, rewinding and sheeter in a lump. It is an ideal machine for printing note and top-grade adhesive label.

Technical parameter:

Machine configuration:

Three rotary die-cutting stations	Unwinding and rewinding tenstion are auto-controlled by magnetic powder
Web-guider

Option items:

Sheeter conveyer	UV dryer system
