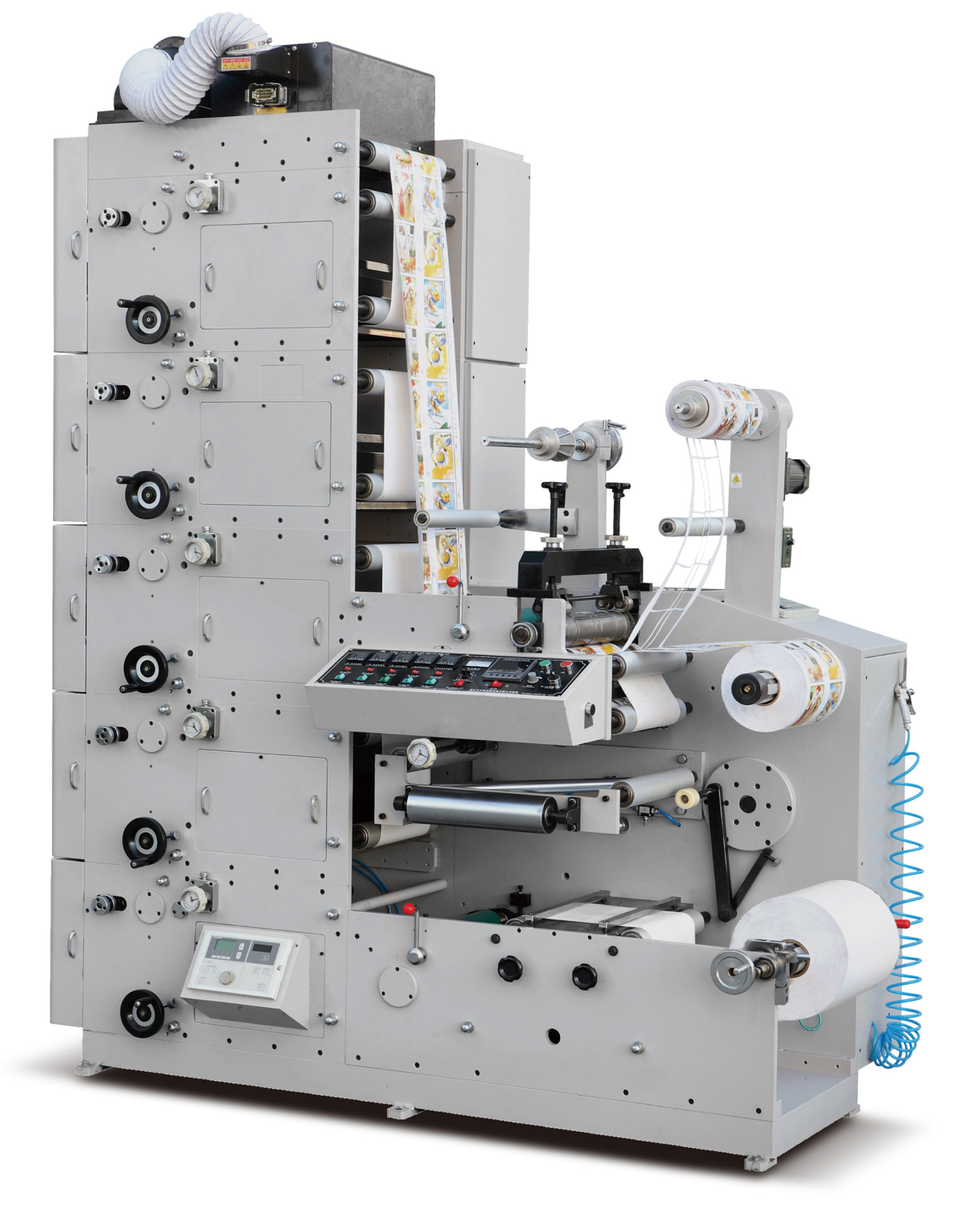

ZBS-320 LABEL FLEXO PRINTING MACHINE

Introduction:


1、Adopt the creamic anilox cylinder to transfer the ink.
2、Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3、Each printing unit adopts 360° plate adjustment.
4、Each printing unit equips with IR dryer.
5、This machine with one die-cutting station,which makes printing and die-cutting can be finished in one precess.
6、The ink rollers will be separated from the printing roll-ers, and keep running when the machine stops.
7、The manin machine inverter is imported.
8、The machine can finish material-feeding,printing, var-nishing, drying,laminating,rewinding and die-cutting in a lump. It is an ideal machine for printing note and top-grade adhesive label.


Technical parameter:


ModelZBS-320


Printing speed50m/min

Printing color5 colours

Max web width320mm

Max printing width310mm

Max unwinding diameter600mm

Max rewinding diameter600mm

Printing length175-355mm

Precision of chromatography±0.1mm

Machine weightabout2200kg

Dimensions2(L)x1.1(W)x2.6(H)(m)


Option items:




  1. UV dryer

  2. correcting unit and reverseunit
