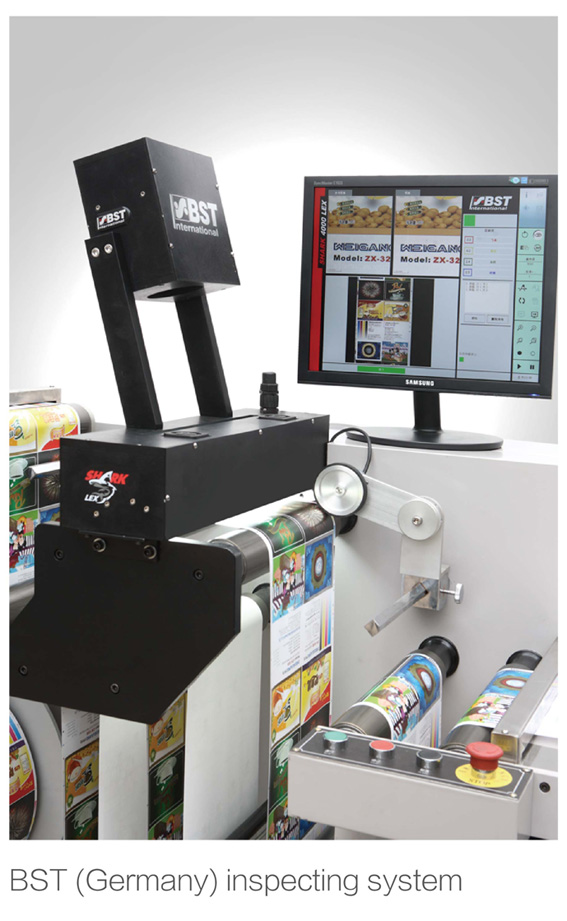

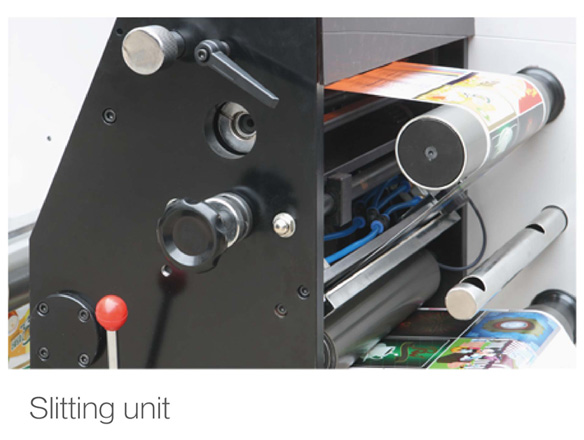

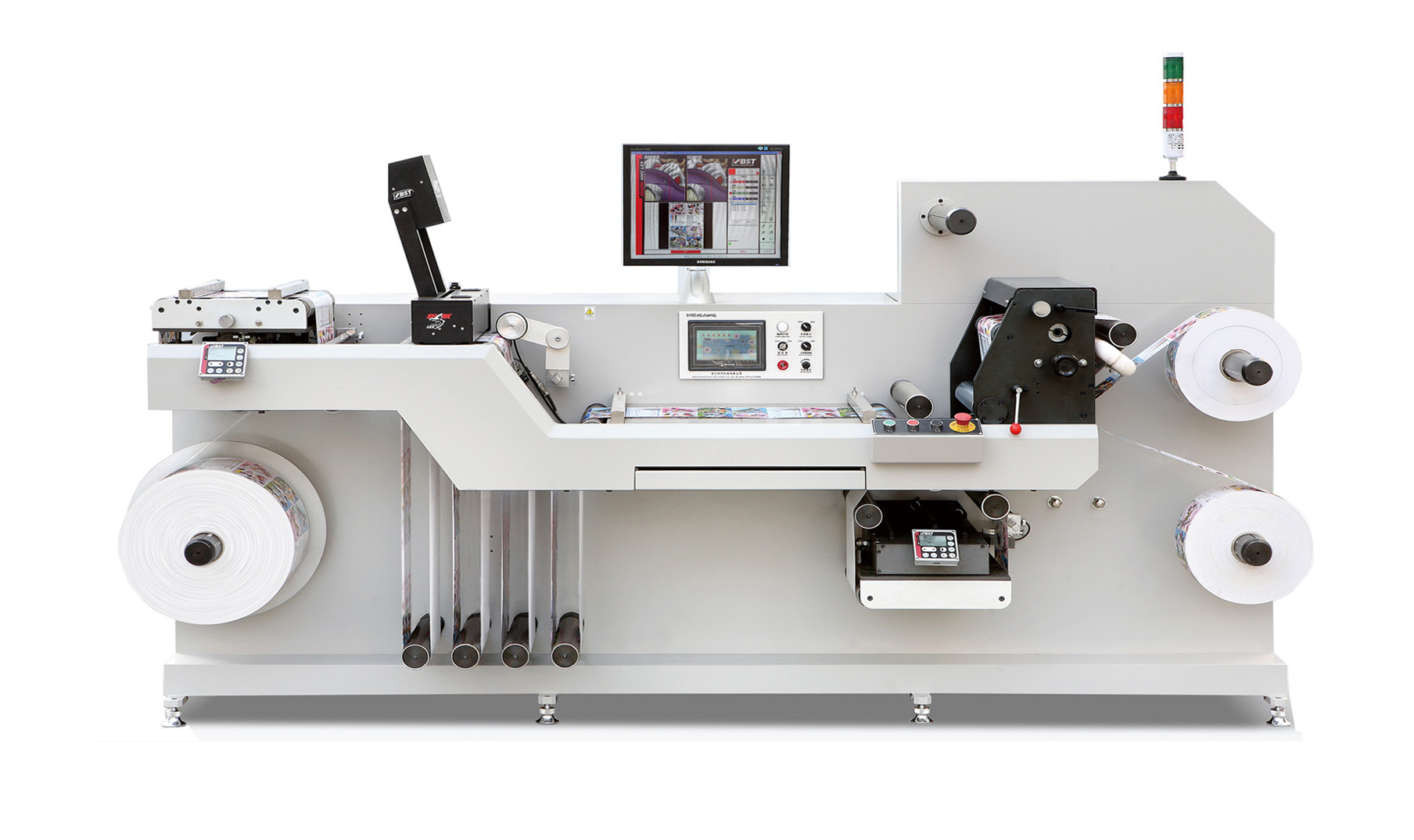

ZB-320 Auto label inspecting machine adopts latest BST(Germany) inspecting system. It can detect defective labels such as missing label, color differences, bad registration and scratched labels. This machine equips with inline slitting unit has the characteristic of fast speed high accurate and easy operation highly increased the final label quality and output.
| Max inspecting speed | 160m/min | ||||
| Max web width | 320mm | ||||
| Max unwinder dia | 650mm | ||||
| Max rewinder dia | 650mm | ||||
| Slitting width | 20-300mm | ||||
| Total power | 5kw | ||||
| Power supply | 380v/3p 50hz | ||||
| Weight | 1450kg | ||||
| Dimension | 285*100*150mm |
 |  |
 |  |
