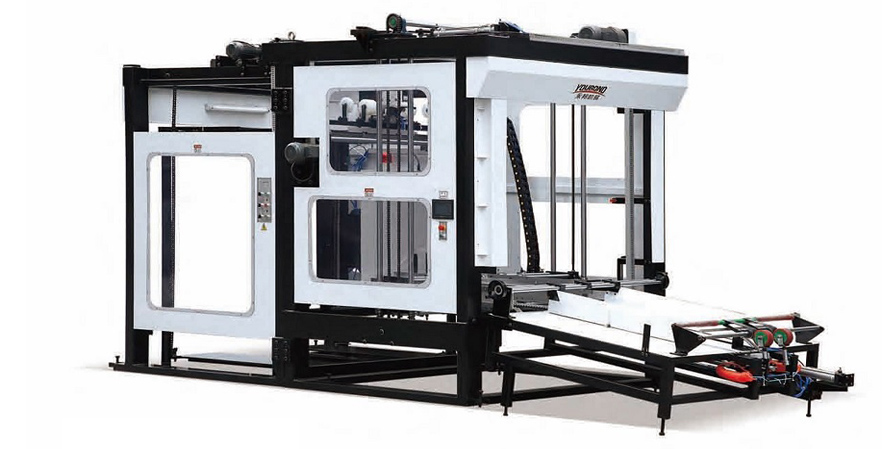

Auto Pile Turner and Stacker Machine is the special accessory products for sheet to sheet laminating machines and can be connected with any of manufacturer’s laminating machine. This integrative equipment can auto make the laminated papers to piles according to specified number. With collecting, piling, intermittent turning and stacking functions, realize collected paper front and backside placed stacking, effectively prevent laminated paper curving and manpower-saving for labor collecting strength.

Auto Collecting

Front and Back Placed Stacking
Collecting Orderly
One Key Operation
Fault Detection
Easy Connecting
Space Saving
Simple and easy to learn
Save time and effort

Technical parameters:

Max sheet size1450×1250mm1650×1450mm
Min sheet size500×500mm500×500mm

Machine configuration:

Paper separating system:Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt when reach the specified number separating rod lift and separate the paperDown push system:Driven by the cylinder two pawl forward movement, push the set up quantity paper into a turnover device.
Turning system:Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff convenient for subsequent production line.Up push system:Using cylinder and lever principle, pushing the lifting paper into collecting system and waiting to be piled.
Piling system:Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neatCollecting system: When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper at the same time the vice paper collecting table automatic work complete non-stop collecting finished.
Electronic unit:All parts adopt well-know foreign brand, reasonable program design, working by one key to complete the operation, automatic fault detectionPneumatic control system:The mechanical action work through pneumatic control to complete, all pneumatic components are imported famous brand
