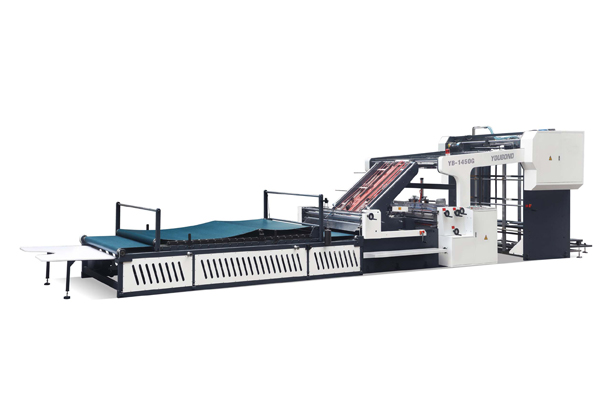

YB-1450G/1650G INTELLIGENT LAMINATING MACHINE

Introduction:



On behalf of the new technology of intelligent laminating machine, the fastest speed, positioning the most accurate, the most convenient operation, boot only when the input size of paper, machine will automatically adjust the size of each part to the corresponding position, the full realization of intelligent operation.

1.Max speed 150m/min

2.Full intelligent automation

3.Auto adjustment of replace different paper

4.Curve speed positioning make sure accuracy

5.The latest technology of intermittent positioning

6.Bottom and top sheet automatic tracking system

7.Bottom paper left and right all course correction

8.Top sheet left and right all course correction

9.Intelligent detection paper length

10.Interlligent fault display and alarm system

11.Intelligent glue supply recovery system

12.Intelligent cleaning water cycle system

13.Bottom paper suction power adjust device

14.America MAC retractable air suction

15.The most advanced electrical control system

16.Working type pre stack paper lifting device

17.All stainless steel glue roller configuration

18.Antirejuection glue protective device

19.Cardboard to flute & cardborad to cardboard

20.Intermittent front gauge registration



Technical parameters:




Model

YB-1450G

YB-1650G

Max sheet size

1450×1250mm

1650×1450mm

Min sheet size

500×500mm

500×500mm

Top sheet thickness

150-600g

150-600g

Bottom sheet thickness300g-4mm
300g-4mm

Max speed

150m/min150m/min

Fitting precision

±1mm

±1mm

Power

20KW/380V

22KW/380V

Weight

7000kg

7500kg

Measurement

12.5×2.2×2.4M

13.5×2.4×2.4M


Machine configuration:



Bottom Paper Feeding:Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller, Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.Top Sheet Feeding Mechanism:Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
Positioning part:Servo control of the intermittent fixed position, in the process of positioning, positioning gauge work as “start-speed up-tracking-speed reduction-stop” curve speed run, make sure positioning more accurateSide positioning:Left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right
Glue Roller:Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water rollerTransmission:With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy
Electrical System:Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.Pre-Stack Part Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.

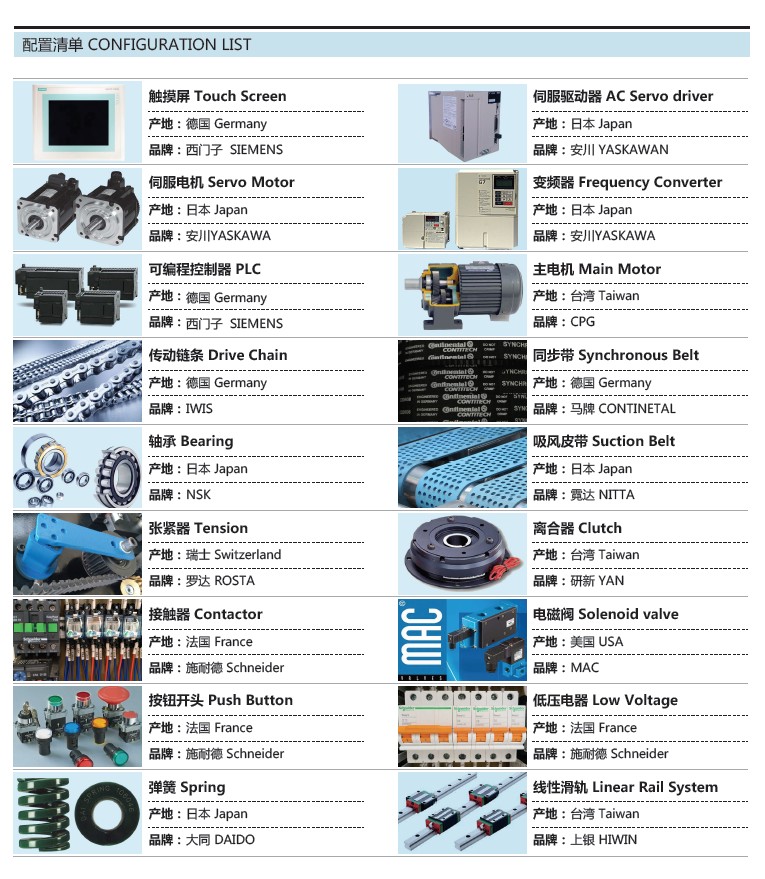

CONFIG LIST.jpg
