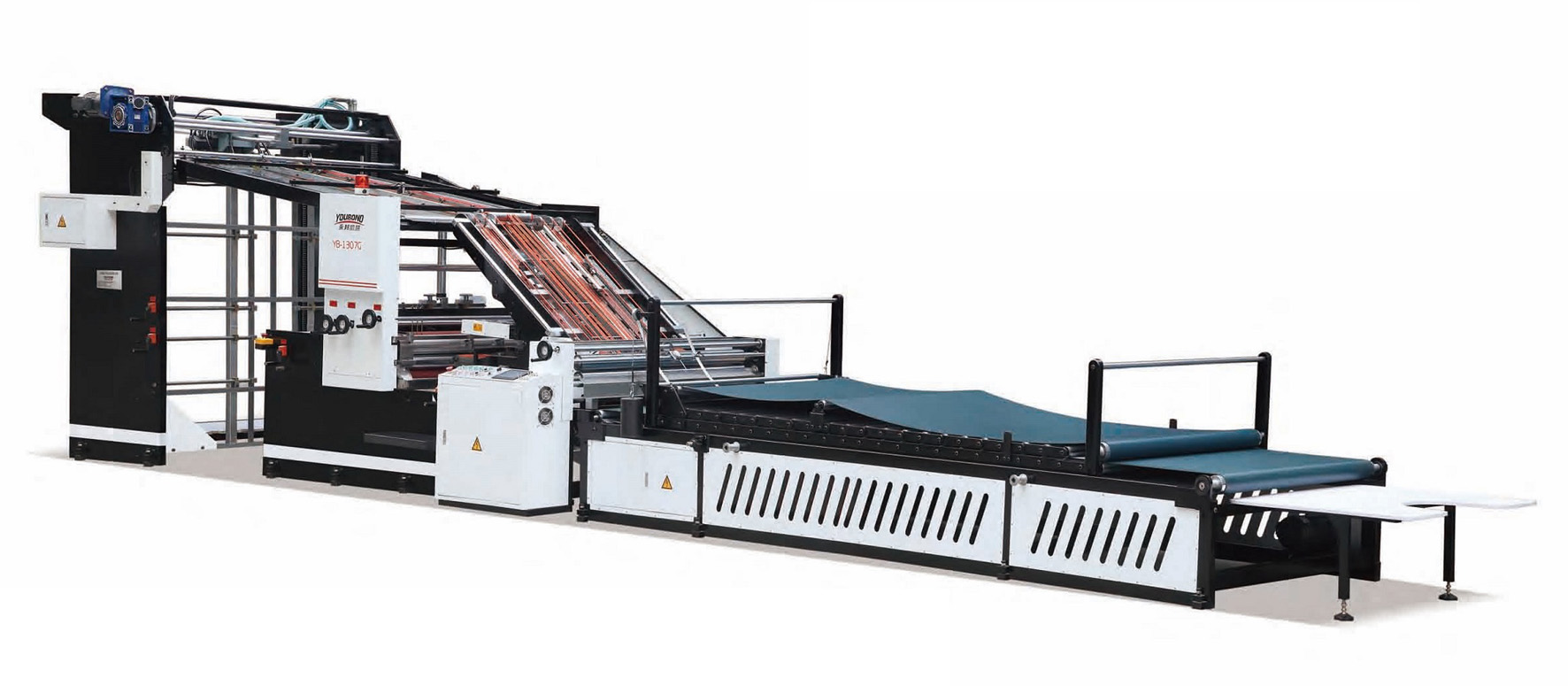

YB-1307G/1310G/ automatic high speed laminator

Introduction:

The latest generation of dual function laminating machine which can work both cardboard to cardboard and cardboard to corrugate maximize the production efficiency avoid duplicated investment.

1. To achieve high efficient and stable operation, main parts of equipment all imported
2. Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly
3. Top sheet lifting table: adopting large ratio of high strength turbine reducer to make sure the instant speed stability
4. Top sheet pilling table: Unique idea E-type with double gaps device design can allow sheet to be pushed directly by hand forklift, shorten paper stacking time and improve the efficiency, and also can be installed the orbit type auxiliary pile board
5. Bottom paper drive: Use imported Servo motor electric controlling system to guarantee high sensitivity and high speed operation
6. Bottom paper feeding: Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation
7. Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly
8. Glue system: Automatic glue complement system, automatic replenishment of losses glue in the process of laminate, and also equipped with glue recycling system
9. Front and back positioning: Unique creation of front gauge positioning system, take advantage of the speed difference of paper feeding and front running, make sure the paper tracking the front gauge and accurately positioning
10. Side positioning: left and right side synchronous block complete the accurate positioning
11. Transmission: With imported belt drive, ensure the drive accurate, stable and low noisy.
12. Operating system: Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance
13. Electrical system: Designed in the accordance with European CE
14. Our mechanical configurations are subject to change without notice

Technical parameters:

Machine configuration:

Bottom Paper Feeding:Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller, Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.	Top Sheet Feeding Mechanism:Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
Front and back positioning:Paper absorbed by the fan on the conveyor belt, take advantage of the speed difference of paper feeding and front running, make sure the paper tracking the front Gauge and accurately positioning.	Side positioning:Left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right
Glue roller Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.	Transmission:with imported double teeth belt drive and switzerland ROSTA tension device ensure the drive accurate stable and low noisy.
Electrical system:Designed in the accordance with European CE requirement, ensure machine stability  High efficiency and low failure, using man-machine interface and PLC combination display all the information such as warning, error detect, failures and operating speed etc on the screen at a glance.	Mainframe: wallboard are all large-scale machining center once processed, the reasonable design of roller installation position, convenient adjustment and maintenance, the host drive bearings are imported
