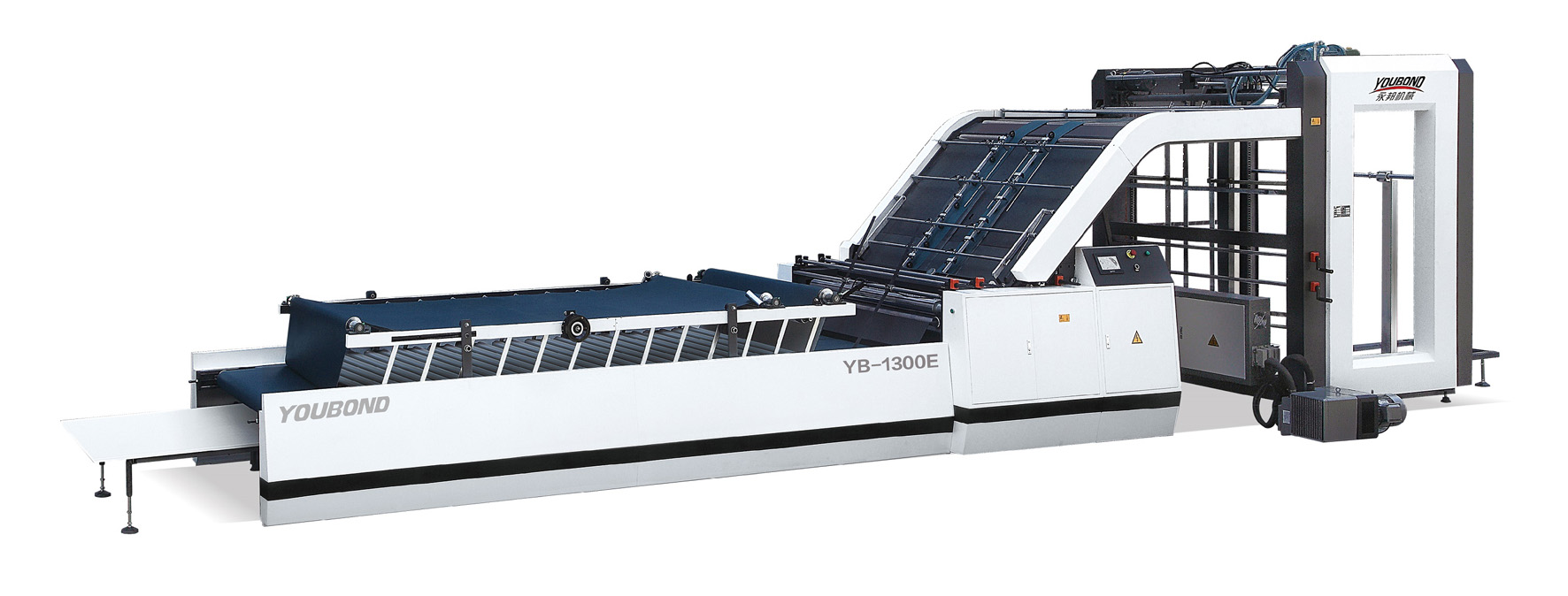

This machine can be used in color printing corrugated paper and corrugated paper laminating, tissue using scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never advance. It is easy to operate and easy to maintain.
1 advanced automatic tracking technology, according to the paper automatically adjust the size of the relevant parameters, so that the machine running is always in the best condition;
2 unique front gauge positioning system, accurate, the bottom paper never advance; advance with adjustable amount of paper;
3 is equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly.
4 using the principle of offset printing machine side plate positioning for about error correction paper stack of paper and feeding process;
5 at the end of the paper using automatic suction feeder, can adjust the size of the wind in the touch screen, and an optional belt humidifying function;
6 spare layboy in the non-stop state pile under a pile of paper, along the rail into the elevator, high working efficiency;
7 imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm;
8 full automatic glue supply system, can automatically add the loss of plastic, and with the glue recycling;
9 independent tank control water circulation, ensure the bottom paper back and dry, cleaning roller, spout, back glue tank;
10 single side adjustment of the pressure of the pressure roller, and equipped with a pressure scale display, the replacement of the end of the paper size adjustment in one step;
Model | YB-1300E | YB-1450E | YB-1650E |
Max sheet size | 1300X1250mm | 1450X1250mm | 1650X1450mm |
Min sheet size | 400X400mm | 400X400mm | 400X400mm |
Thickness of top paper | 150-600g | 150-600g | 150-600g |
Max speed | 7000 sheet/hour | 7000 sheet/hour | 7000 sheet/hour |
Laminating precision | ±1mm | ±1mm | ±1mm |
Measurement | 11.5X2X2.4M | 11.5X2.2X2.4M | 11.5X2.4X2.4M |
Weight | 5000kg | 5500kg | 6000kg |
Total power | 10KW/380V | 11KW/380V | 12KW/380V |
Thickness of bottom paper | A、B、C、E、F corrugated paper and industrial paperboard | ||
 |  |
Top sheet feeding system: high precision high speed automatic feeder feeding smoothly strengthening type paper feeding device nozzle angle is adjustable suitable for different type of paper | Pressure regulation system:Single pressure regulation to ensure that the two side pressure be same with the display of dial gauge. It is easy to adjust when change the paper. |
 |  |
| Side gauge positioning: error correction for about top paper stack and feeding process. Similar with the principle of offset printing machine positioning accuracy. | Transmission:Floating design of press, no need to adjust the pressure. Heightening design, smooth working for thick corrugated paperboard. |
 |  |
| Electrical system:Main electrical components are imported brands PLC tracking technology, automatic fault detection | Pre-stack part:Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency. Using the “working” font design, the platform can be used to push and easy back, labor saving |
