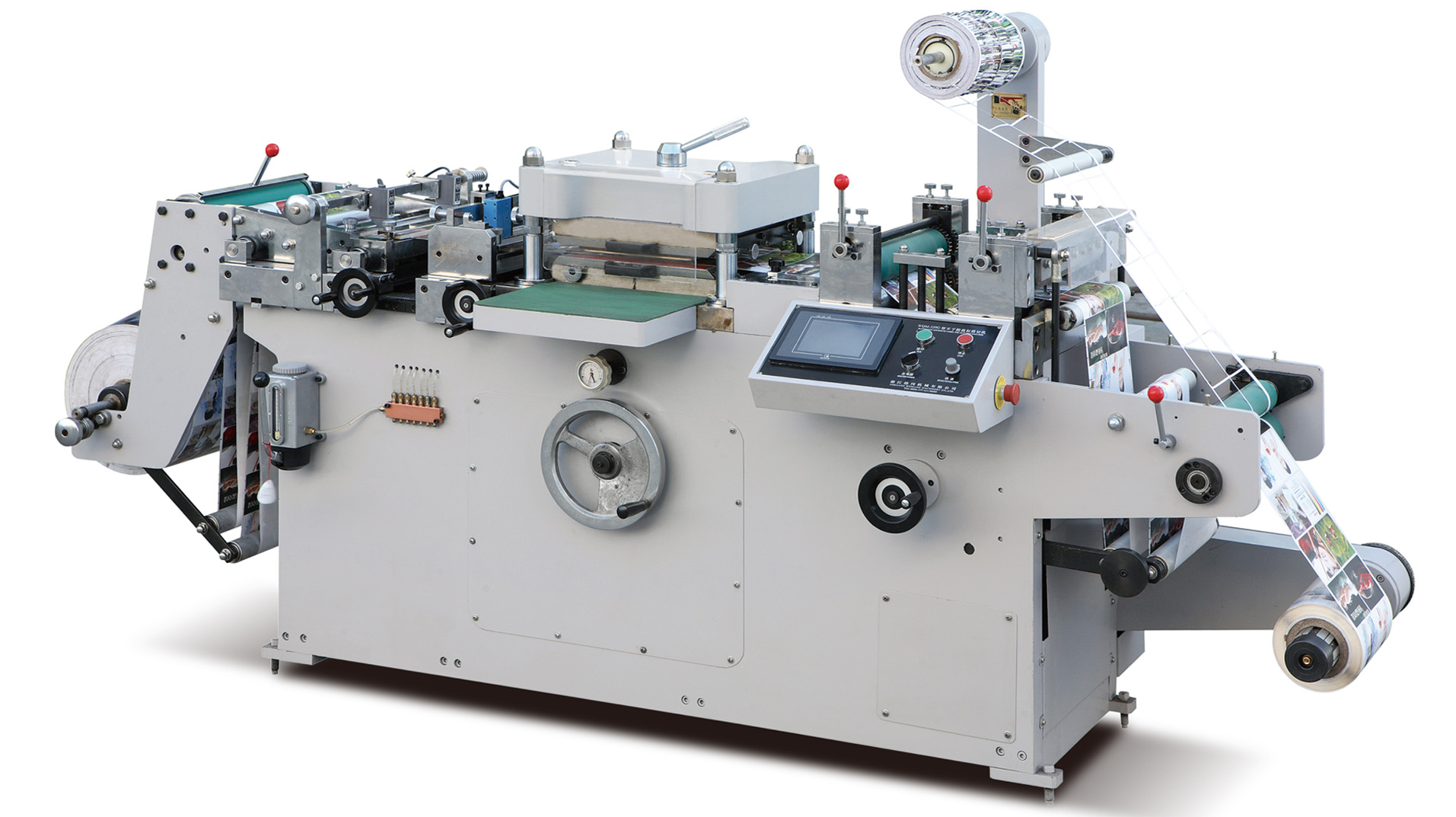

The machine features flat pressing high precision die cutting and computer control of material pulling and slicing, precision tracking and positioning of both sides and longitude of printed marks by three photoelectric eyes as well as completion of die cutting, waste collection, slicing or automatic marking machine roll at a time, suitable for the die cutting of paper adhesive trademarks, terylene film trademarks and laser counterfeiting trademarks. As the optimal auxiliary equipment of flexographic printing machines, continuous screen printing machine, relief printing machines and counterfeiting trademark mould press, it is the most ideal machine for various trademark printing factories.
The following devices are optional according to customer demands:
1. Gold Blocking Devices
2. Coating Devices, available in various positions of die cutting machines.
| Model | 320 | 320G | 420 |
| Die cutting speed | 20-125t/min | 20-170t/min | 20-170t/min |
| Max releasing dia | 450mm | 500mm | 500mm |
| Max roll paper width | 320mm | 320mm | 420mm |
| Max die cutting width | 300mm | 300mm | 400mm |
| Max die cutting length | 290mm | 300mm | 400mm |
| Positioning precision | ±0.15mm | ±0.10mm | ±0.10mm |
| Power | 3kw | 3.5kw | 4.5kw |
| Power supply | 220v | 220v | 380v |
| Machine weight | 1500kg | 1700kg | 2300kg |
| Dimension | 2600*950*1400cm | 2600*990*1400mm | 2700*1050*1500mm |

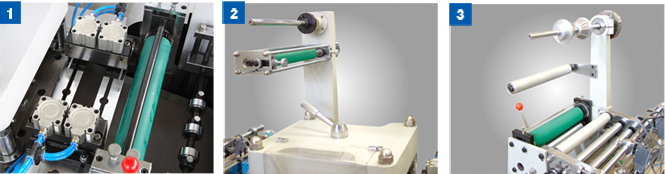

1. Drilling equipment playing on the computer in the hole or holes.
2. Tipping device
3. Laminating equipment cutting machines in different spaces.
