Main Features:

Instant Electromagnetic Heater
heat up time shorten to 90 seconds,
accurate temperature control:±1℃

Main technical parameters:

Max Paper Size 820X1050mm
Min Paper Size 300x300 mm
Paper Thickness 100-500 g/m2
Laminating Speed 0-65 m/min
Gross Power 21kw
Weight 4000 kg
Overall Dimensions 6200x2000x1900 mm
Pre-stacker 1850mm

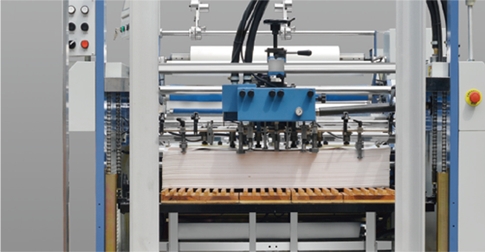

1. Auto Feeder

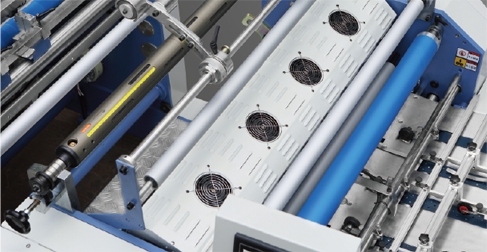

2. Electromagnetic Heater


This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine

Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.

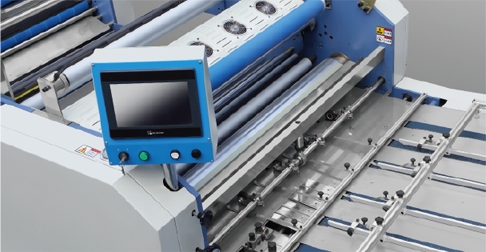

3. Human-computer interface

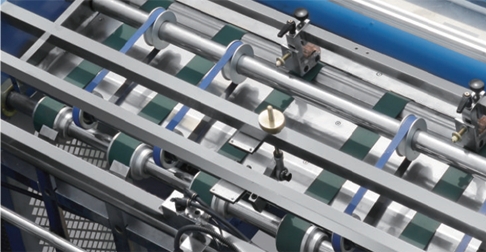

4. Separation system


A user-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.

Pneumatic separation system to separate the paper stably and quickly.

5. Corrugated Delivery

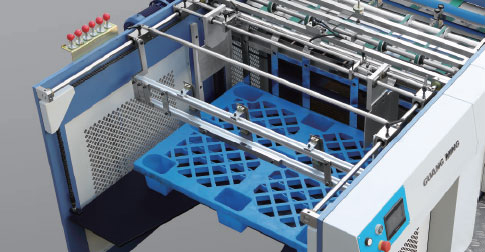

6. Automatic Stacker


A corrugated delivery system collects paper easily.

Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets

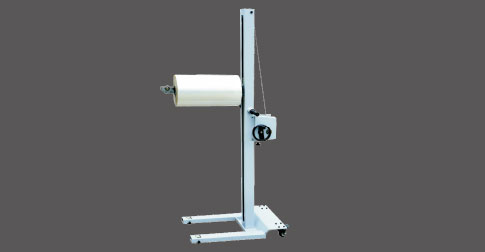

7. Film Loader

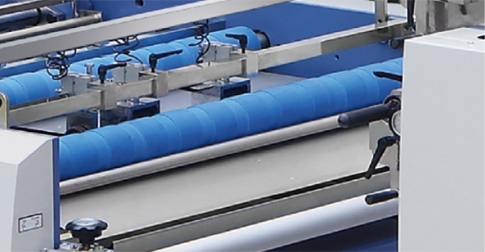

8. Anti-curvature Device


Operating the film loader is easy and efficient to use.

The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.

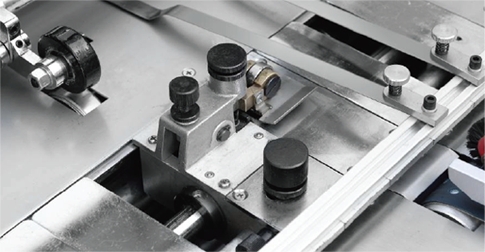

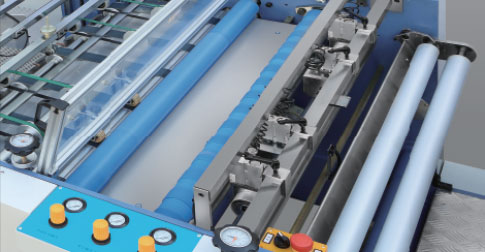

9. Side Lay Regulator


The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
