Main Features:

Maximum Sheet Size

Instant Electromagnetic Heater
heat up time shorten to 90 seconds,
accurate temperature control:±1℃
Max. speed 120 meter/min
PET film 75 meter/min
Maximize output and profits for user.

Main technical parameters:

Max Paper Size 1200X1450mm or 1200X1650mm
Min Paper Size 390x450 mm
Paper Thickness 105-500 g/m2
Laminating Speed 0-75 m/min(PET Film)
Laminating Speed 0-120 m/min
Gross Power 29kw
Weight 6600 kg
Overall Dimensions 10600x2400x1900 mm
Pre-stacker 1850mm


 1.png 2.png

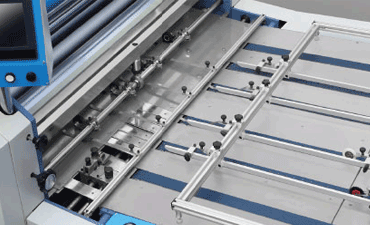

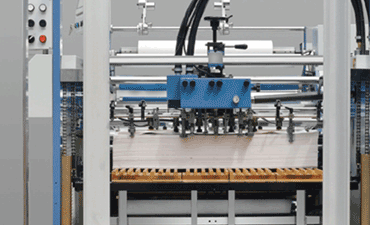

This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine

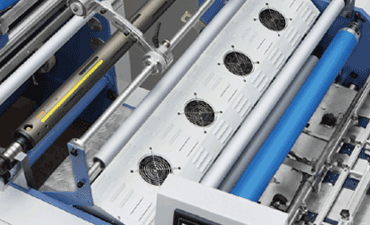

Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.

3.png 4.png

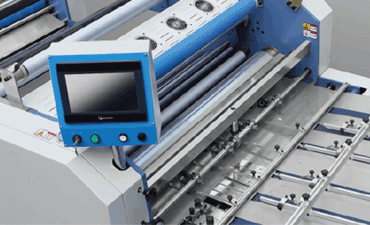

A user-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.

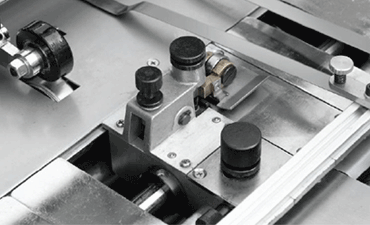

The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.

5.png 6.png

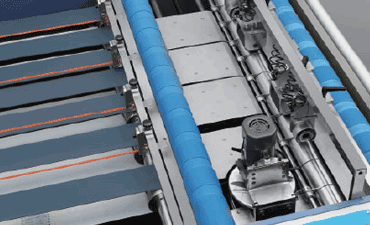

A corrugated delivery system collects paper easily.

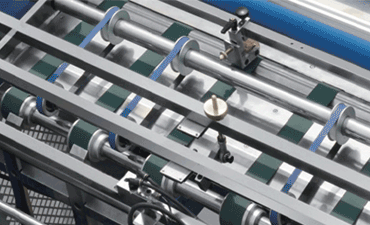

This machine is equipped with a pneumatic separating system, pneumatic perforating device and photoelectrical detector to rapidly separate the paper according .to the paper size.

7.png 8.png

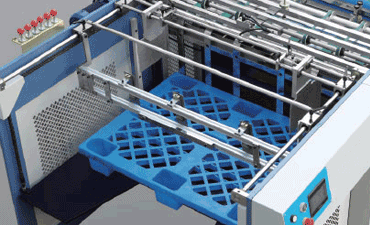

Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets

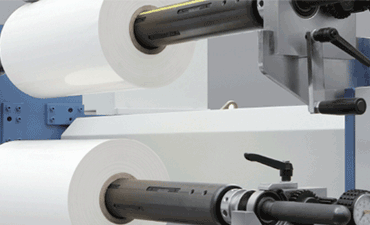

Saving time of film loading and uploading, improving efficiency


Heating roller with scraper effectively clean the powder and dust in the surface of paper. Improve the brightness and bond after laminating
