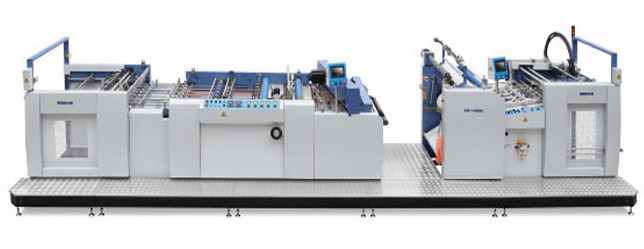

SW-1050L Chain Cutter system apply for all kinds of thermal film lamination, having the feature of accurate separation without film margin, especially for PET film, foil film and etc., with excellent function to solve complicated issue.
Instant Electromagnetic Heater heat up time shorten to 90 seconds
accurate temperature control:±1℃
Max. speed 100 meter/min PET film 70 meter/min
Maximize output and profits for user.
| Max Paper Size | 1050x820 mm |
| Min Paper Size | 300x300 mm |
| Paper Thickness | 105-500 g/m2 |
| Laminating Speed | 0-70 m/min(PET Film) |
| Laminating Speed | 0-100 m/min |
| Gross Power | 26kw |
| Weight | 5000 kg |
| Overall Dimensions | 8550x2400x1900 mm |
| Pre-stacker | 1850mm |

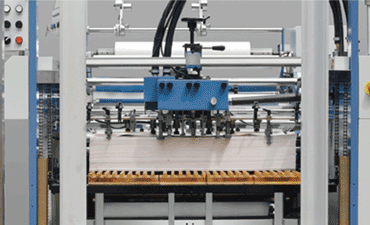

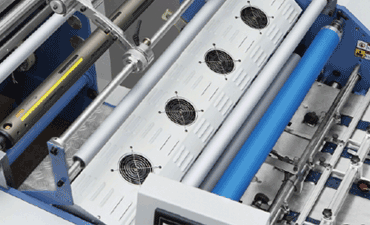

1. Auto feeder | 2. Electromagnetic Heater |
 |  |
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine | Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection. |

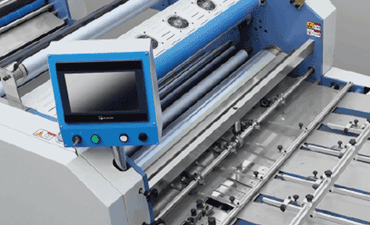

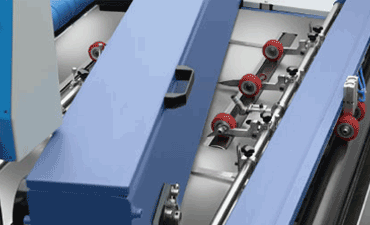

3. Human-computer interface | 4. Chain Cutter System |
 |  |
A user-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds. | Chain cutter system applying bopp, pet, pvc film and etc., having the feature of accurate separation without film margin |

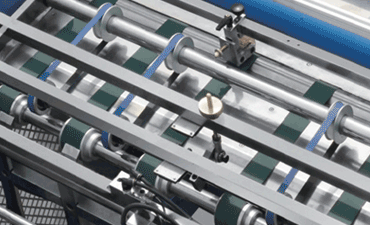

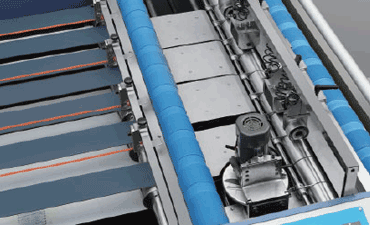

5. High Speed Separating system | 6. Corrugated Delivery |
 |  |
This machine is equipped with a pneumatic separating system, pneumatic perforating device and photoelectrical detector to rapidly separate the paper according .to the paper size. | A corrugated delivery system collects paper easily. |

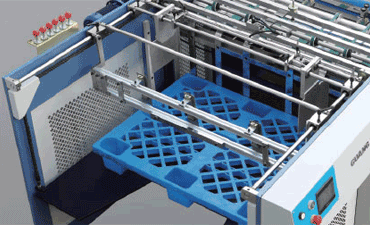

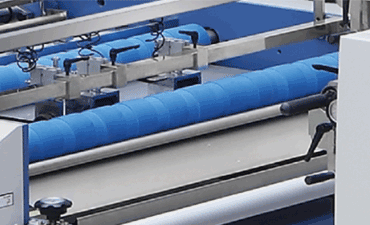

| 7.Anti-curvature deviece | 8. Automatic stacker |
 |  |
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process. | Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets |

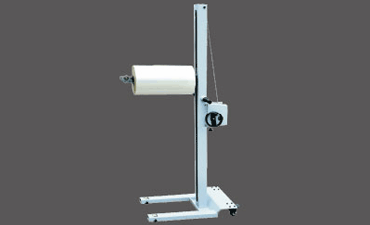

9. Film loader | |
 | |
Operating the film loader is easy and efficient to use. |
