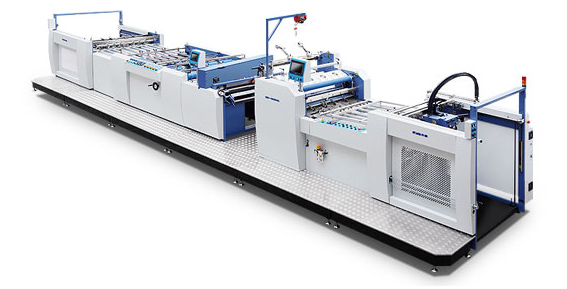

SW-1050GL chain cutter system apply for all kinds of thermal film lamination, having the feature of accurate separation without film margin, especially for PET film, foil film and etc., with excellent function to solve complicated issue.
Instant Electromagnetic Heater heat up time shorten to 90 seconds
accurate temperature control:±1℃
Max. speed 120 meter/min PET film 70 meter/min
Maximize output and profits for user.
| Max Paper Size | 1050x1200 mm |
| Min Paper Size | 350x350 mm |
| Paper Thickness | 105-500 g/m2 |
| Laminating Speed | 0-75 m/min(PET Film) |
| Laminating Speed | 0-120 m/min |
| Gross Power | 29kw |
| Weight | 5300 kg |
| Overall Dimensions | 10500x2400x1900 mm |
| Pre-stacker | 1850mm |

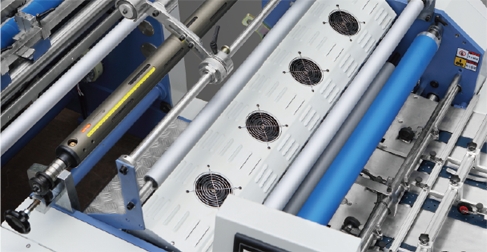

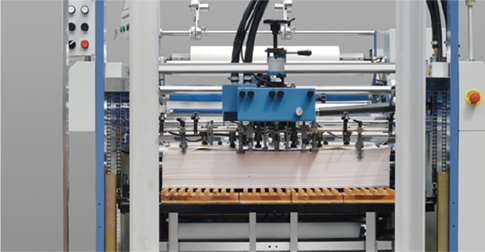

1. Auto feeder | 2. Electromagnetic Heater |
 |  |
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine | Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection. |

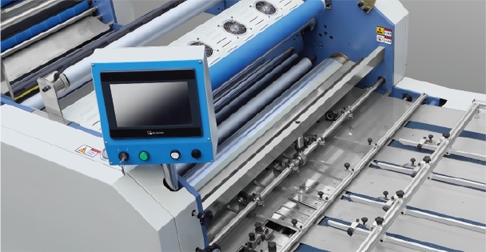

3. Human-computer interface | 4. Chain Cutter System |
 |  |
A user-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds. | Chain cutter system applying bopp, pet, pvc film and etc., having the feature of accurate separation without film margin |

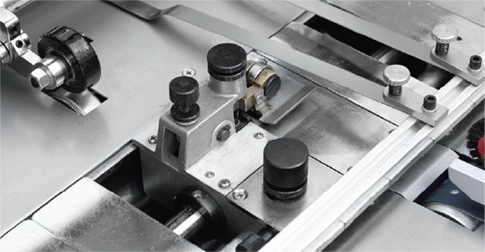

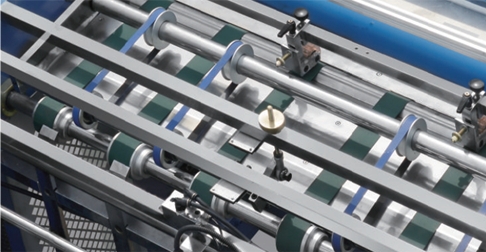

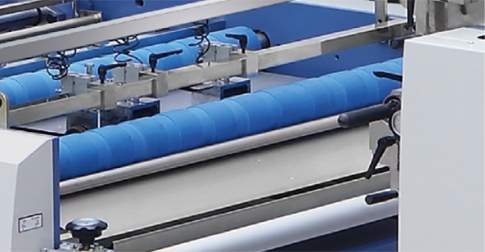

5. Side Lay Regulator | 6. Corrugated Delivery |
 |  |
The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times. | A corrugated delivery system collects paper easily. |

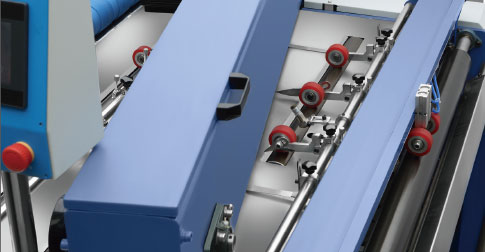

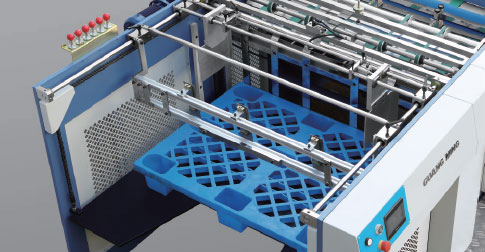

7. Anti-curvature Device | 8. Automatic Stacker |
 |  |
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process. | Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets |

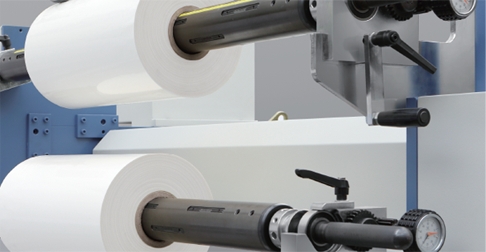

9. Double Film Shaft | |
 | |
Saving time of film loading and uploading, Improving efficiency |
