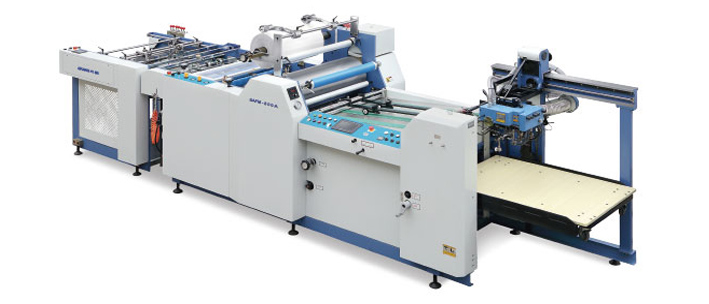

SAFM serial fully automatic laminator is designed for thermal film lamination. This laminator is composed of feeding unit, laminating unit and paper separation unit and paper collection system. The electric and pneumatic system is equipped with programmable control (PLC). This machine centralizes the features of compact structure, high automatization and humanized operation design.

Main technical parameters:

Max Paper Size 780X1040mm
Min Paper Size 300x300 mm
Paper Thickness 100-500 g/m2
Laminating Speed 0-65 m/min
Gross Power 22kw
Weight 3000 kg
Overall Dimensions 5300x1650x1700 mm

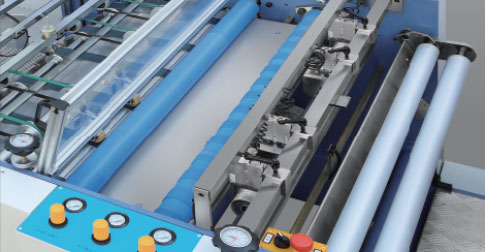

Separation system
Pneumatic separation system to separate the paper stably and quickly

Standard With Jogger.
Optional With Automatic Stacker
