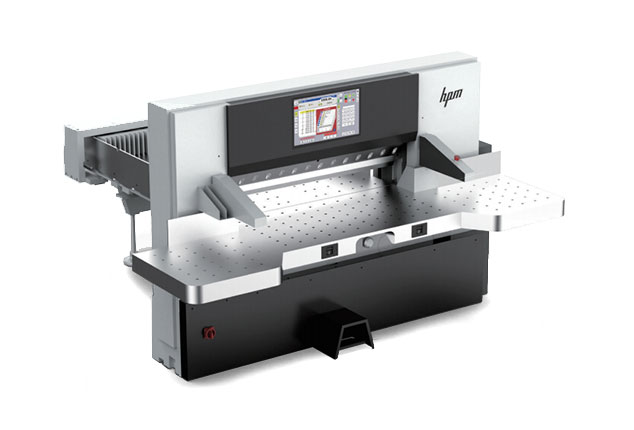

The S22 is our flagship intelligent model, featuring a 22-inch touchscreen that can directly parse
PDF and JDF files. It automatically calculates the optimal cutting layout and generates animated
guidance, significantly reducing reliance on operator skill and effectively preventing human
error—ideal for diverse, small-batch orders.
22" Industrial Touch Interface - Command center for complex operations.
Direct PDF/JDF/CiP4 Parsing - No manual programming, zero interpretation errors.
Automatic Layout & Animation Guidance - Visual instructions for foolproof operation.
38m/min Ultra-High Speed - Maximum throughput for your investment.
QR Code Job Management - Instant job retrieval, perfect for small batches
1. Unmatched File Compatibility & Automated Workflow
Break down digital barriers. The S22's system directly reads PDF, JDF, and complex, irregular
imposition files. It automatically calculates the most material-efficient cutting plan and generates
a clear visual program and cutting animation, transitioning seamlessly from prepress to finished
cut with no manual input.
2. Operator-Centric Guidance & Error Prevention
Empower any team member. The large screen displays intuitive animation guides, leading the
operator through each cut. Combined with features like QR code scanning for instant job loading,
it drastically reduces training time and completely prevents the wrong cuts that plague manual setups.
3. Network Integration & High-Speed Performance
Built for connected factories. With both wired and wireless (WiFi) connectivity, the S22 fits into
Industry 4.0 workflows, allowing for remote job submission and management. This connectivity,
paired with a blazing 38m/min backgauge speed, ensures it’s not just smart, but also exceptionally fast.
 |  |  |  |

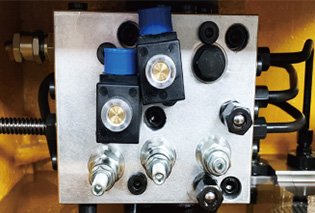

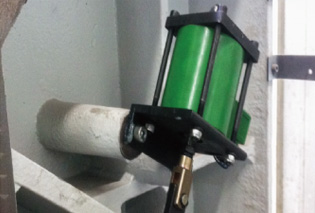

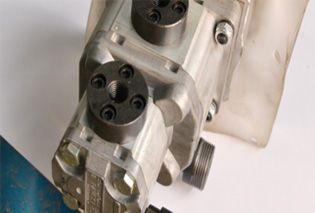

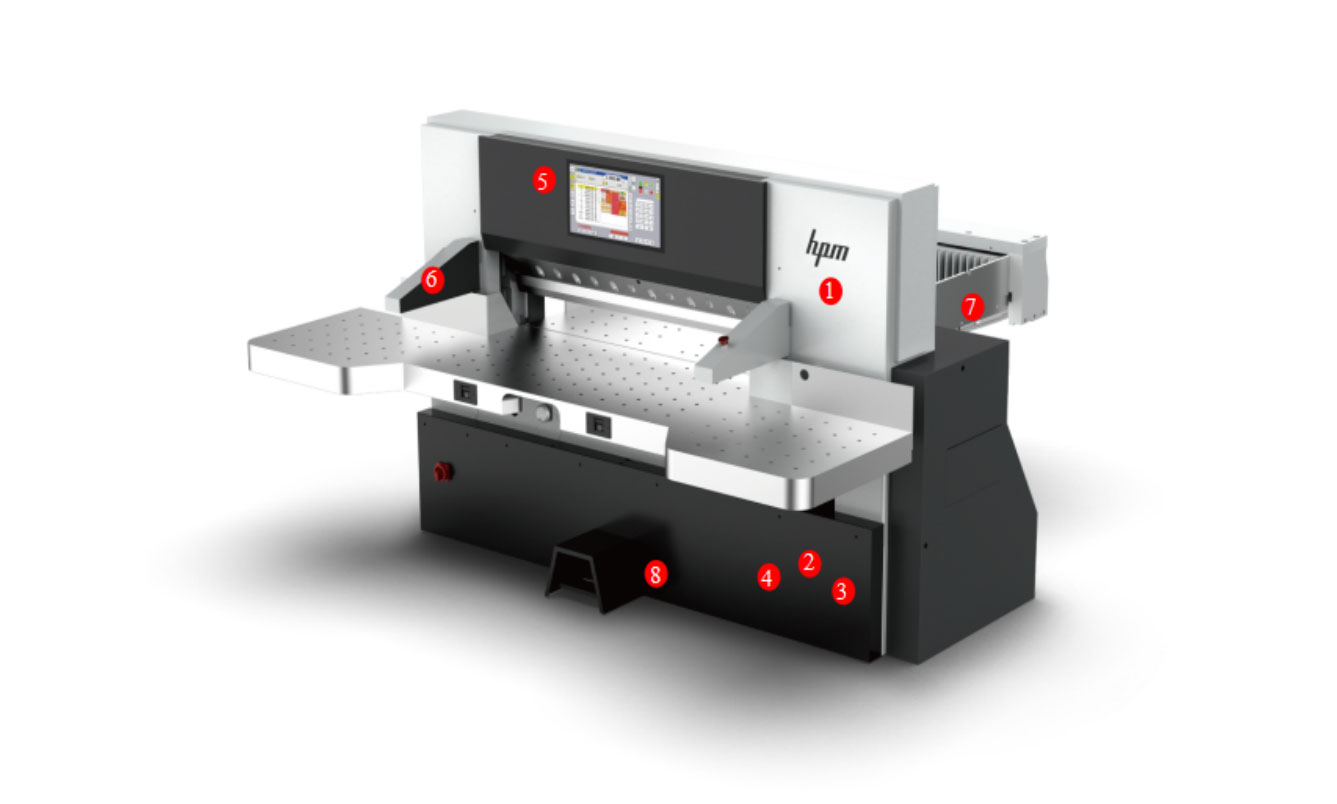

| Electronic lock safety device | Hydraulic system | Oil pump | Proportional valve |
 |  |  |  |

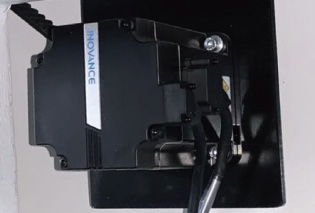

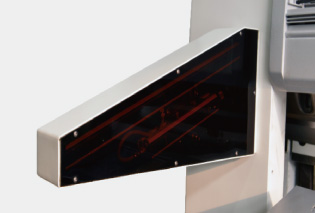

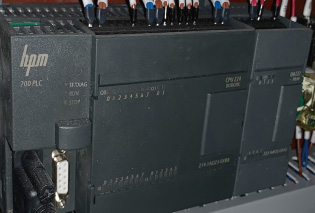

| Remote control system | Security photoelectric | Servo motor | PLC |

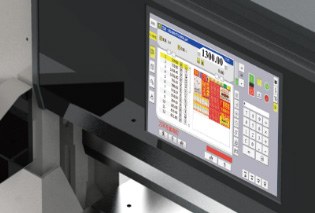

1.22inch full touch display screen.
2.Max. backgauge speed is 38m/min
3.With ClP4,can parse files in Pdf,jdf formatand other vsrious irregular imposition fles.4.Visual cutting program and animation guidancecould be created automatically5. Wifi and wireline networks are both available.
