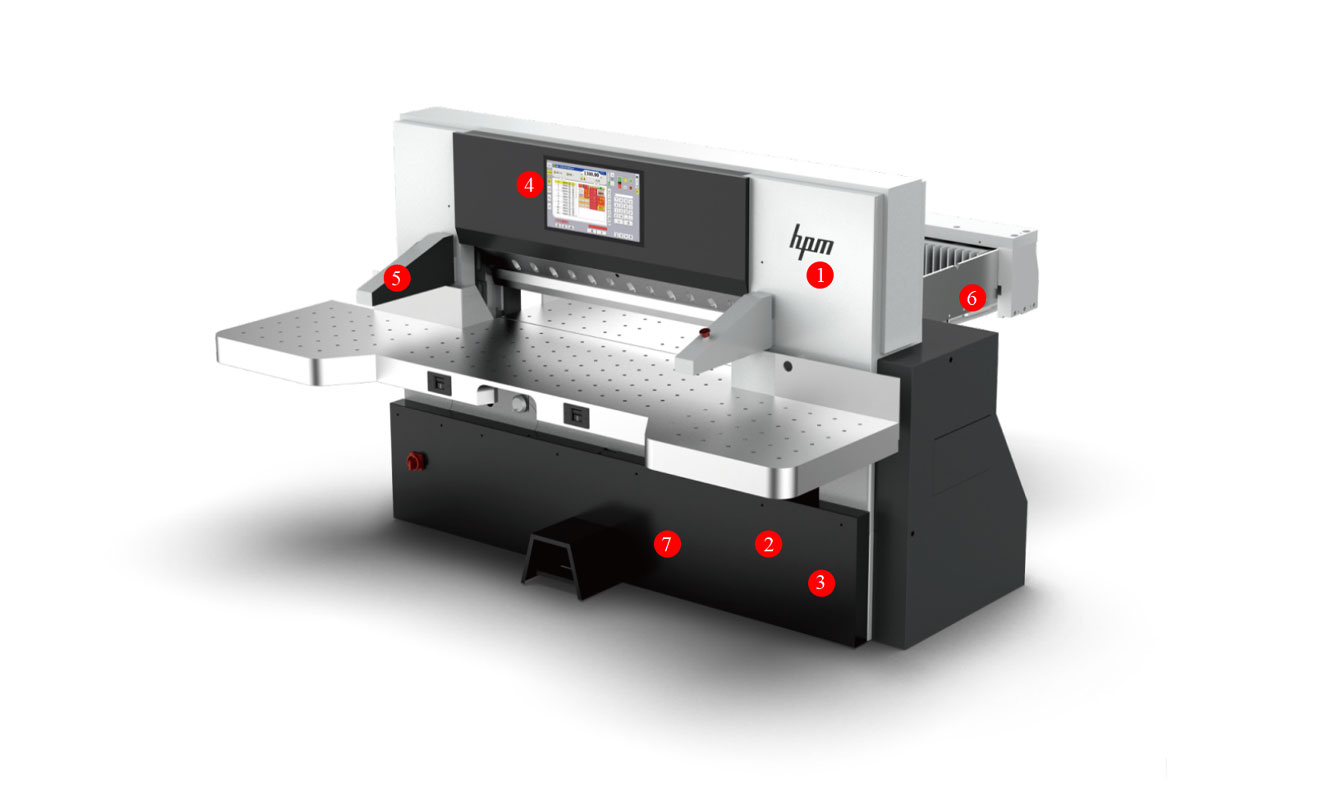

Professional A3/A4 cutter with 16" touch screen
The S16 is a cost-effective, entry-level professional model. Its 16-inch touchscreen and intuitive German-inspired operating system offer 0.01mm positioning accuracy. Stable and easy to operate, it provides a solid foundation of productivity and reliable cutting precision for customers undergoing their first equipment upgrade or with budget considerations.
16" Touch Screen - German-inspired intuitive interface
0.01mm Positioning Accuracy - Professional-grade precision
300 Program Storage - Handle complex batch jobs with ease
45+ Cuts/Minute - Balanced speed for daily production
CE-Ready Safety - Full protection for operators

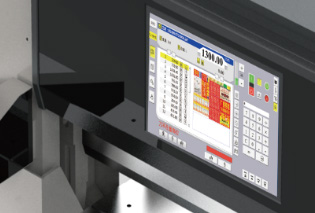

1. Intelligent Touchscreen Control System
Operate the entire machine through a responsive 16-inch full-color touchscreen. The German-inspired
interface minimizes training time, while features like real-time dimension display, four-operation
computing, and relative positioning make programming straightforward for both simple and
complex cuts.
2. High-Precision Cutting & Stability
Engineered for consistent results. The machine achieves 0.01mm display precision and features automatic
error compensation to correct for paper distortion. Its robust construction ensures this accuracy is
maintained job after job.
3. Built-in Productivity & Automation
Store up to 300 programs (200 steps each) for quick recall. The automatic paper-pushing program
enhances safety and efficiency, while password-protected single-cycle automation allows for controlled,
repeatable operation.
4. Comprehensive Safety Design
Built around operator protection. Key features include an electronic lock safety device, safety photocells,
and a critical knife bed puller that halts the machine instantly if a safety component fails, preventing
damage and injury.
 |  |  |  |

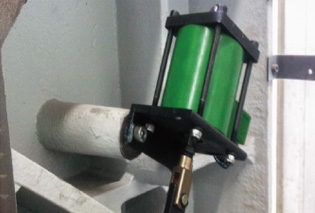

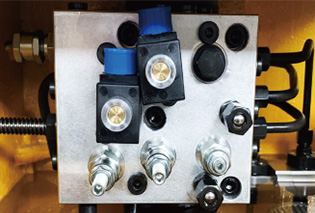

| ELECTRONIC LOCK SAFETY DEVICE | HYDRAULIC SYSTEM | OIL PUMP | REMOTE CONTROL SYSTEM |
 |  |  | |

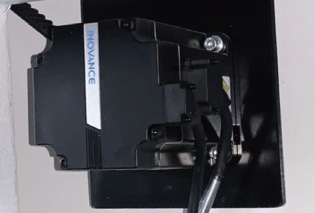

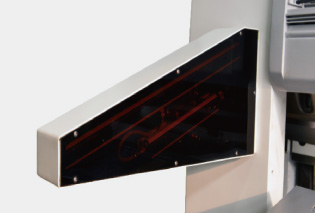

| SECURITY PHOTOELECTRIC | INOVANCE SERVO MOTOR | HPM PLC |
1.16 inch full touch display screen.
2.Max, backgauge speed is 20m/min.
3.Display precision is 0.01mm.
4.Manual and automatic operations can be choose.
| Model | unit | 92 | 115 | 130 | 137 | 168 | 188 |
| Max cutting width | cm | 92 | 115 | 130 | 137 | 168 | 188 |
| inch | 36.2 | 45.3 | 51.2 | 53.9 | 66.1 | 74 | |
| Max cutting length | cm | 92 | 115 | 130 | 137 | 168 | 188 |
| inch | 36.2 | 45.3 | 51.2 | 53.9 | 66.1 | 74 | |
| Max cutting height | cm | 12 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| inch | 4.7 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min cutting size without false clamp plate | cm | 2.5 | 3 | 3 | 3 | 3 | 3 |
| inch | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Min cutting size with false clamp plate | cm | 9 | 9 | 9 | 9 | 9 | 9 |
| inch | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| Front table length | cm | 63.2 | 71.5 | 73 | 73 | 75 | 75 |
| inch | 24.9 | 28.1 | 28.7 | 28.7 | 29.5 | 29.5 | |
| Max clamp pressure | N | 30000 | 40000 | 40000 | 45000 | 60000 | 70000 |
| Cutting speed | T/Min | 45 | 46 | 46 | 46 | 46 | 46 |
| Main motor | KW | 3 | 4 | 4 | 4 | 8.5 | 8.5 |
| Gross power | KW | 4.3 | 4.3 | 5.85 | 5.85 | 5.85 | 8.4 |
| Net weight | Kg | 2300 | 3700 | 3900 | 4100 | 6200 | 6600 |
| Packing size | cm | 228*140*188 | 285*190*210 | 285*190*210 | 310*190*210 | 260*205*220 | 380*205*220 |
