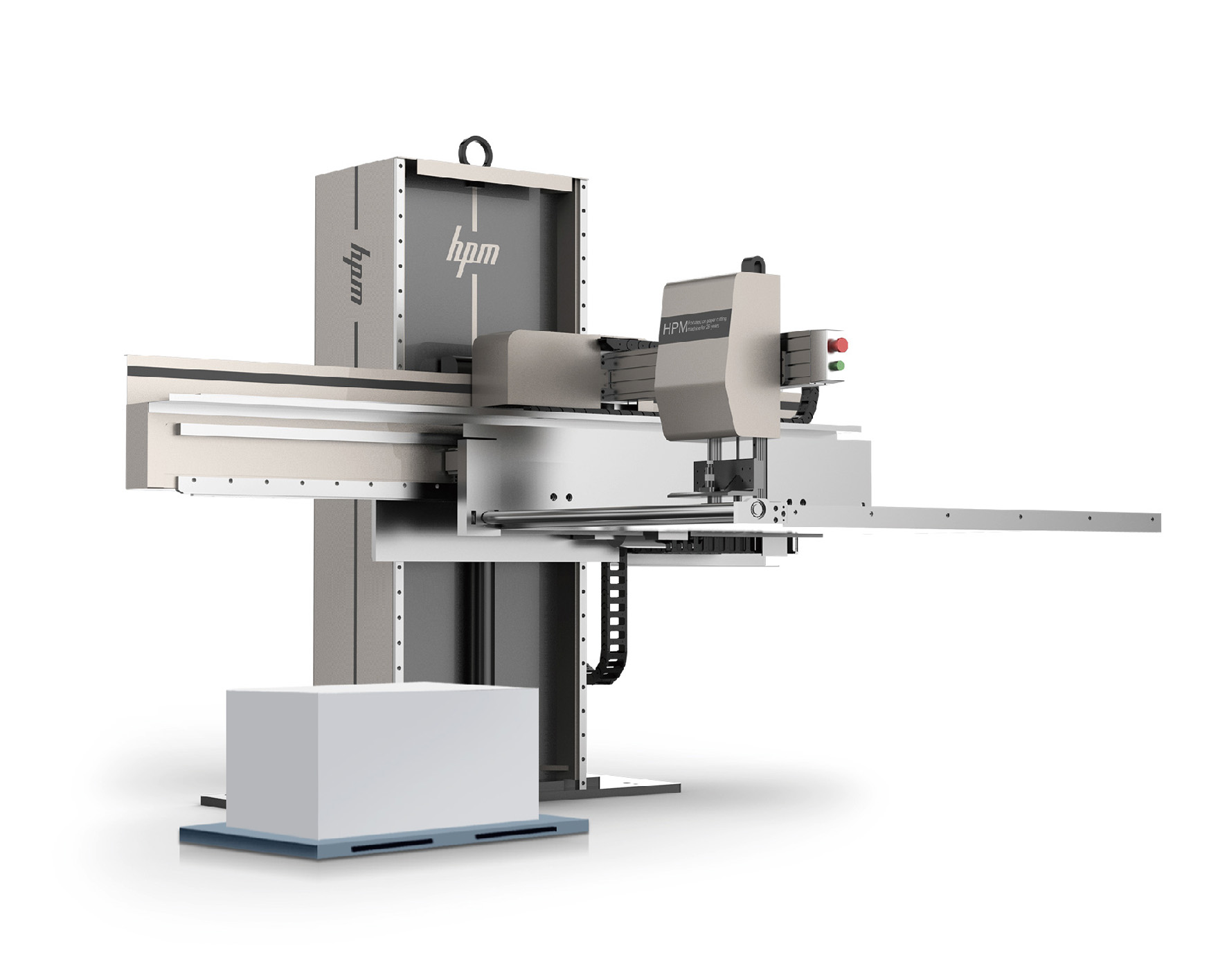

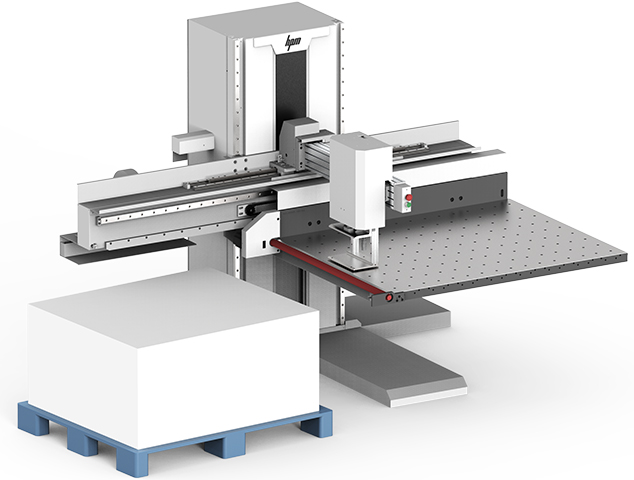

Intelligent automatic paper loader with automatic grab paper transfer the paper sheets according to the set height from paper stack to the work table automatically by paper roll. So the whole paper process accurately and efficiently reduce labor intensity improve work efficiency .
Model | QZ1450 | QZ1650 | QZ1450H | QZ1650H | |
| Loading paper | front | front | rear | rear | |
Plate size | mm | 1300*1600 | 1600*2000 | 1300*1600 | 1600*2000 |
Max loading size | mm | 1100*1280 | 1400*1600 | 1020*1300 | 1320*1680(168) 1320*1800(188) |
Min loading size | mm | 450*560 | 520*620 | 450*560 | 520*620 |
Max loading height | mm | 165 | 165 | 165 | 165 |
Min loading height | mm | 30 | 40 | 30 | 40 |
Max stacking height | mm | 1580 | 1580 | 1580 | 1580 |
Max loading weight | kg | 350 | 450 | 350 | 450 |
Air demand | bar | 6 | 6 | 6 | 6 |
Air consumption | l/min | 3 | 3 | 3 | 3 |
Main power | kw | 5.5 | 5.5 | 6 | 6 |
Max loading speed | sec | 25-40 | 25-40 | 25-40 | 25-40 |
Noise index | db | 60 | 60 | 60 | 60 |
Gross weight | kg | 2800 | 3080 | 2800 | 3080 |
Packing size | mm | 3100*2500*2580 | 3700*2900*2580 | 3100*2500*2580 | 3700*2900*2580 |
