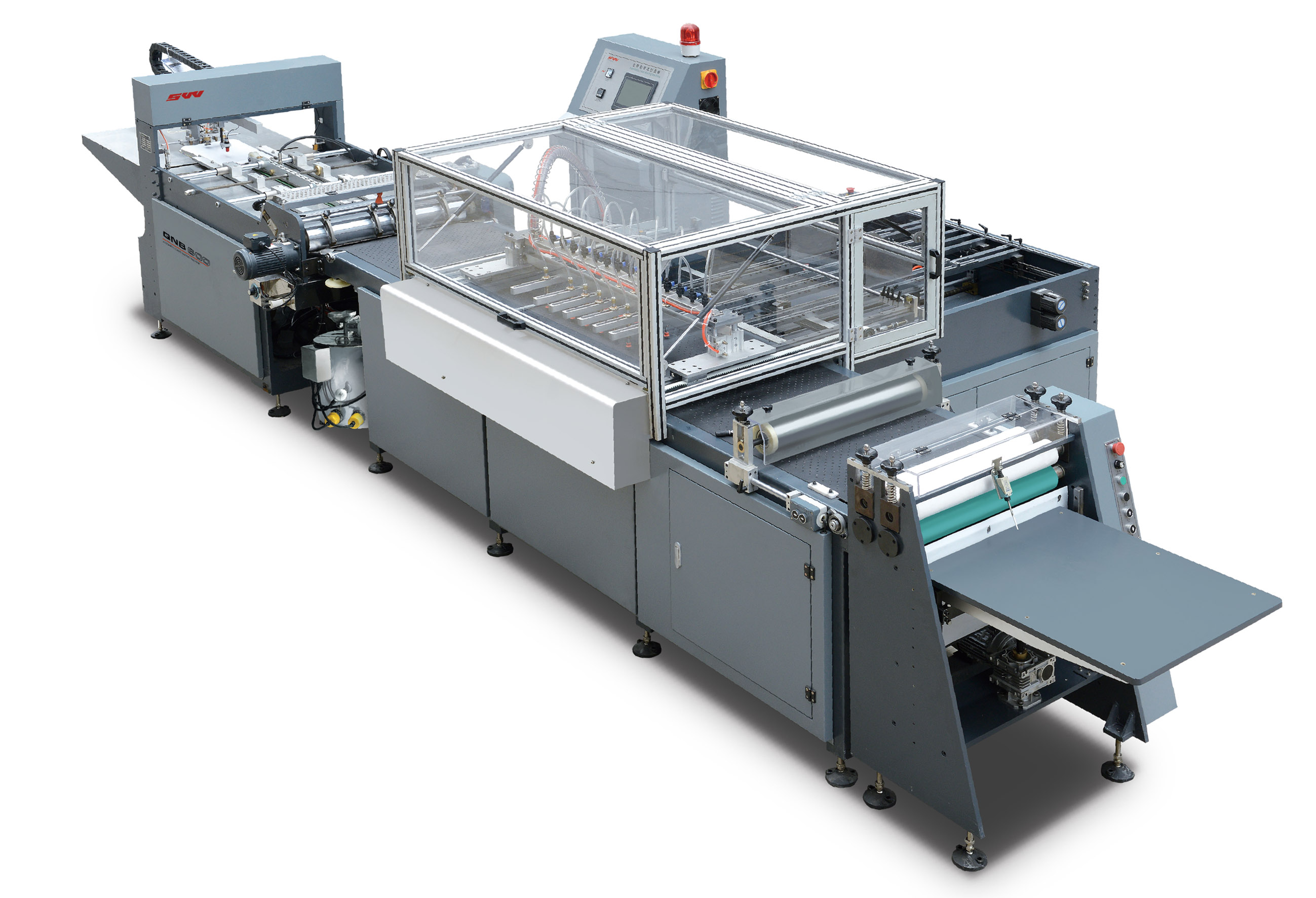

QFM-460/600 new automatic lining machine used to make lining for perfect bok covers cover of notebook calendars hanging calends cover of box file etc.
1. It adopts high speed automatic paper feeding system which is controlled pneumatically and its structures simple and reasonable.
2. New designed copper scraper cooperates with the rubber more compactly effectively avoiding paper winding and the copper scraper is more durable.
3. It adopts stacker with lift and down automatically so that the collecting is more orderly.
4. Paper feeding and positioning system adopt imported high precise photoelectirc control device to make the paper and cardboard location more accurate.
5. It adopts PLC control featuring in simple operation the troubles are displayed directly on the HMI which helps the operator easily remove them.
| Model | QNB-460 | QNB-600 |
| Length of paper | 200-830mm | 200-1030mm |
| Width of paper | 120-480mm | 120-600mm |
| Thickness of paper | 80-300g/m2 | 80-300g/m2 |
| Thickness of cardboard | 1-3mm | 1-3mm |
| Speed | 0-25pcs/min | 0-25pcs/min |
| Power | 10kw | 11kw |
| Weight | 2000kg | 2200kg |
| Dimension | 4900*2000*1500mm | 6800*2600*1500mm |

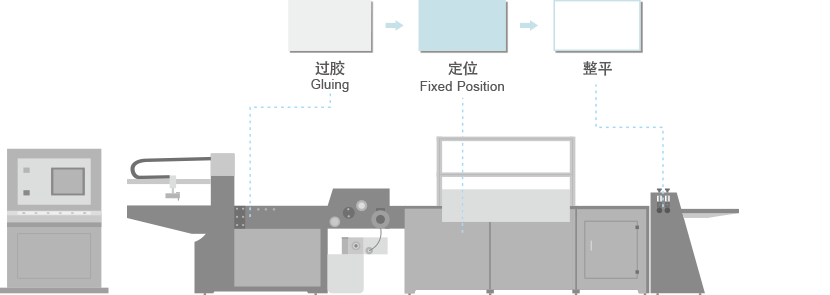

Combined craft flow line:
