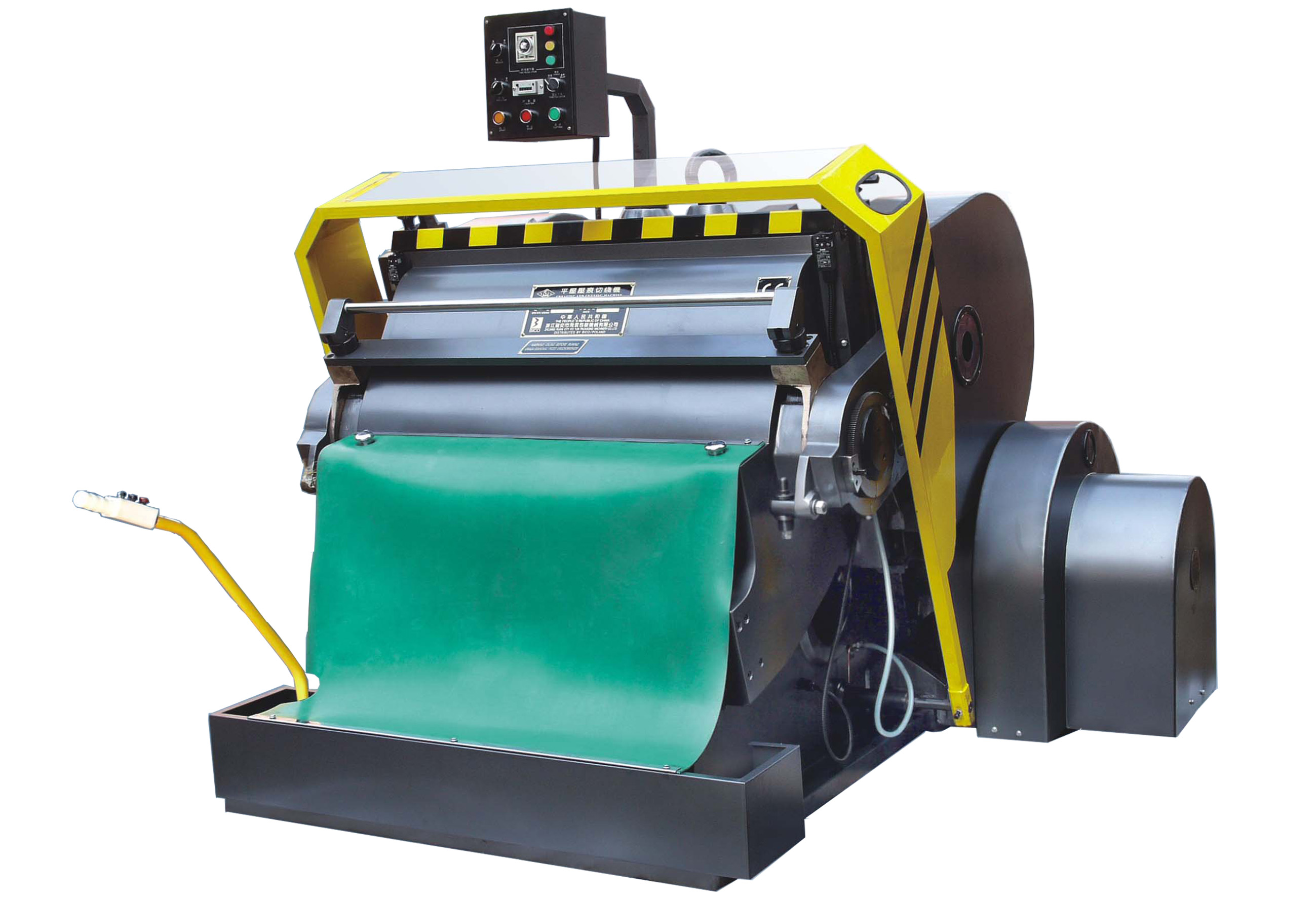

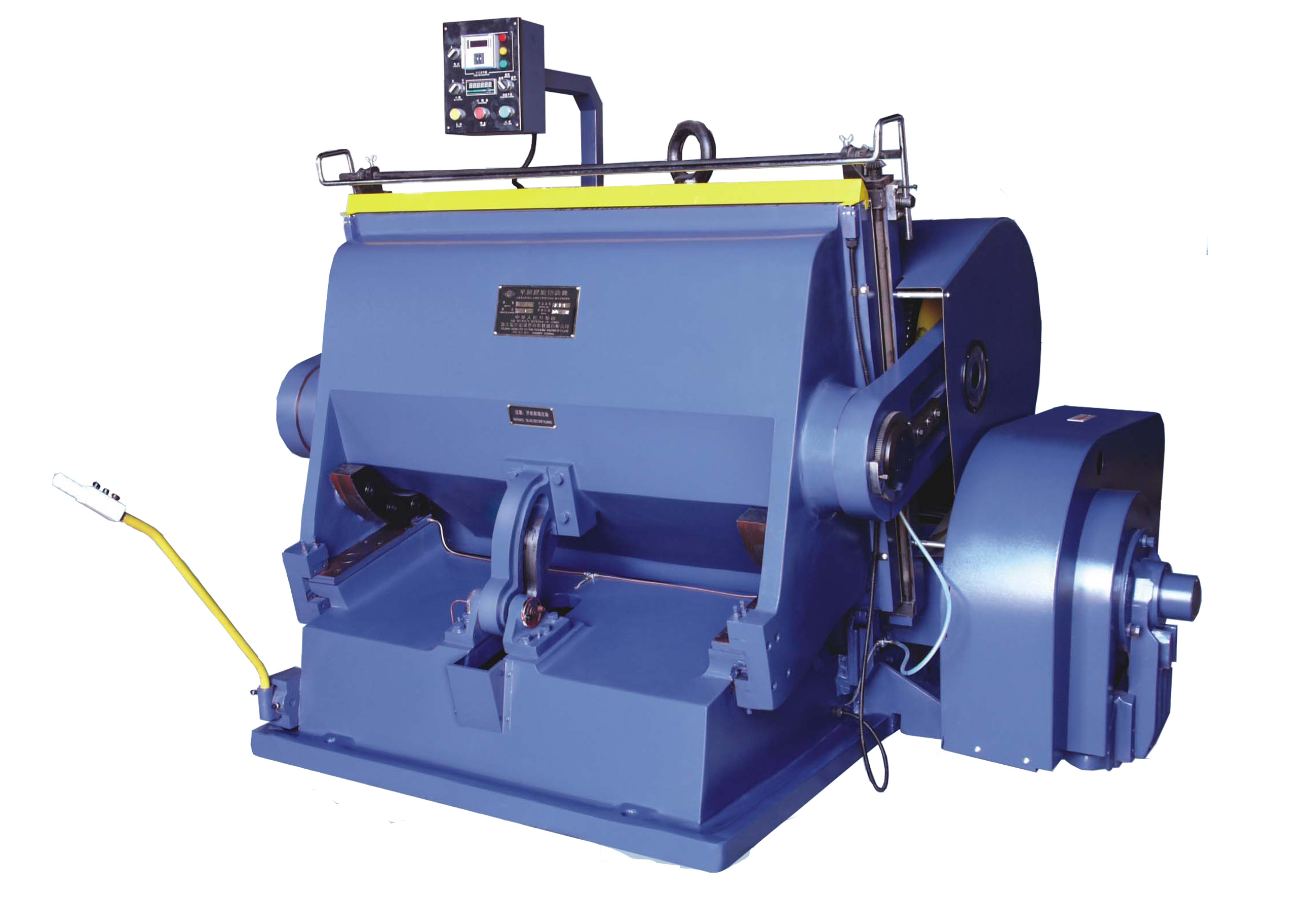

ML CREASING AND DIE CUTTING MACHINE

Introduction:


ML series creasing and die cutting machine are special equipments for a wide range of materials, such as cardboard, corrugated board plastic and leather. They are applicable to the fields of printing packaging decoration and plastic industries.

1.Sliding bearings are made of high quality alloy cooper thus to get effect of anti-friction and shake reducing.

2. Flywheel is with big moment of force and large pressure

3. High strength due to one piece casting by using top ranking material for machine body

4. Single plate electromagnetic clutch is sensitive and reliable

5. With functions of single continuous and opening dwell operation dwell range is adjustable

6. Operating position is reasonably arranged moving-bed can be opened to its optimum

7. Central lubrication system guarantees fine lubrication and reduce friction

8. Safety system is reliable

9. Electrical system is designed in conformity with CE standard.


Technical parameter:




ModelInter chase size SpeedMax rule length PowerWeight
ML-25002500*1400mm11±2 strokes/min <75m18.5kw19000kg
ML-20002000*1400mm13±2 strokes/min <72m15kw15000kg
ML-18001800*1300mm13±2 strokes/min <62m11kw14200kg
ML-16001600*1250mm13±2 strokes/min <50m11kw12000kg
ML-15001500*1080mm14±2 strokes/min <45m7.5kw7800kg
ML-14001400*1000mm15±2 strokes/min <45m5.5kw7000kg
ML-13001300*920mm15±2 strokes/min <40m5.5kw6000kg
ML-12001200*830mm21±2 strokes/min <32m4kw5000kg
ML-11001100*800mm21±2 strokes/min <32m4kw4500kg
ML10401040*720mm21±2 strokes/min <32m4kw4000kg
ML-930930*670mm23±2 strokes/min <25m3kw3000kg
ML-750750*520mm25±2 strokes/min <15m2.2kw2000kg
