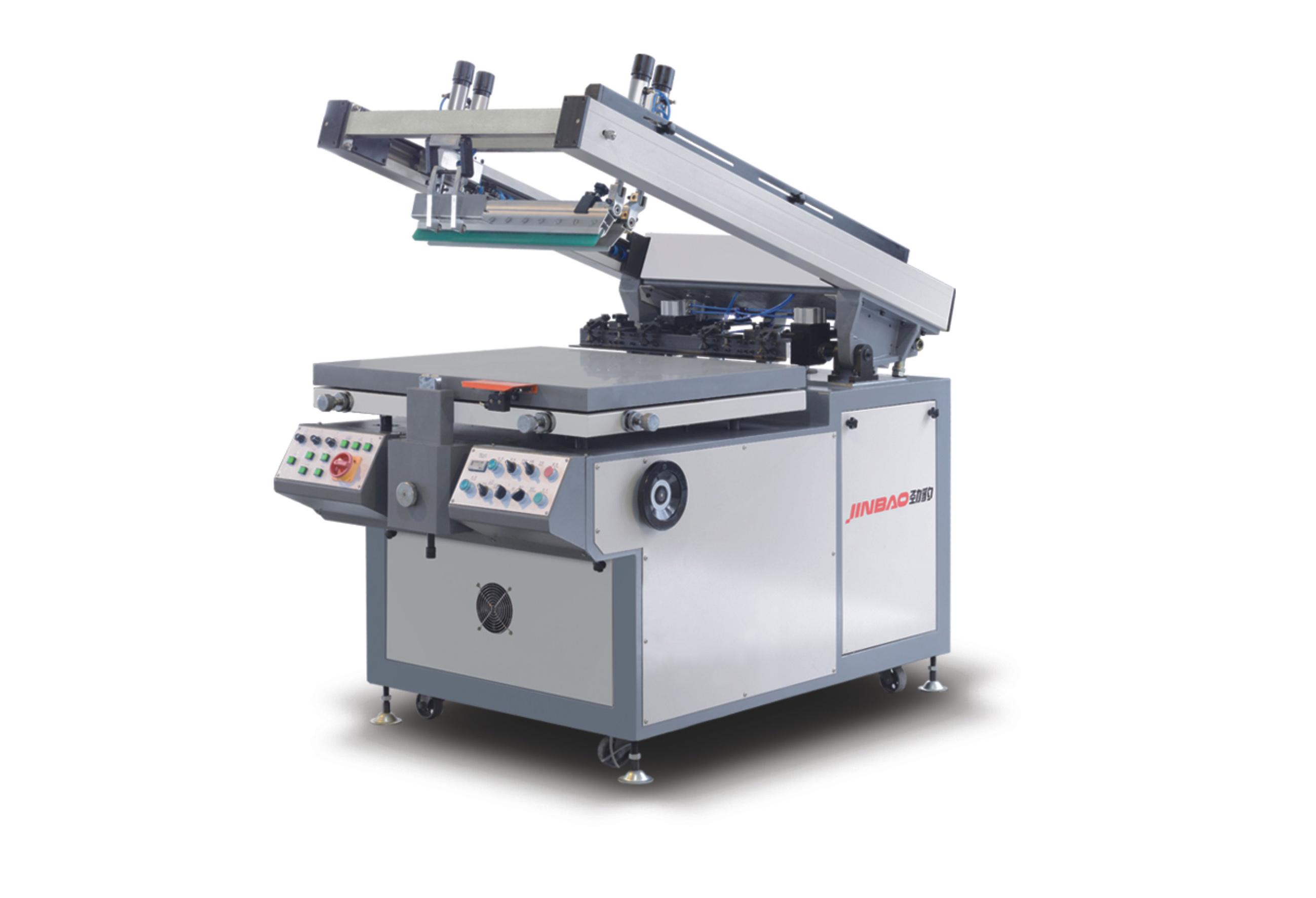

JB-8060A HIGH PRECISION SCREEN PRINTING MACHINE

Introduction:


1 .Printing course is controlled by servomotor (Suitable for printing high glutinosity ink)

2. It is easy to acquire the high precision printing products due to synchronized operation of the instant off-network structure and scraper.


Technical parameter:


Max. printing dimensions

800x600mm

Max dimensions of the frame

1100x950mm

Min. dimensions of the frame

600x550mm

Max. printing speed

1200pcs/h

Height of instant off-network

0-25mm

Use level of compressed air

12L/min

Skewness of the scraper

0-60°

Air pressure

900kg0.4-0.6mpa

Weight(about)

600kg

dimensions of workbench

900x800mm

Printing thickness

~35mm

Voltage machine

3P 50HZ 380V 2.2KW

Outside overall dimensions

1600x1150x1450mm
