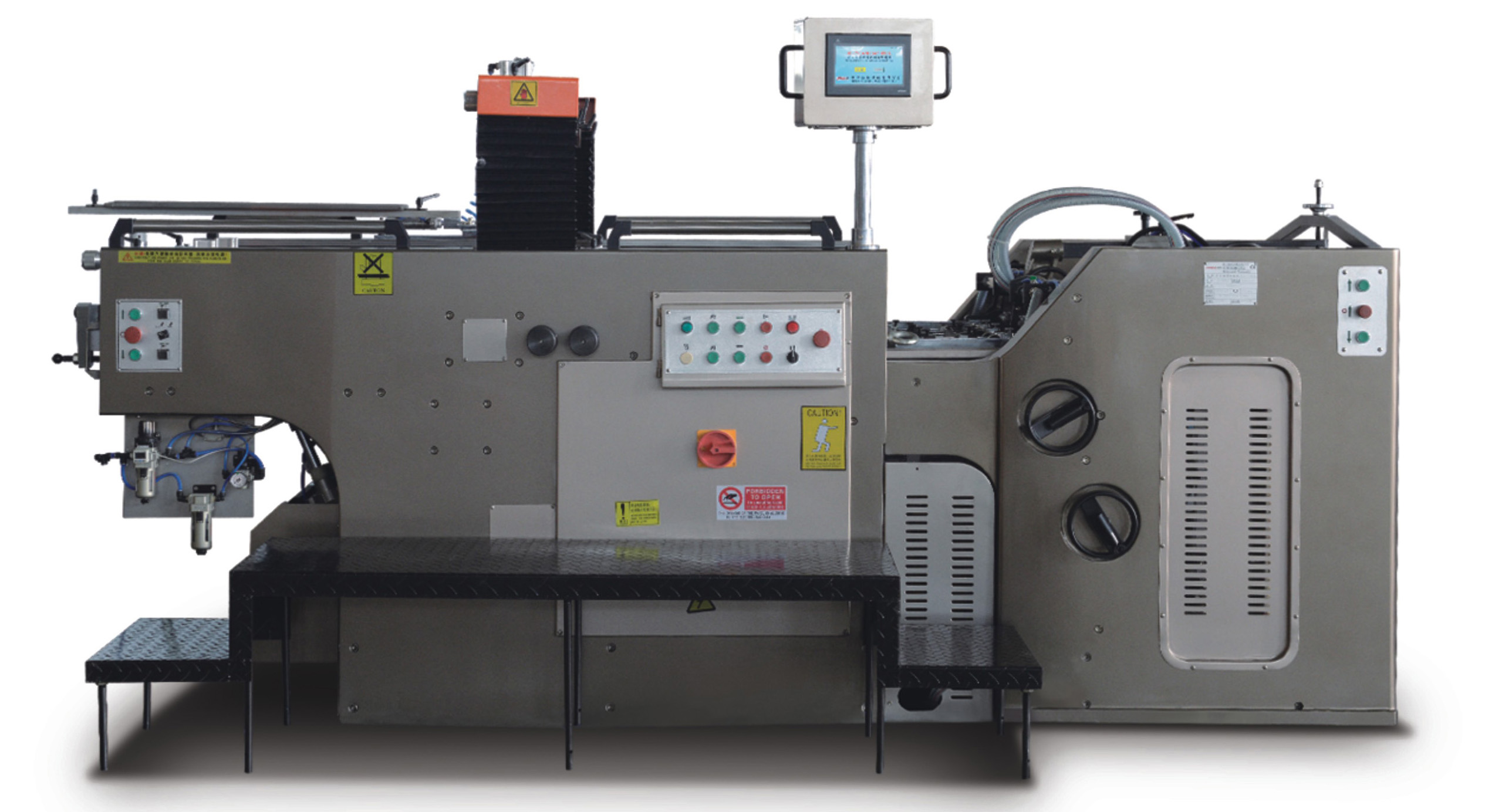

JB-A series full automatic stop cylinder screen press which adopts the classical stop cylinder technology with the advantages such as paper located exactly and steadily high precision high speed low noise high degree automatization and so on it is suitalbe for printing on ceramic and glass applique electron industry(film switch flexible circuitry meter panel mobile telephone) advertisement packing and printing brand textile transfer special technicas etc.
| Model | JB-720A | JB-800A |
| Max printing size | 720×500mm | 800×590mm |
| Frame size | 880×880mm | 1070×1070mm |
| Paper thickness | 108-400g/m2 | 108-400g/m2 |
| Border | 〈10mm | 〈10mm |
| Printing speed | 1000-3600pcs/h | 1000-3300pcs/h |
| Power | 3P 380V 50Hz 10.5kw | 3P 380V 50Hz 10.5kw |
| Total weight | 3500kg | 4000kg |
| Overall size | 4050×2240×1680mm | 4350×2580×1680mm |
