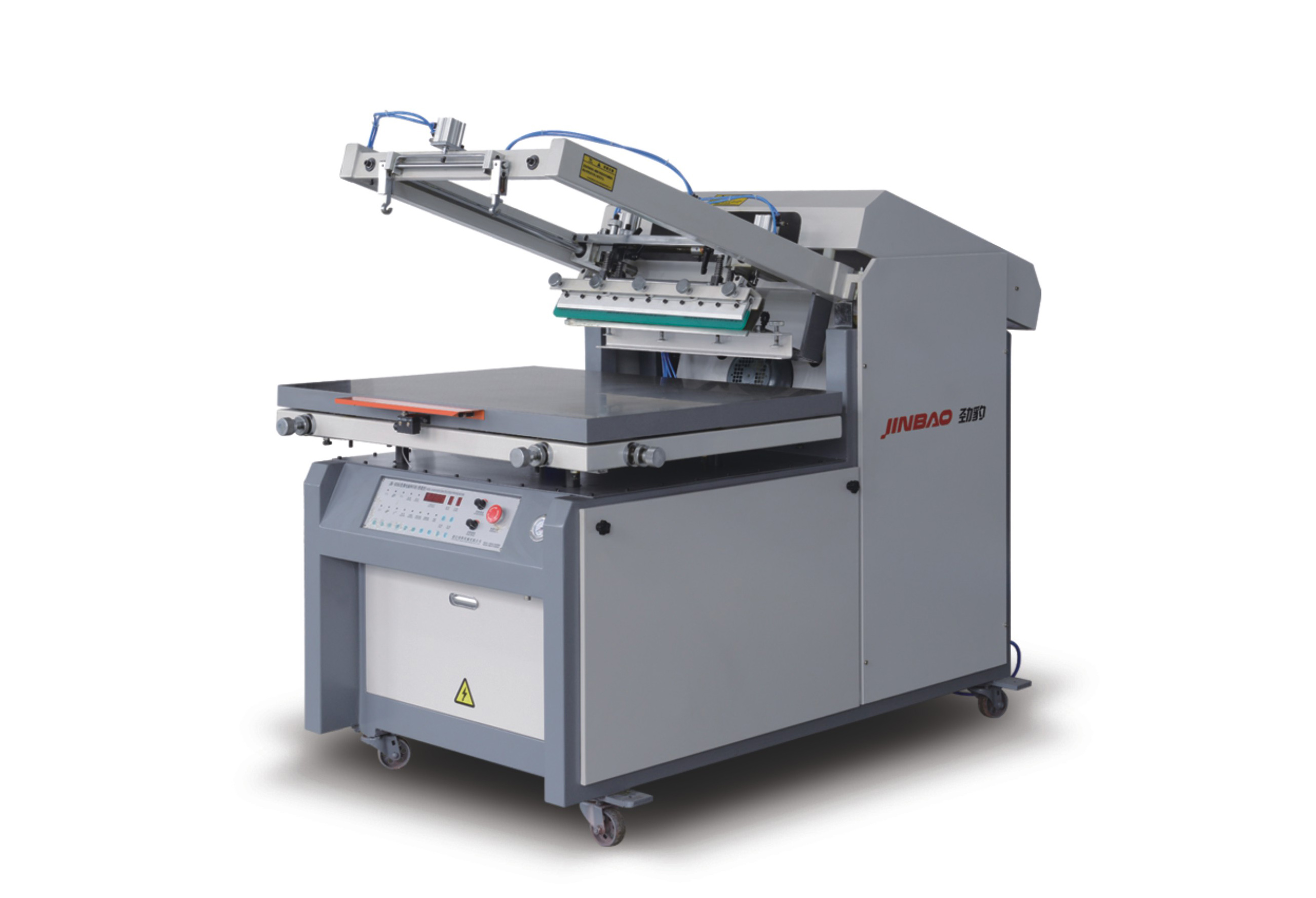

JB-4060/6080/6090 MICROCOMPUTER SCREEN PRINTING MACHINE

Introduction:



1 . Adopting double workbenches with the advantages of simple operation and precise orientation. Power system is driver by electric motor with adjustable frequency

2. Printing and inking adjust speed separately. Suitable for printing various planar matters.


Technical parameter:


Model

JB-4060

JB-6080

JB-6090

Max.   Printing acreage

400x600mm

600X800mm

600x900mm

Print   station acreage

600x700mm

800x900mm

800x1000mm

Printing   speed

1300pcs/h

1200pcs/h

1200pcs/h

Max.   dimension of the frame

700x800mm

900x1000mm

900x1100mm

Weight(about)

450kg

550kg

600kg

Dimensions   of machine

1500x800x1250mm

1800x1100x1300mm

1800x1200x1300mm

Printing   motor

0.75kw

0.75kw

1.1kw

Printing   shaft

0.75kw

0.75kw

0.75kw

Wind   machine

0.75kw

1.1kw

1.1kw

Power

3P 380V 50HZ 2.25kw

3P 380V 50HZ 2.6kw

3P 380V 50HZ 2.95kw
