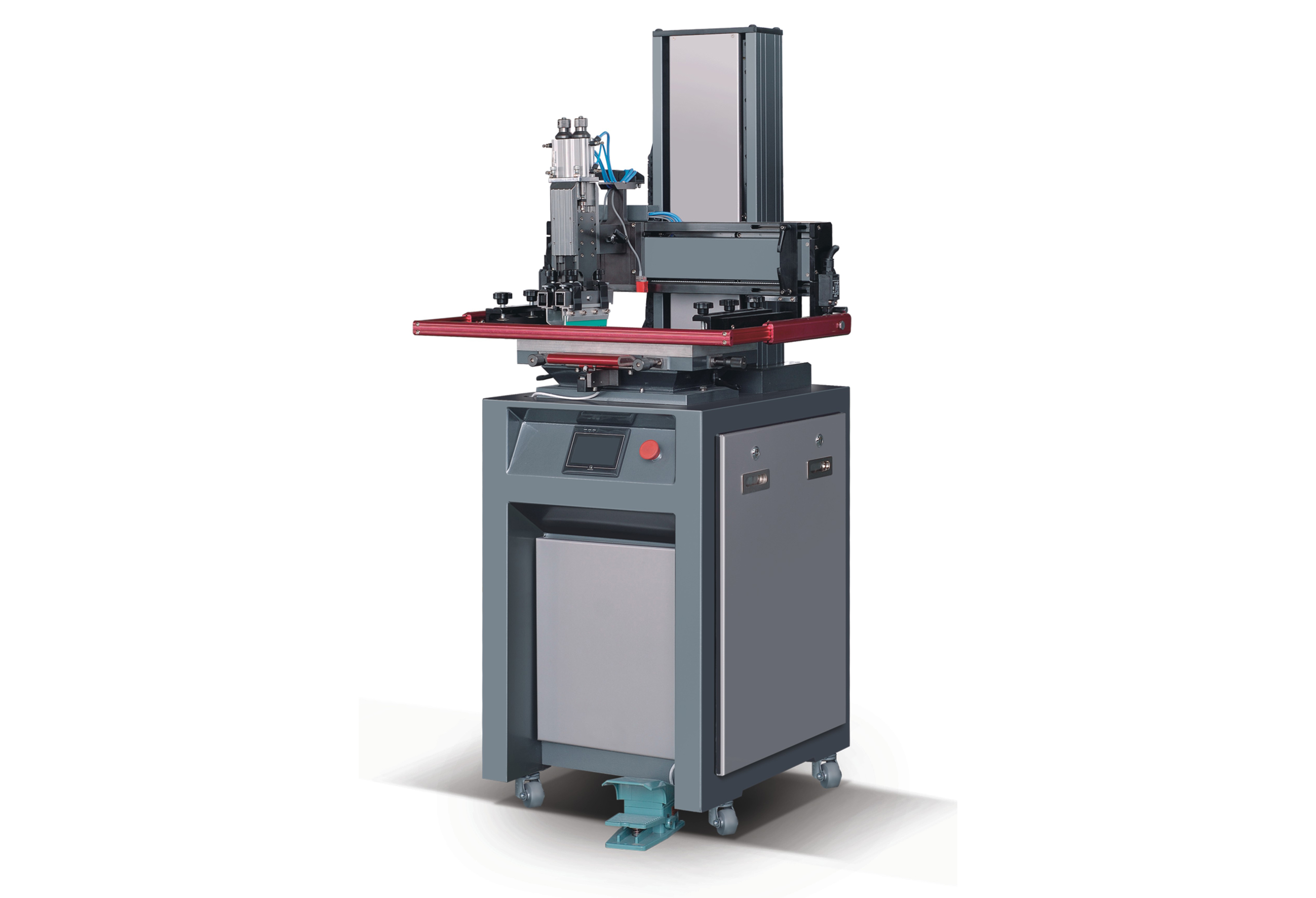

It is mainly for printing on small size film sheet board such as FPC IMD MEMBRANE mobile glass PC glass solar silicon chip biglogical test piece opto electronics electric elements etc
| Model | JB-25CA | JB-45CA |
| Max printing size | 200×250mm | 300×450mm |
| Max frame size | 380×530mm | 500×750mm |
| Min frame size | 240×350mm | 250×550mm |
| Working table size | 250×400mm | 400×600mm |
| Capacity | 800p/h | 800p/h |
| Printing blade speed | 100-500mm/sec | 100-500mm/sec |
| Frame height | 20-30mm | 20-30mm |
| Substrate thickness | -50mm | -50mm |
| Frame rising height | 300mm | 300mm |
| Frame adjust scope | ±10mm | ±10mm |
| Power source | 1p 220v 50hz 0.83kw | 1p 220v 50hz 0.83kw |
| Air source | 5-7kgs/cm2 | 5-7kgs/cm2 |
| Weight | 190kg | 250kg |
