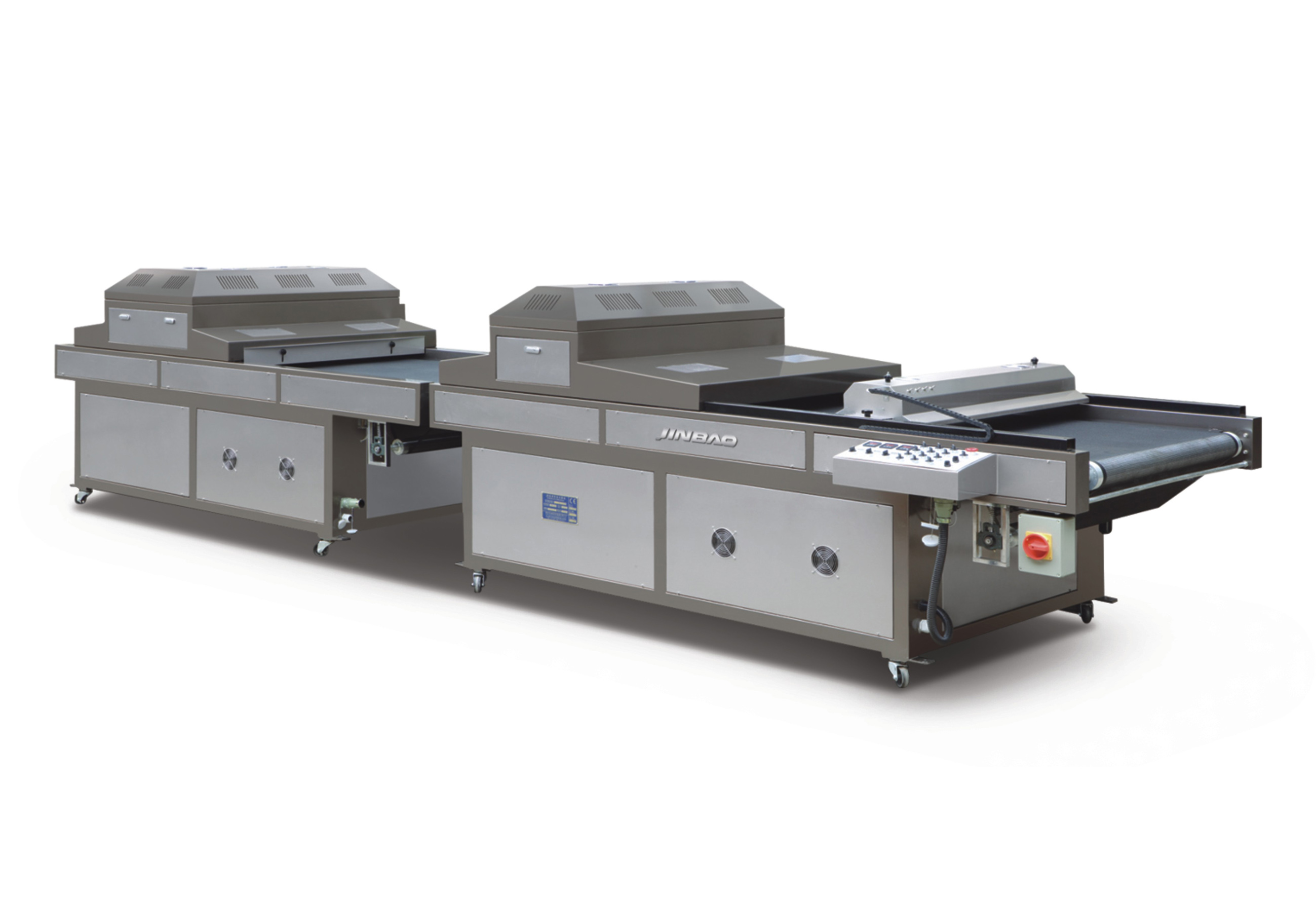

JB-1050XH SNOW UV CURING MACHINE

Introduction:



JB-1050XH is newly designed specially for making snow effect on cigarette and wine packing cases, which also can be used with full automatic screen press or other equipments. It also can be used for drying, dehumidifying and curing other special UV ink of screen printing, dyeing, electroplating and electron circuit board etc.

1. Three groups of UV lamps are independently. Three choice for the UV intensity separately. The digital meter shows the intensity and life timely.

2. Two groups of conveying system are independent, convey belt speed frequency controlled, the highest speed can be up to 60m/minutes.

3. Three groups of lamps have independent heat removal system, equipped two groups of adsorption.

4. It has conveyor belt rectify a deviation system with adsorption; adopt imported "TEFION" belt.


Technical parameter:



Model

JB-1050XH

Speed

60M/minute

UV lamp   power

7.2KWx1Pcsx3Choice


8.8KWx2Pcsx3Choice

Wrinkle   lamp power

80Wx3Pcsx2Choice

Effective   curing width

1100mm

Conveyor   motor power

400Wx2

Adsorption   of fan power

1.1Wx2

Exhaust   fan power

0.75Wx2

Weight(about)

2200kg

Overall   size

6030X1700X1380mm
