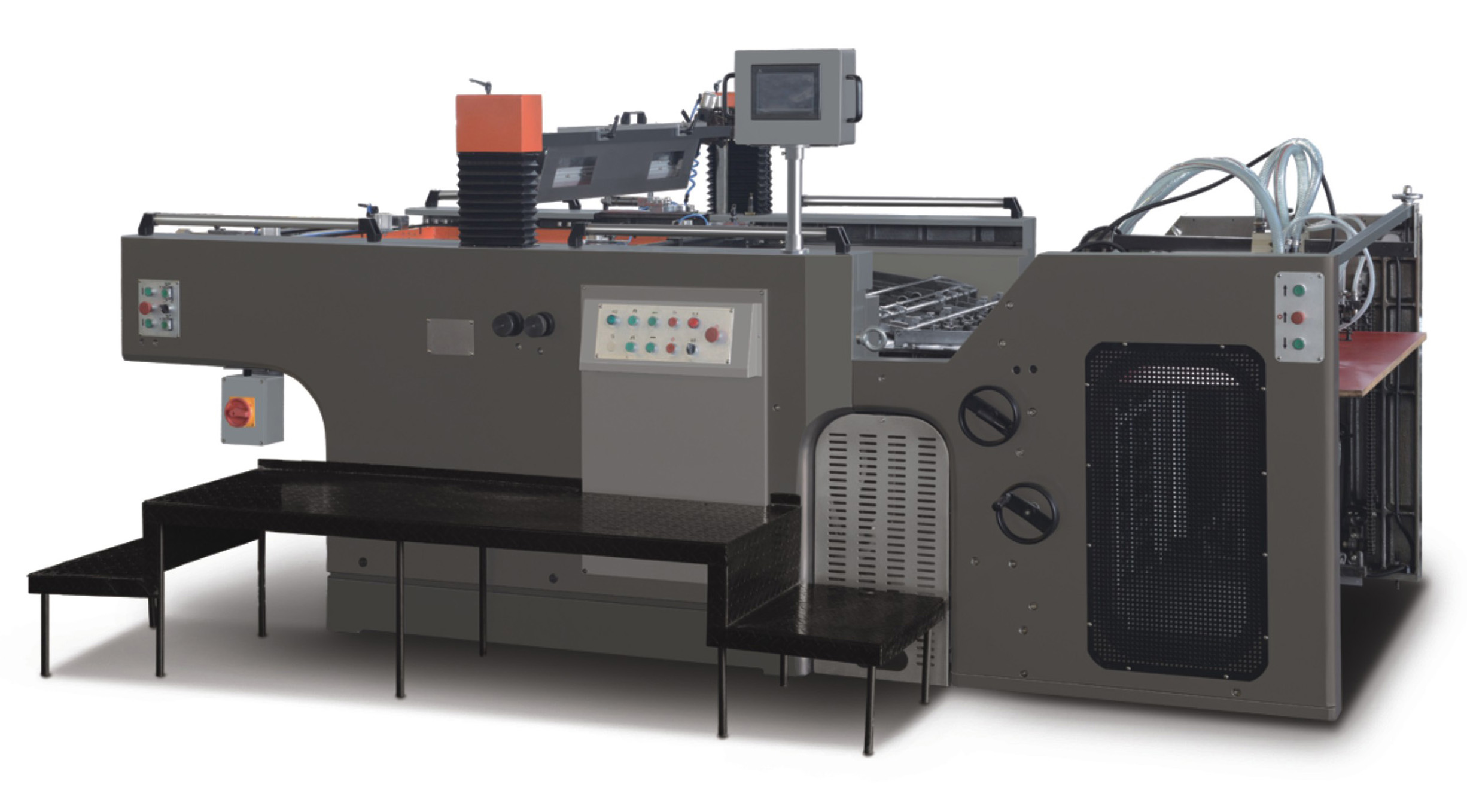

JB-1020A FULL AUTOMATIC STOP CYLINDER SCREEN PRESS

Introduction:


JB-A Series full automatic stop cylinder screen press which adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree automatization and so on, it is suitable for printing on ceramic and glass applique, electron industry (film switch, flexible circuitry, meter panel, mobile telephone), advertisement, packing and printing, brand, textile transfer, special technique etc.

1.Classical stop cylinder mechanism, cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision; at the same time, gripper of cylinder and pull side-lay both have the magic eyes for supervising if the printing stock is in correct place, which can reduce the waster effectively.

2.The bottom of convey table with vacuum adsorption, assembled with the pull and press mechanism, ensure printing stock deliver smoothly.

3.Two cams separately control the movement of squeegee and ink-return blade; squeegee with the pneumatic pressure kept device, the printing graphics is more clearly and the ink layer is more well-proportioned.

4.The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder.

5.Main transmission and main parts lubricate automatically, prolong the using precision and machine life in effect.

6.The whole machine controlled by PLC, can choose touch screen for operating, which is very easy and high degree automatism.

7.It can be used with JB Series screen drying machine, UV dryer, UV & IR dryer and automatic stacker to form the full automatic screen printing line.


Technical parameter:



ModelJB-720AJB-800AJB-1020A
Max.paper dimension720X520mm2800X610mm21020X720mm2
Min.paper dimension350X270mm2350X270mm2560X350mm2
Max.printing dimension720X500mm2800X600mm21020X710mm2
Paper thickness108-400g/m2108-400g/m2120-400g/m2
Border≤10mm≤10mm≤10mm
Max.printing speed1000-3600pcs/h1000-3300pcs/h1000-3000pcs/h
Power3p 380v 50Hz 8.89KW3p 380v 50Hz 8.89KW3p 380v 50Hz 14.64KW
Weight(about)3500kg4000kg5000kg
Overall  dimensions4050X2240X1680mm4350X2580X1680mm4650X2800X1680mm
