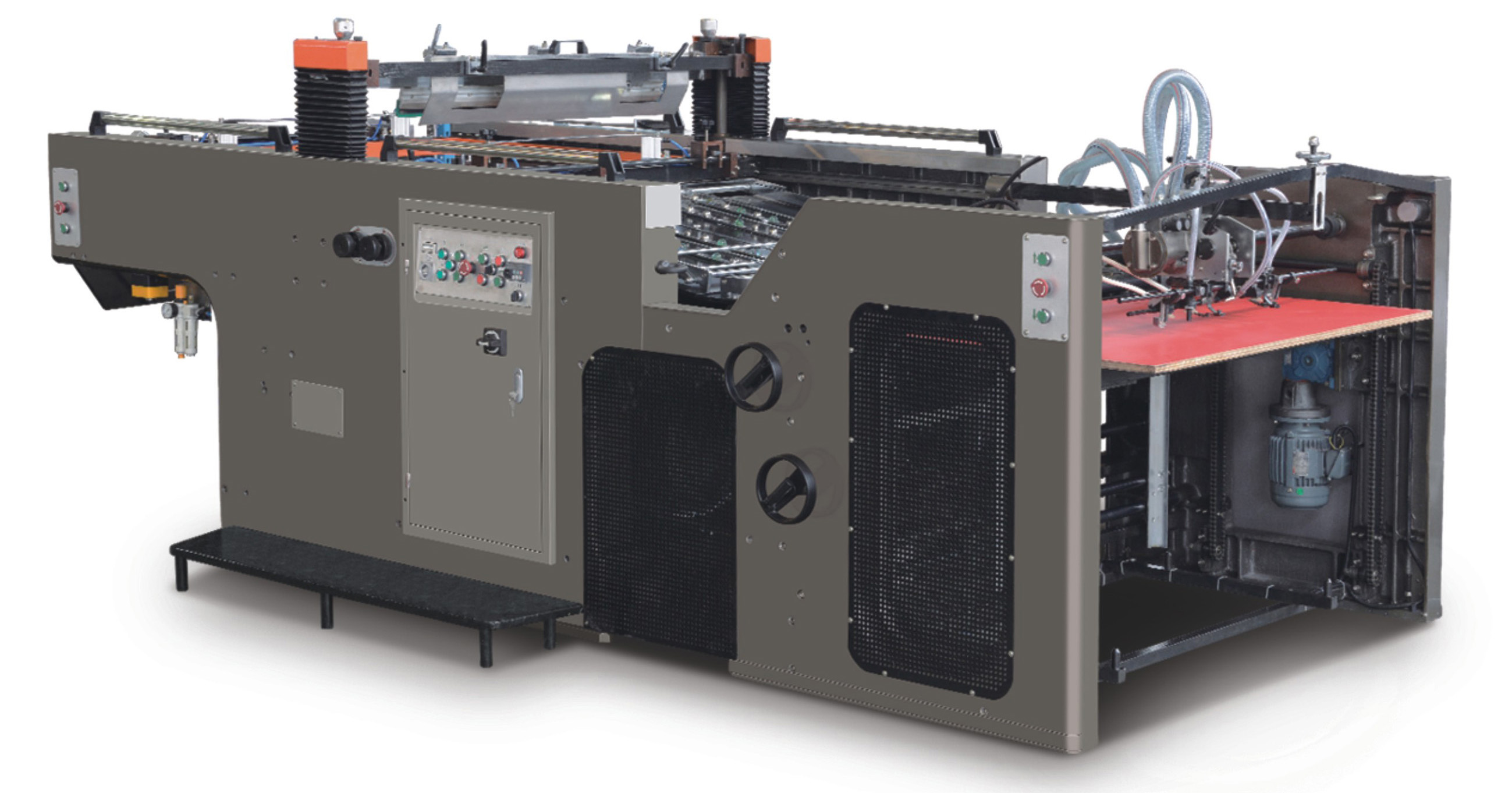

JB series Full automatic Cylinder Screen Press is a kind of automatic flat screen press with high efficiency (more than diploid printing speed over the flat one), high quality (linear touch, more suitable for spot printing), high precision ( usually the precision of overprint is less than 0.10mm), it is suitable for printing in bulk of high precision screen productions. It is suitable for 120-350g materials, especially for paper productions (such as cigarette or wine case, toiletry case, present case, brand, poster, other paper packing production and special fake against materials etc),flower paper, soft plastic etc.
Model | JB-720 | JB-780 | JB-1020 |
Max paper size | 720X520mm | 780X540mm | 1020X720mm |
Min paper size | 350X270mm | 350X270mm | 560X350mm |
Max. printing dimension | 720X500mm | 780X520mm | 1020X700mm |
Border | ≤13mm | ≤13mm | ≤13mm |
Paper thickness | 108-350g/m2 | 108-350g/m2 | 120-350g/m2 |
Printing plate dimension | 800X880mm | 940X940mm | 12800X11400mm |
Max. printing speed | 1000-3600pcs/h | 1000-3300pcs/h | 1000-3000pcs/h |
Weight(about) | 3500kg | 4000kg | 5000kg |
Power | 6.93kw | 6.93kw | 11.09kw |
Overall dimensions | 4050X1810X1480mm | 4150X1870X1480mm | 4600X2310X1520mm |
 |  |
| Paper feeder part | Paper load part |
 |  |
| Front guide and side guide | Paper exit part |
