HSC1500SS/1700SS/1900SS HIGH PRECISION SMART DOUBLE ROTARY SHEET CUTTER

Structure Characteristic:


HSC1500SS/1700SS high precision double rotary sheet cutter is adopted German technologh and combined with many years of experience of our company in production of sheet cutter machine, research and development of high precision, stable running, energy saving and efficient new products.

Widely used cardboard paper, coated paper, kraft paper, culture paper, double gummed paper, gloss photo paper, gold and silver cardboard, aluminium paper, laser paper, packaging paper etc.

Knife roller adopts double rotary design, cutting force is less, paper is cut clearly, high efficiency and steady running. German precision bearings and cutting knife cut off paper with high precision;Touch computer interface control easy to operate; Reasonable design of inflection device can effectively remove the curled paler, make the paper more smooth more stablility of the paper roll tension.

HSC1500SS/1700SS high precision double sheet cutter machine is a paper precessing machine with high efficiency, high stability,Paper don't need to be trimed again after cutting,can be directly used on printing press and it is widely used in paper making, paper products processing and printing industry.

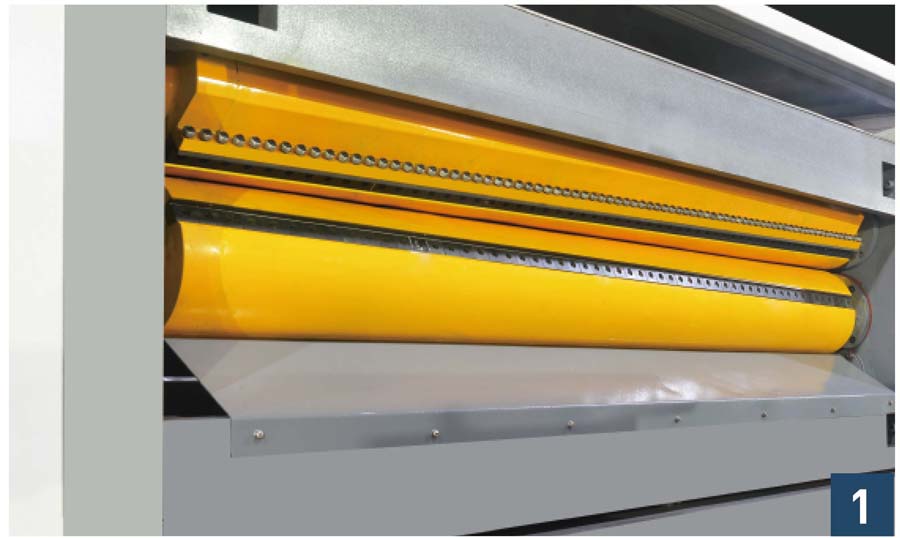

Double rotary sheeter group:

Precision rotary sheeter groove is processed by
imported advanced processing center with high
accuracy and stability, cutting paper without
burrs. high quality gear box, using no clearance
design gear, meshing noise is low, life is twice
longer than the traditional gear box. Good castd
uctile iron wall and supporting parts, after
aging
treatment again by imports of large
vertical
machining center, precision high level

requirements processing error is smaller,
the
operation of the machine more stable
and
reliable.

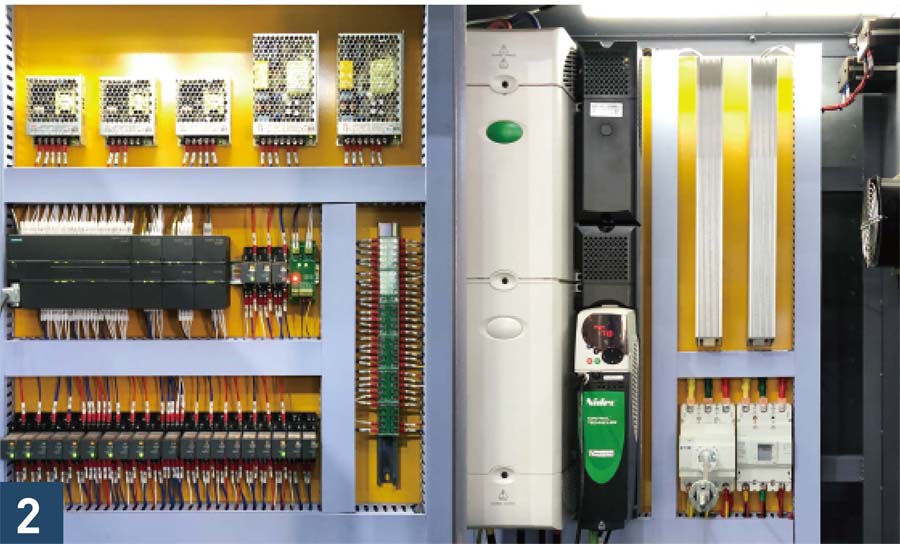

Electric control part:

German imported Siemens PLC and the
united
states Emerson servo drive control
system make the
operation simpler and
automatic. Cutting length
product number
and the total mumber of finished
products
etc can be directly input and displayed on
touch screen timely. The american CT servo
drive
rotary knife shaft and cooperate with
energy storage
cabinet effectively reduce
power consumption
improve efficiency
reduce production cost.






Transportation part:

Patent device A precision structure can adjust
the synchronous deceleration wheel easy to
operate,it's effective to protect surface of
paper so there will be no scratching on
surface and also will not have the facula
whenever speed is high or low.


Option items:


1. Automatic splicer:

High performance automatic twin-head paper splicer machine. The control system is from Taiwan with high flexibility and long life and automatic splicer is suitable for broken paper sensed easily for operation for 80 to 400 GSM paper.

 2.   Slitting & trimming knives automatic change system from america maxcess

The slitting & trimming knives are rapidly automatically changed by a pair of smart and precocious mechanical hands which can greatly improve your production efficiency and its prodcution performance based on frequent changing size of paper. According to different cutting requirements, it can coordinate with different knife type to form a different cutting solutions, such as electronic knife automatic type, manual type siamese type press-cutting type etc.

3. Non stop paper collection

Non stop paper collection system a self designed and own independent intellectual property rights is able to achieve non-stop paper collection function.  It consists of short inserting plates a long inserting plate and a friction-recuction belt etc when the paper pile on the layboy is full the short inseting plates quickly reach out to lift at end of the paper that will enter the layboy and then the long inserting plate hold the paper that has been raised by the short ezpansion plates. This moment the long insetting plate is served as a delivery board. Operator or other automatic facility can clean up the lifting platform so that non stop and continuous paper collecting can greatly improve the production efficiency and reduce production costs.




Main technical parameter:



Model of cutting paperdouble rotary sheeter
Reference weight of cutting paper150-1000GSM
Max roll diameter1800mm
Max paper cutting width1500/1700mm
Total power90kw
Cutting length range400-1650mm
Cutting accuracy ±0.15mm
Request for air 0.8MPa
Weight28000/31000kg
Dimension18241*5900*2540mm


Cutting speed for reference:


Cutting length(mm)
m/mincuts/min
≥1600210〈131
1400-1600260162-185
1200-1400280200-233
1000-1200300250-300
800-1000300300-375
700-800300375-400
650-700230328-353
600-650180246-300
550-600160266-290
500-550120218-240
450-50090

180-200

400-45070155-175
