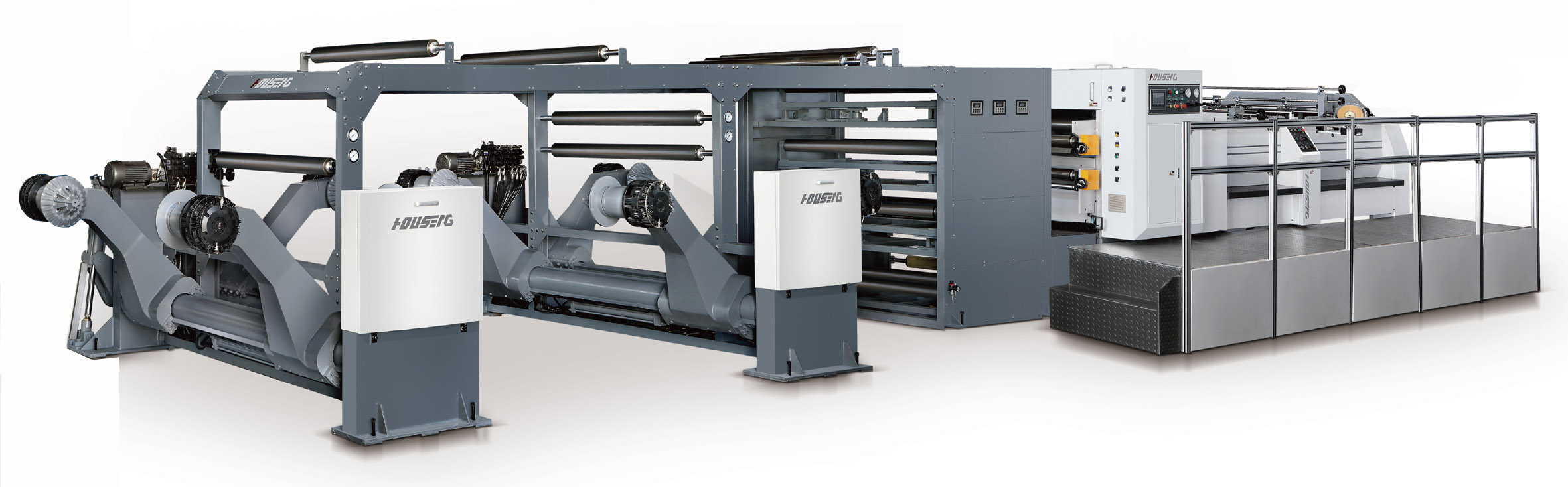

HSC-1400/1700/1900 SERVO DRIVEN HIGH PRECISION SHEET CUTTER

Structure Characteristic:


HSC web cutting machine apply the advanced technique of Taiwan and Britain, The machine is transmitted by assisting motor.

The speed of cutting paper is  fast and stable.
Germany precise bear and cutting knife assure the high cutting precision.
Touch screen computer interface control, simple operation, reasonable structure, anti-music stands, to ensure smooth paper.
This machine is the paper processing machine which is very popular in the paper making and printing industry and will improve the efficiency and benefit for your company to a large extent.


The content of standard configuration:


1. High-precision single knife cutting machine

2. Prismatic adjustment system for paper
3. Anti-statistic equipment
4. Middle slitting and waste collection  system
5. Automatic counting and label  inserting equipment
6. Paper transporting equipment
7. Automatic paper trimming and collecting machine
8. Electrical controlling system
9. Driving motor
10.Accessory
11. Double lime pneumatic shaft less paper rack
12. Automatic directing and paper tension controller
13. Automatic vacuum



1.jpg 2.jpg

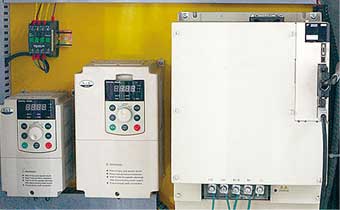

1. Electronic control system

The man-machine interface and Siemens S7-200 processor, mainly used for the input of production data, monitoring   of equipment operating status and system fault indication. The rotary horizontal cutter is driven by Japanese Yaskawa SGD7S-590A00A drive with fast operation and   accurate positioning, based on the production and actual speed from pulling roller feedback by encoder.

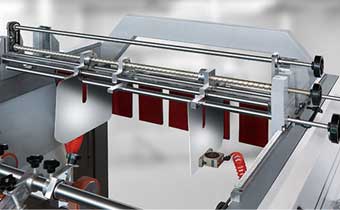

2. Automatic pile allgnment device

Lift stacked set paper sets, the paper stack to a considerable height,   that is automatically dropped. The stacker table has three sides shake   finishing function ,the side of the motor to drive the paper, the paper,   on both sides by high-quality pneumatic by hand wheel to adjust the   amplitude of the paper to improve the simplicity and safety of the   operation.

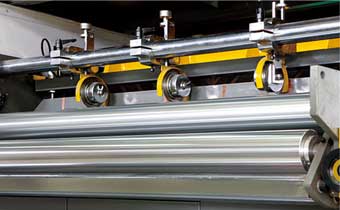

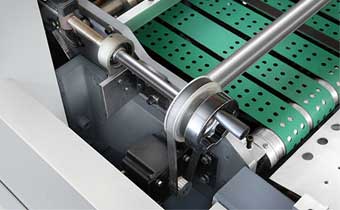

3. Slitting knife

Three sets of slitting knife is used to trim and middle slitting.

4. Automatically adjust the angle

The precision of the stepper motor is controlled by the length of the   cut sheet precision screw adjustment the inclination of the knife group,   to effectively ensure the straight angle of the edge of the cut sheet,   reducing waste time manually adjust the angle of error rate and   adjustment.


Main technical parameter:



ModelHSC-1400/1700
Reference weight of cutting-paper50-550g
Model of cutting paperThe up knife cut reciprocally and the down knife is fixed
Cutting accuracy±0.3mm
Gross weight11,000kgs/13,000kgs
Total power28kw
Power consumptionAC380V/220v×50HZ
Maximum cutting speed400cuts/min
Maximum cutting meter speed300m/min
Cutting length range400~1450mm/400-1650mm
Paper-piling height1400mm
Maximum scroll diameter1800mm(71”)Max
Maximum paper-cutting width1400/1700mm
The format of slitting 2sheet
The request for air compressorMax.5.5kg/cm2×5m3/min


Structural analysis of Fig:
