Automatic paper roll sheeter machine the high-quality nodular cast iron for the integration of design and
through precision machining, improves the service life of the bearing parts,400 cuts/min low failure rate,
and high yield efficiency.
1.Paper roll sheeter machine wall through finite element analysis, mechanical vibration analysis and
optimization of the frame, uses the high quality nodular cast iron for the integration of design, and
through precision machining, perfect the resonance phenomenon between the transmission components,
More stable in high speed operation, improve the service life of the bearing parts.
2.Upper knife roller has the British cutter method to effectively reduce the load and noise during paper
cutting, and to extend the life of the cutter. The upper knife roller is welded with stainless steel for precision
machining, and is dynamically balanced during high-speed operation. Lower tool seat is made of cast iron
integrally formed and cast, and then precision processed, with good stability
3.Three sets of pneumatic type slitting unit to have a high speed, smooth and powerless trimming and
slitting, with quick adjustment and locking. High rigidity knife holder is suitable for 300m/min high speed
slitting .
4.Touch screen controls are used to set and display sheet size, count, cut speed, delivery overlap, and more.
The touch screen controls work in conjunction with a Siemens PLC.
HSC-D cutter uses the advanced technology of Taiwan and Britain.
Driven by AC servo motor.
Cutting paper stably in high speed.
Germany precise bearing and cutting knife assure the high precision.
Touch interface is simple to operation.
Reasonable inflection device ensures smooth of paper.
This machine is widely used in paper making, paper products processing and printing industry, and will
improve efficiency and increase benefit for your company.
It's achievable for casting body to realize higher speed and more stability, thus significantly improve the
service life of parts.
HSC-D is a simple but highly effective model which can reduce cost and increase benefit for your company.
1.High-precision single knife cutting machine
2.Prismatic adjustment system for paper
3.Middle slitting and waste collection system
4.Automatic counting and label inserting equipment
5.Paper transporting equipment
6.Automatic paper trimming and collecting machine
7.Electrical controlling system
8.Servo driving motor
9.Double lime pneumatic shaft less paper rack
|
|

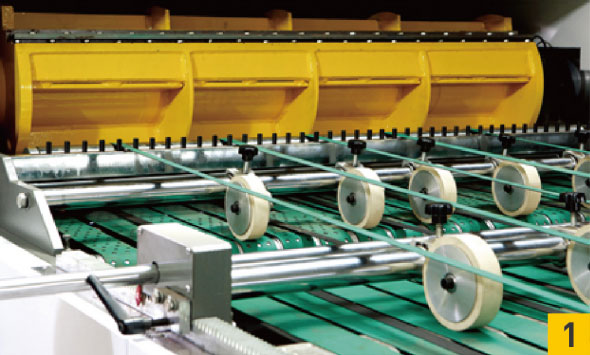

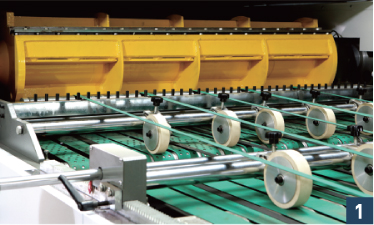

CUTTING UNIT The upper knife uses British cutter method to reduce the load and noise and extend cutter life.The upper knife roller is processed by steelwelding and dynamic balance adjustment; effectively reduce vibration and noise of the high-speed operation.The lower knife: knife holder is made by cast iron integrally molded casting and precise processing with good stability. The reverse knife is made of special alloy steel with high precision processing; long life blade is easily adjustable. | CONVEYING OVERLAP PART A precision structure can adjust the synchronous deceleration wheel, easy to operate, it's effective to protect surface of paper, so there will be no scratching on surface, and also will not have the facula |
 |  |

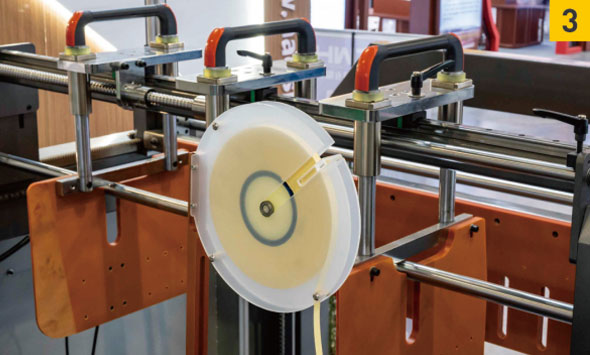

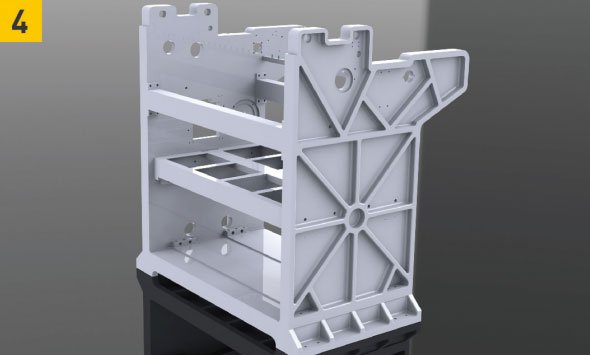

AUTO COUNTING AND TAPINSERTER 1.Type: lnsert after counting precisely 2.Function: A.After inputting number of paper pieces in HMl,then it can work B.Refll defective product | CASTING BODY The main machine wall is optimized through fnite element analysis, to eliminate mechanical resonance ofall transportation parts, use the high quality nodular cast iron by integration design, and through precise processing, make the machine running more stable, improve working life of bearing parts. |
 | Upper knife roll has the British cutter method to reduce |

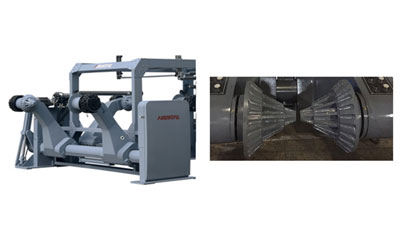

Dual position shaftless pivoting arm unwind stand1）Max Reel Diameter: 1800mm2）Max Reel width: 1100mm/1400mm/1700mm/1900mm3）Min Reel width: 300mm4）Core size : 3"6"12" ( optional Mechanical chuck）5）Hydraulic driving : 3.5kw6）Clip arm move forward or back driven by hydraulic7）Clip arm up or down driven by hydraulic8）Pneumatic brake system |  |
 | Slitting knifeThree sets of pneumatic type slitting unit to have a high speed,smooth and powerless trimming and slitting,with quick adjustment and locking. High rigidity knife holderis suitable for 300m/min high speed slitting . |
Motorized double decurler |  |

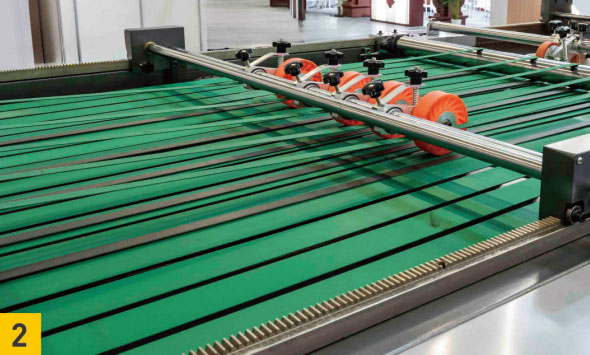

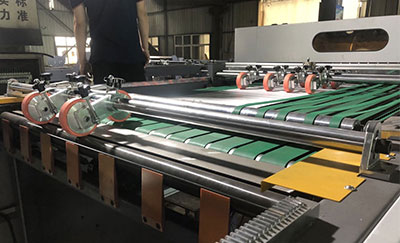

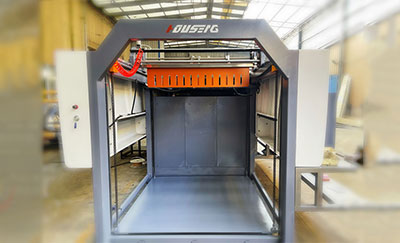

 | Delivery and Auto Jogger SystemAutomatically goes down when paper piling up to a certain height.(Chain type, automatic up and down, more stable operation and service life)Conveyor system with mult-stage: from high speed to low speed.First to separate the cut paper quickly, and then overlap the paper,collect and pile the paper. |

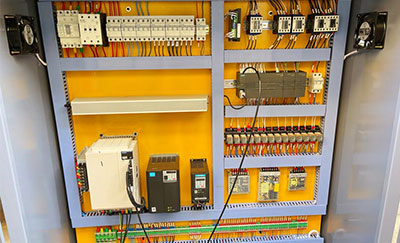

Electronic control |  |
 | Delivery and Auto Jogger SystemThe stacker table has three sides shake finishing function,the side of the motor to drive the paper, the paper, |

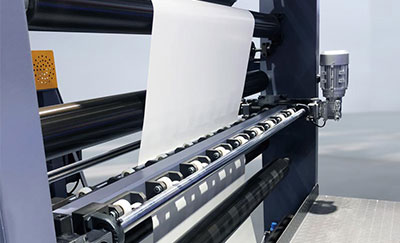

Transport departmentThe fast/slow speed belt is controlled by the stepless frequency converter,which automatically tracks the knife speed and adjusts the belt speed,so that the paper can be perfectly overlapped. |  |
 | Auto counting and Automatic marking |

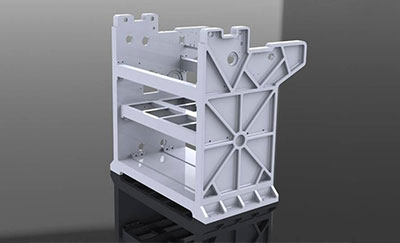

The main machine structure (Knife holder and holder stand)The main machine wall through finite element analysis,mechanical vibration analysis and optimization of the frame,USES the high quality nodular cast iron for the integration of design,and through precision machining,perfect the resonance phenomenon between the transmission components,make the operation more stable, improve the service life of the bearing parts. Driving Motor system |  |
| Model | HSC-1100D/1400D/1700D/1900D |
| Reference weight of cutting paper | 50-550g |
| Model of cutting paper | The up knife cut reciprocally and the down knife is fixed |
| Cutting accuracy | ±0.3mm |
| Gross weight | 14000kgs/16000kgs |
| Total power | 28kw |
| Power consumption | AC380V/220V-50HZ |
| Maximum cutting speed | 400cuts/min |
| Cutting length range | 400m/min |
| Cutting length range | 400-1450/400-1650mm |
| Paper piling height | 1400mm |
| Maximum scroll diameter | 1800mm |
| Maximum paper cutting width | 1100/1400/1700/1900MM |
| The format of slitting | 2 sheet |
| The request for air compressor | Max 5.5kg/cm2×5m3/min |
