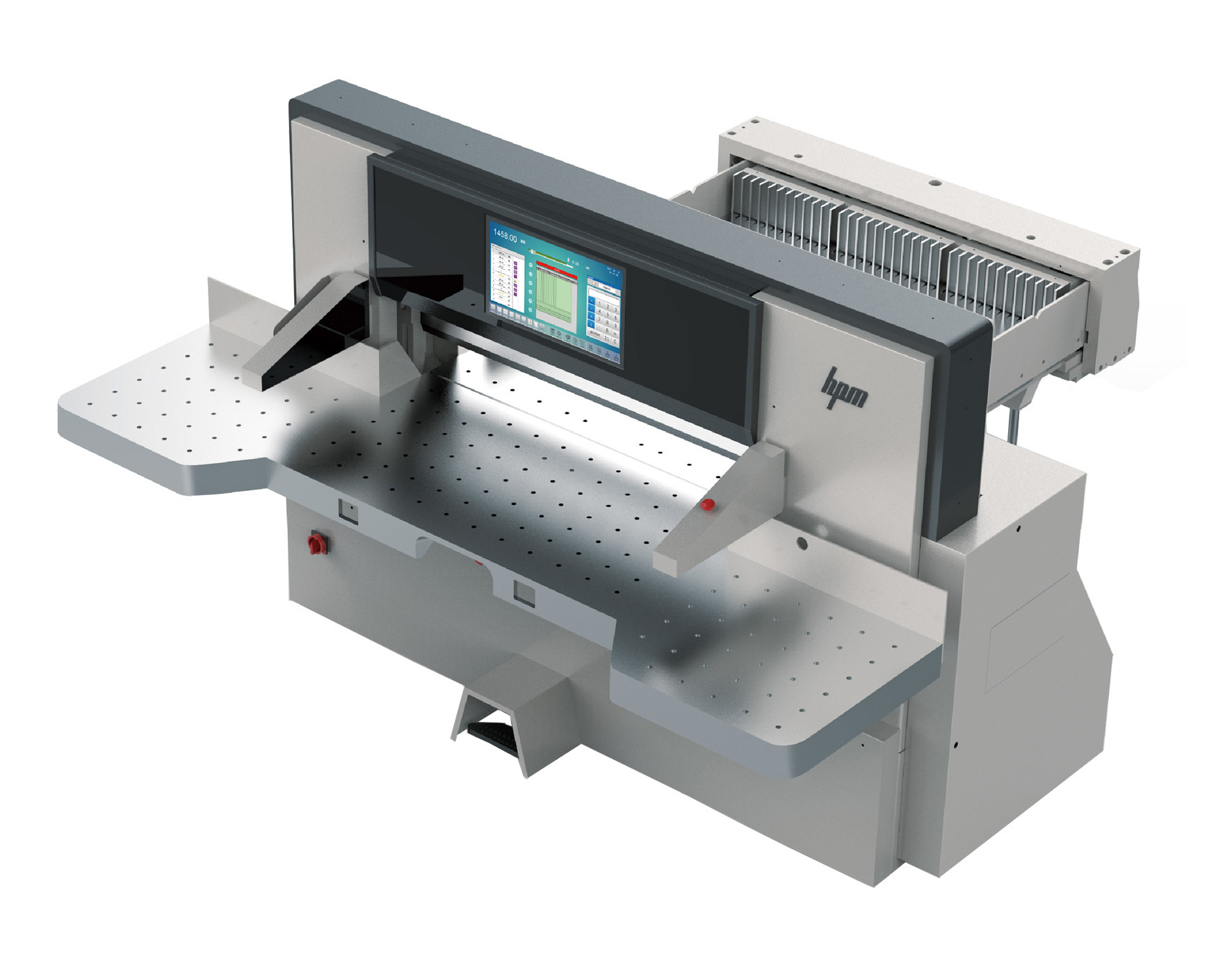

HPM M15/M21 Program Control Paper Cutter

78 92G 115G 130G 137G 168G 188G


◆The up-to-date 15.6" widescreen LCD, full touch screen; Siemens PLC control.

◆Eight languages to choose.

◆Metric system and British system two units, shows the size front of knife and back of knife.

◆Stepless speed adjustment function with latest technology, to make the cutting speed from 30 to 48 times within 1 minute, no need to change knife angle for different cutting material.

◆Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 18m/min.
◆The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.
◆With USB, transmit data, to convenient operator make programming and arrangement via PC.
◆Equipped with fault diagnostics and non-repreat safety guards. It can detect all the position switch state, and dynamic prompt switch failure, make the machine more convenient maintenance
◆The backgauge is driven by a Panasonic servo-motor with four speed levels.
◆Use Italy oil pump and hydraulic system
◆With automatic pushing paper function, the distance can be adjusted.
◆Adjustable time delay for knife activation, accurate and convenient.
◆Uses icons to show operational functions, which are simple and user friendly.
◆With full automatic cutting function..The backgauge and knife movements can be monitored on the screen.

Machine Features:

◆Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
◆Clamp press paper stack through hydraulic system, the spring re-position.
◆Worm gear drive mechanism, hydraulic clutch, mechanical brake.
◆WESSEL hydraulic system from Germany (optional), Italy oil pump.
◆Switzerland ABB main motor(optional).
◆One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.
◆Import ball screw with double linear guides to drive backgauge.
◆Whole sealing safety guard for rear work table (optional).
◆Germany LEUZE infrared protection device(optional).
◆Main electronic units are from French TE and Japanese ORMON famous international brands.

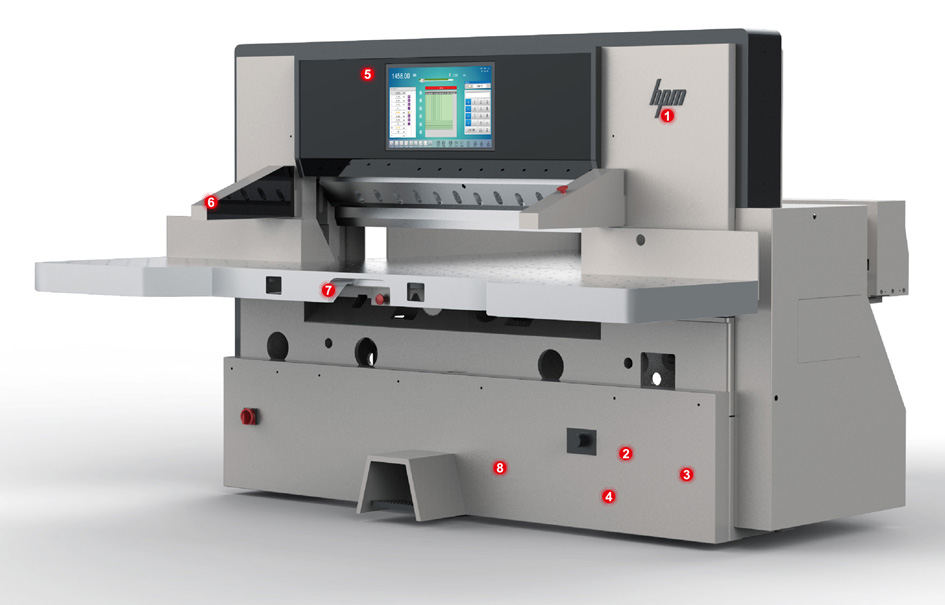

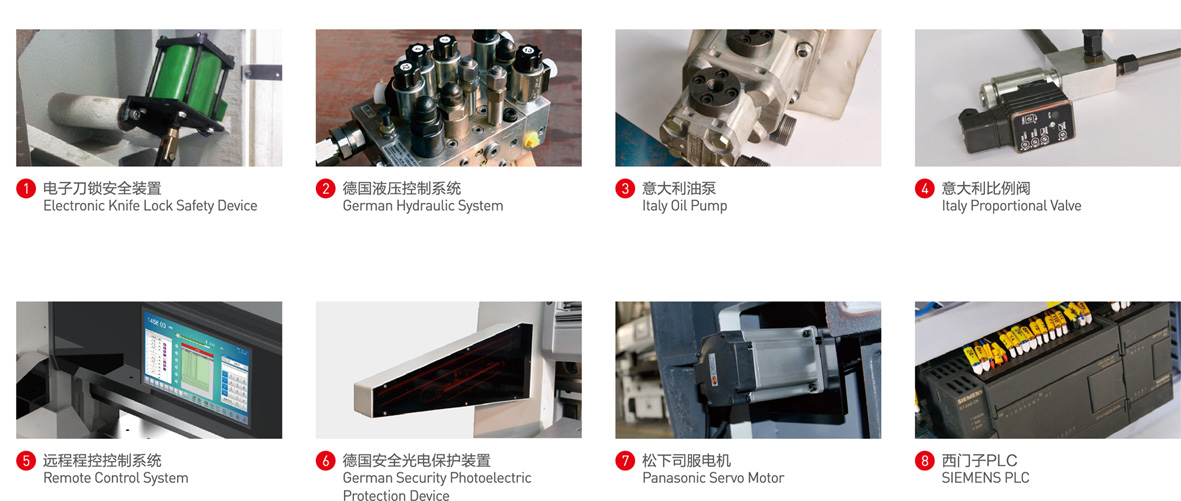

Detail diagram:



Technical parameter:

Max cutting    widthcm7892115130137168188
Max cutting    lengthcm7892115130145168188
Max cutting    heightcm121216.516.516.516.516.5
Min cutting size    without false clamp platecm2.52.533333
Min cutting size    with false clamp platecm5999999
Front table    lengthcm69.763.27273737575
Max clamp    pressureN35000350004000040000450006000070000
Cutting speedT/Min45454646464646
Main motorKW334445.55.5
Gross powerKW4.34.35.855.855.858.48.4
Net weightKg2200220037003900410062006600
Packing sizecm228*160*185228*140*185290*175*212290*175*212290*175*212360*205*220
