1. Very stable steel frame design;

  2. Attractive design

  3. Under run option for pallet truck

  4. Closed, single part,strong vibrating table pallet

  5. Maintenance-free slewing ring and cylinder bearing

  6. Double air nozzles with noverload slipping clutch can be controlled at operating console continuously

  7. Stop-forward reverse run of the air nozzle for removing single bow

  8. Strong radial blowers with large air quantity

  9. Powerful slipping device with direct drive

  10. Stable collision and maintenance-free side stop with very large travel

  11. Impact-free dropping of the ventilated stack through damped swivel cylinder

  12. Hydraulic unlocking of the lifting frame

  13. Optimal working height through relocation of pivot point

  14. Highest operating comfort through two operating consoles.

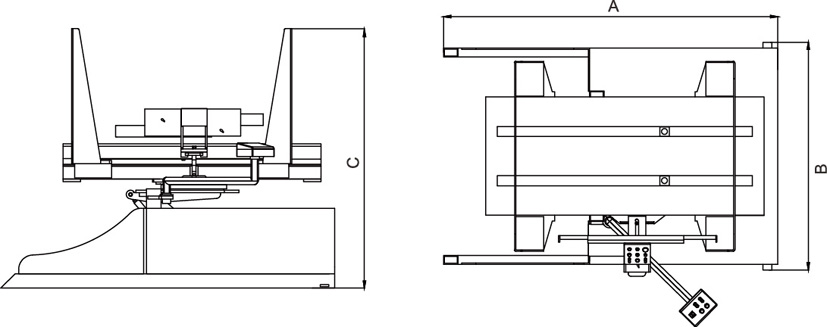

Technical parameter:


Max format1200*780mm
Max opening width1790mm
Min opening width690mm
Plate size1290*800mm
Lifting capacity1800kg
Gross power8kw
Packing size2440*1880*2140mm
