It is mainly used for cutting material of hardboard, industrial cardboard, grey cardboard, etc. with high precision and production capacity. It is necessary for hardcover books.
| Model | FD-KL1300 |
| Cardboard width | W<1300mm L<1300mm W1=100-450mm W2=55-450mm |
| Cardboard thickness | 1～3mm |
| Motor power | 1.5kw/380v 3phase |
| Air supply | 10L/min 0.6Mpa |
| Machine weight | 1100kg |
| Machine dimension | L1260×W1700×H1050mm |
We don’t provide air compressor.

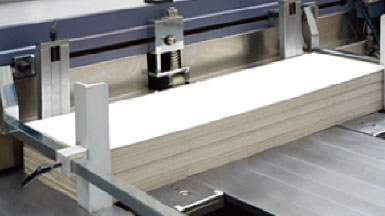

Non-stop bottom-drawn cardboard feeding device

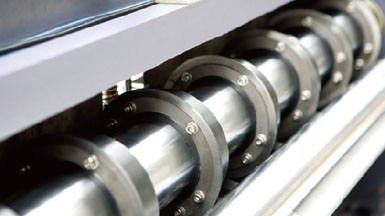

Quality alloy steel blade
