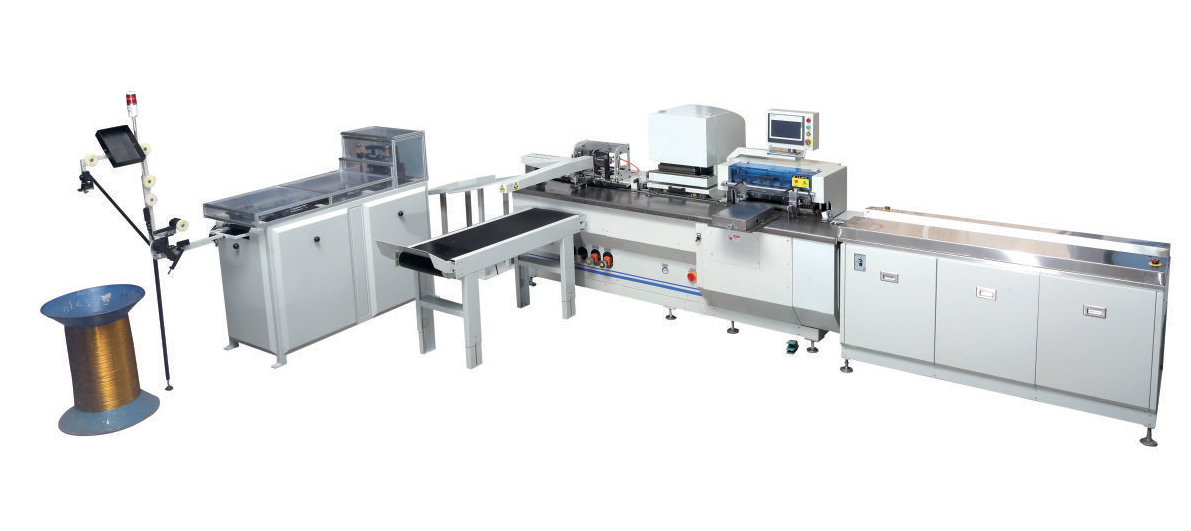

Double wire punching and binding machine could be used for mass-produvtion of desk calendars,wall calendars,exercise-books,wire-o books etc.
It include paper separation, punching, closing and collection all in one machine and with the optional of collator, calendar hanger inserting decice, hard-cover manual punchi, it can improve more production efficiency for customers.
| Model | PBW-580 | PBW-580S |
| Feature | punching aligning closing | feeding punching aligning closing |
| Binding range | 580mm(punching edge)×800mm | 580mm×360mm with feeding 580mm×800mm without feeding |
| Ring size | 1/4-3/4 | 1/4-3/4 |
| Speed | up to 1100 books/h | up to 1500 books/h |
| Power | 380V 3 phases | 380V 3 phases |
| Weight | 1000kg | 1150kg |
| Size | Pitch | Wire diameter | Thickness | Hole(mm) |
| 1/4 | 3:1 | ￠6.4mm | 3.5mm | 4×4 |
| 5/16 | 3:1 | ￠7.9mm | 5mm | 4×4 |
| 3/8 | 3:1 | ￠9.5mm | 6.5mm | 4×4 |
| 7/16 | 3:1 | ￠11.1mm | 8.5mm | 4.5×4.5 |
| 1/2 | 3:1 | ￠12.7mm | 10mm | 4.5×4.5 |
| 9/16 | 3:1 | ￠14.3mm | 11.5mm | 4.5×4.5 |
| 5/8 | 2:1 | ￠15.9mm | 13mm | 5×5 |
| 3/4 | 2:1 | ￠19.1mm | 16mm | 5×5 |
