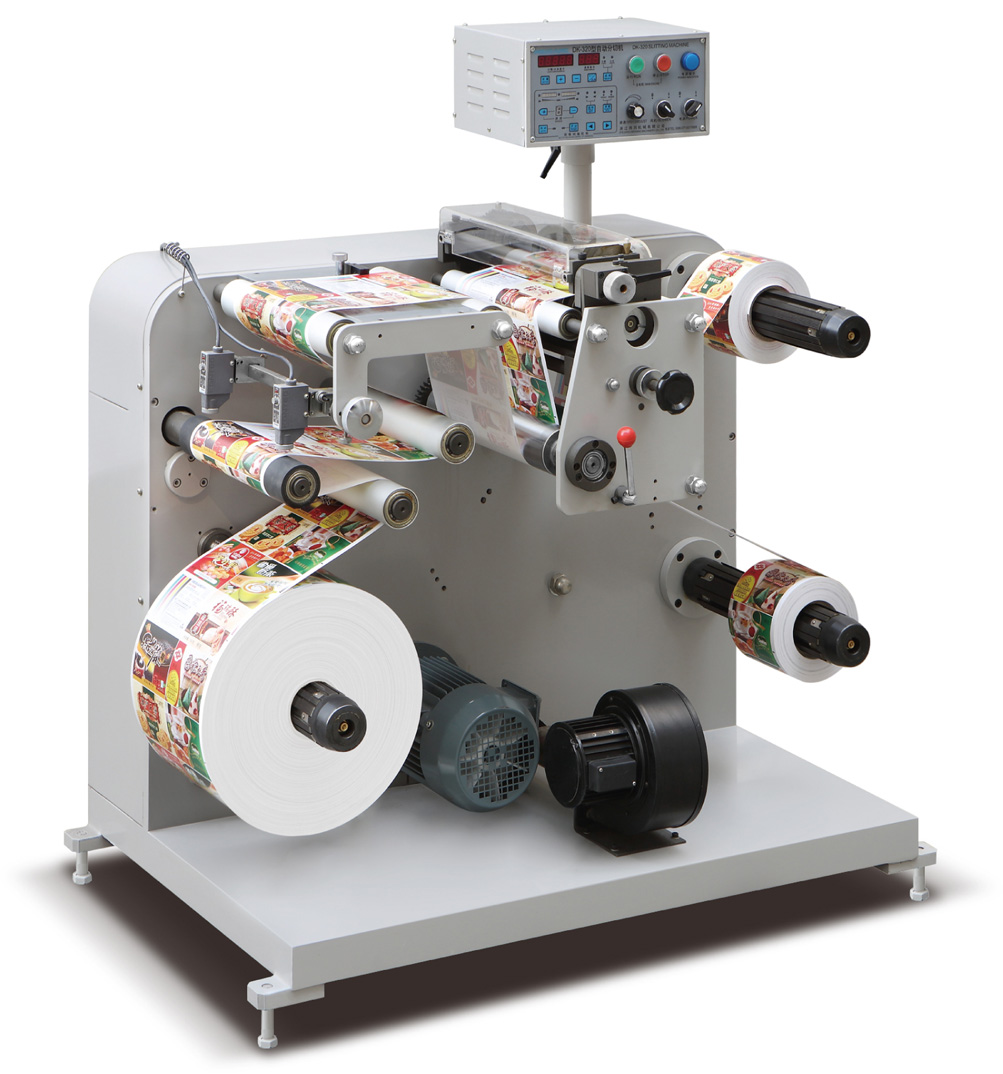

DK-320 auto slitting machine is the associated one for auto die-cutting machine, which is used for small size reel material slitting. It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
| Slitting speed | 75m/min | ||
| Max web width | 320mm | ||
| Max unwinding diameter | 500mm | ||
| Max rewinding diameter | 480mm | ||
| Machine weight | 400kg | ||
| Dimension | 1100*900*1300mm |
