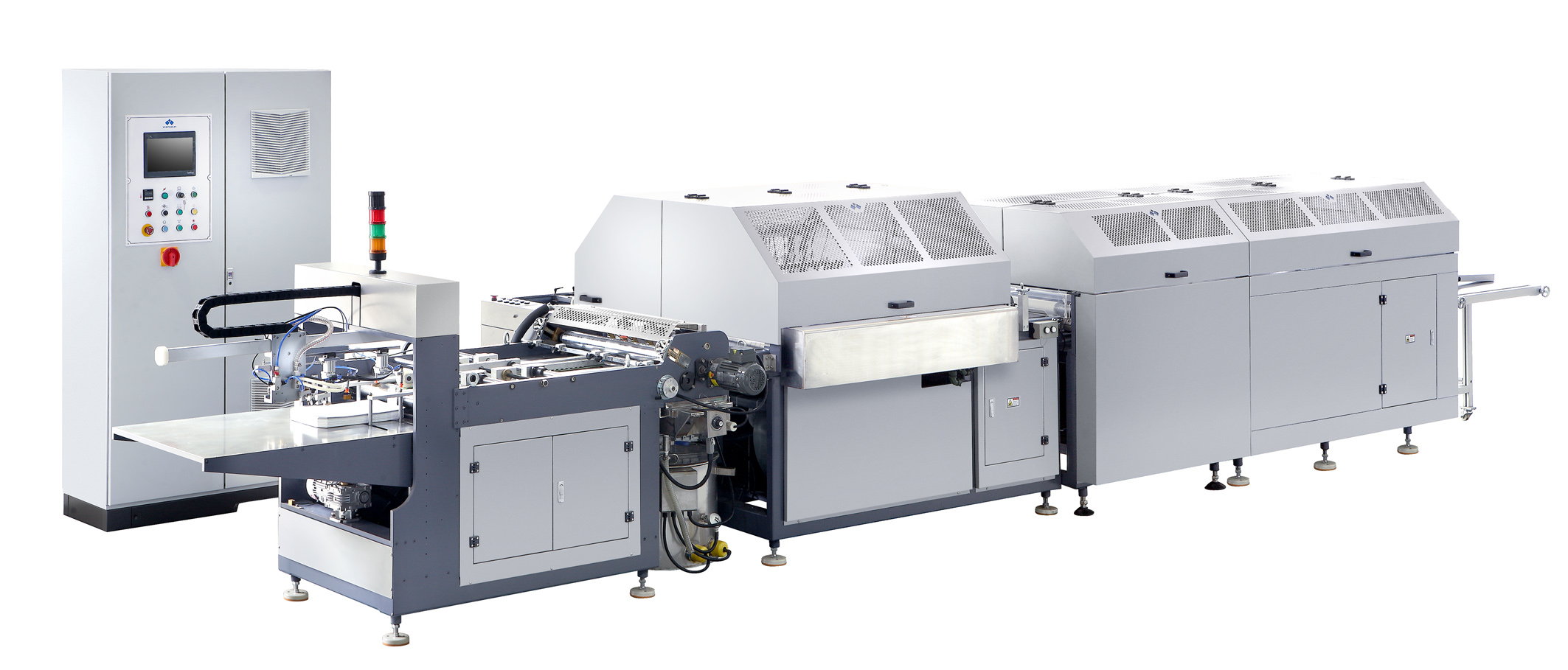

CM540 AUTOMATIC HIGH SPEED CASE MAKER

Introduction:



It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process (Contain Irregular case folding)
There are features of accurate and quick positioning, and beautiful finished products etc.
It is used to make hard covers, notebook covers, desk calendars, hanging calendars, book-type boxes, files, irregular covers and Irregular case folding etc.



Technical parameters:



ModelCM540A
Cover size(W×L)MIN: 100*200mm MAX: 540*1000mm
Paper size(A×B)MIN: 130*230mm MAX: 570*1030mm
Paper thickness 100-200g/m2
Cardboard thickness 1-3mm
Spine size(S)10mm
Spine thickness1-3mm
Folded paper size10-18 mm
Cardboard number6pieces
Precision±0.50mm
Speed up to 25pcs/min
Motor power11KW 380v 3phase
Air supply0.6Mpa 10L/min
DimensionL8500*W2300*H1700mm
Machine weight3900kg
Cover type1/2/3/4/5/6/7/8


Remark:

1.The Max. and Min. sizes of the boxes are subjected to the sizes and quality of the paper.
2. The speed of the machine depends on the sizes of the boxes.
3. We don’t provide air compressor.

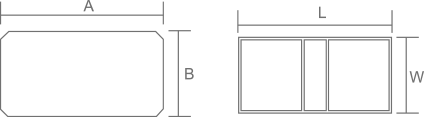

Technical parameter diagram:

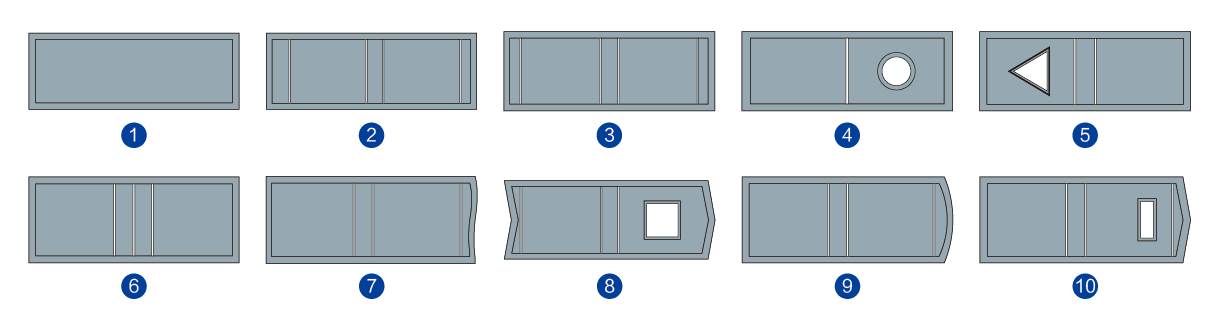

Cover type:

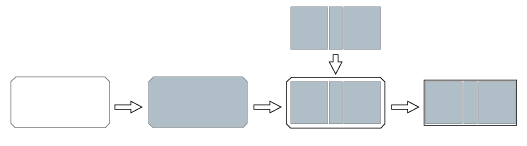

Production flow:



CM-540A Case-maker.png



Machine advantages:

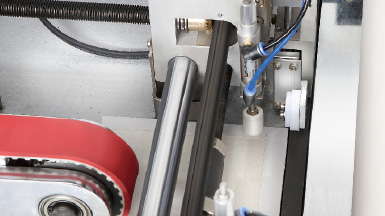

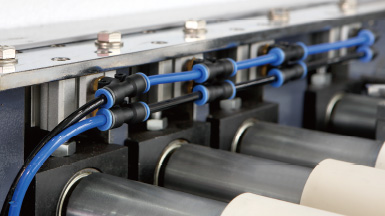

Adopt original folding technology which solves the technical difficulties of irregular case in the field.Pneumatic pressure control. convenience and stability Revolving touch panel, easy operation

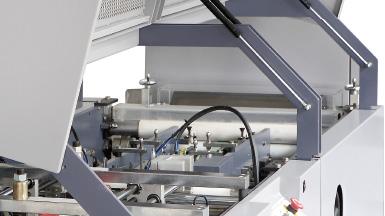

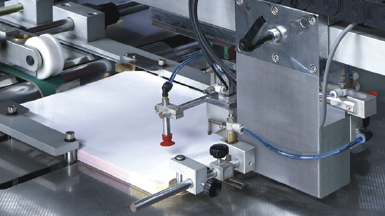

Fully pneumatic controlled post-sucked type paper feeder is easy to maintenanceNew CE standard safety cover, open by pneumatic spring
