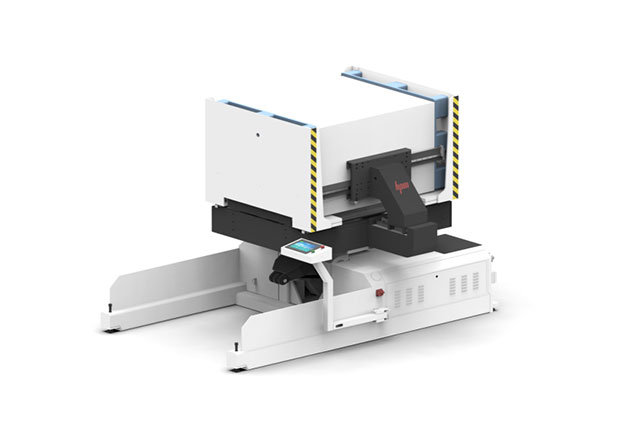

1.Pile turner can be used for paper turning, blowing, foreign matter removal, drying, alignment and
paper shaking. It is applicable to various kinds of gram weights and different kinds of paper.
2.Based on our years of experience and constant technological innovation, we could ensure the advancement and stability of the product. With a special body design, the product is very stable and durable.
3.paper pile can be rotated automatically thanks to the efficient servo motor and reducer. It could improve the working efficiency of paper piling significantly with the help of enhanced hydraulic system.
| Model | FZ130A | FZ150A | FZ170A |
| Features | Turn over rotate with air jogger | ||
| Plate width | 1450mm | 1650mm | 1850mm |
| Max paper size | 1300*1000mm | 1500*1150mm | 1700*1300mm |
| Min paper size | 500*400mm | 600*500mm | 600*500mm |
| Max layer height | 1600mm | 1680mm | 1680mm |
| Min layer height | 800mm | 800mm | 800mm |
| Max carry capacity | 1800kg | 2300kg | 3000kg |
| Power | 18kw | 30kw | 40kw |
| Net weight | 3900kg | 4950kg | 5500kg |
| Packing size | 317*250*203cm | 355*280*211cm | 378*293*211cm |
